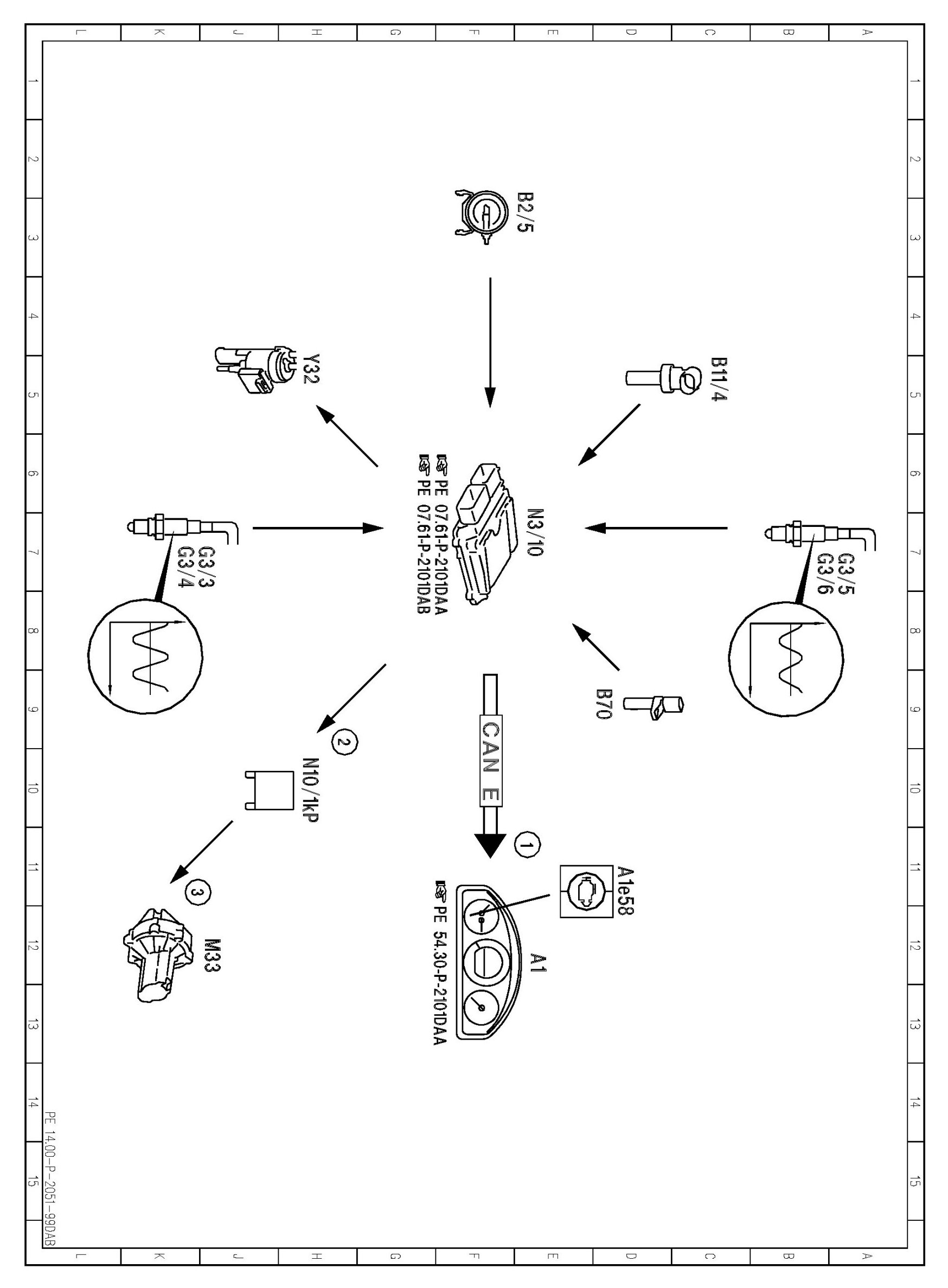

PE14.00-P-2051DAB Electrical Function Schematic For Exhaust Treatment

PE14.00-P-2051DAB Electrical Function Schematic For Exhaust Treatment
ENGINE 272, 273 in MODEL 212
- except engine 272.98

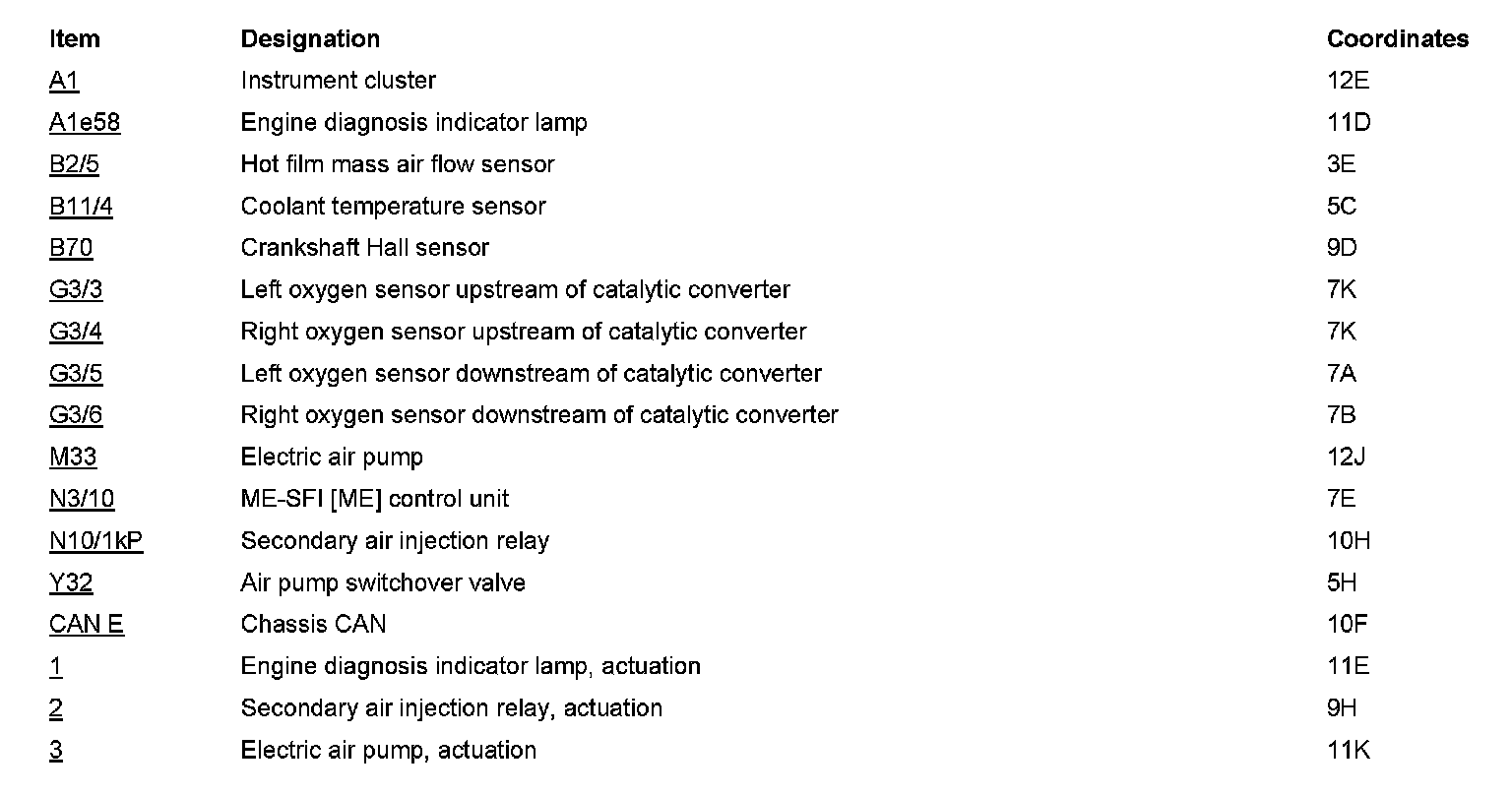

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
