AR91.12-P-1730ES Remove and Install Locking Mechanism For Folding Rear Seat Backrest




AR91.12-P-1730ES Remove And Install Locking Mechanism For Folding Rear Seat Backrest

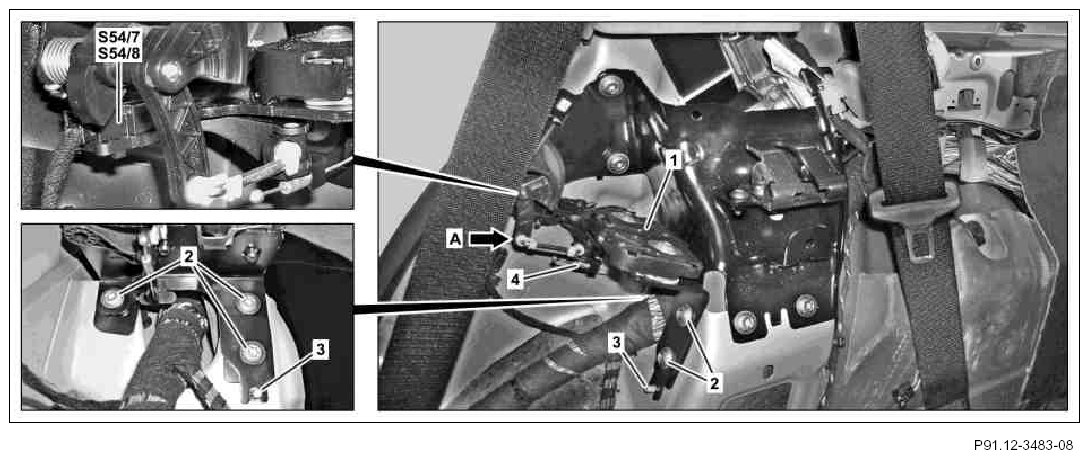

Shown on the right rear seat backrest, with side bolster and wheel well paneling removed







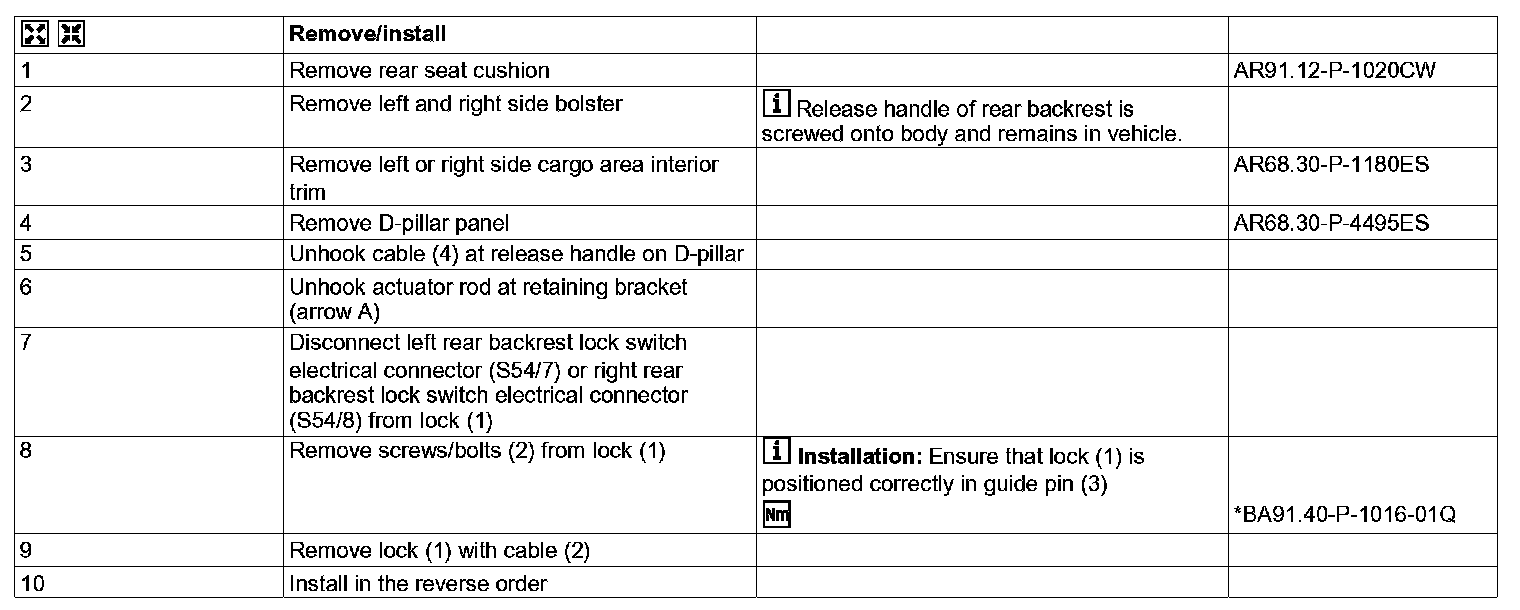

1 Lock
2 Screw
3 Guide bolts
4 Cable
S54/7 Left rear backrest lock switch
S54/8 Right rear backrest lock switch
