GF77.20-P-0001-03FL Electric Tilting/Sliding Roof (SR), Block Diagram



GF77.20-P-0001-03FL Electric Tilting/Sliding Roof (SR), Block Diagram
- with CODE (414) Power glass tilting/sliding roof

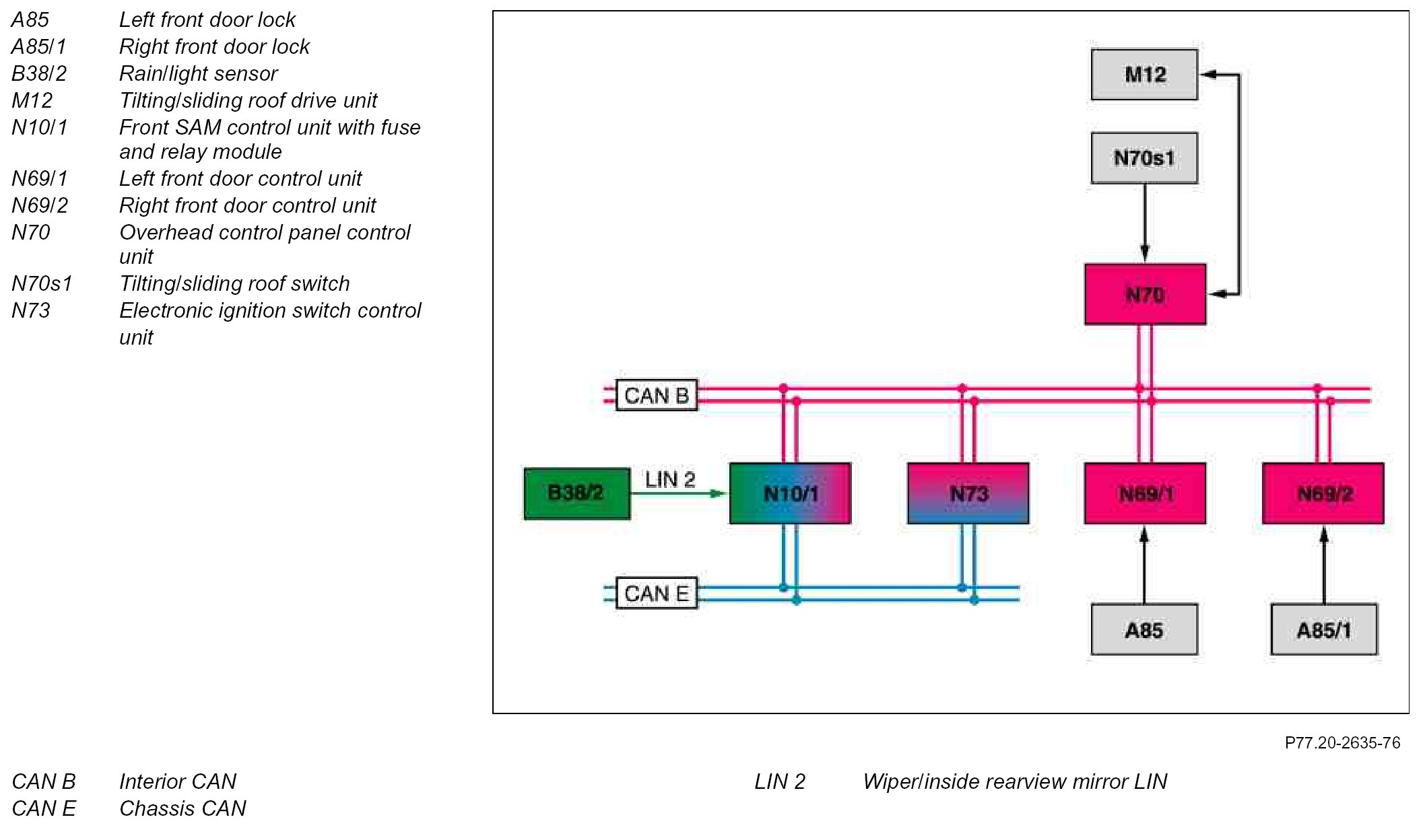

Component Identification:
