Power Trunk / Liftgate Control Module: Diagrams

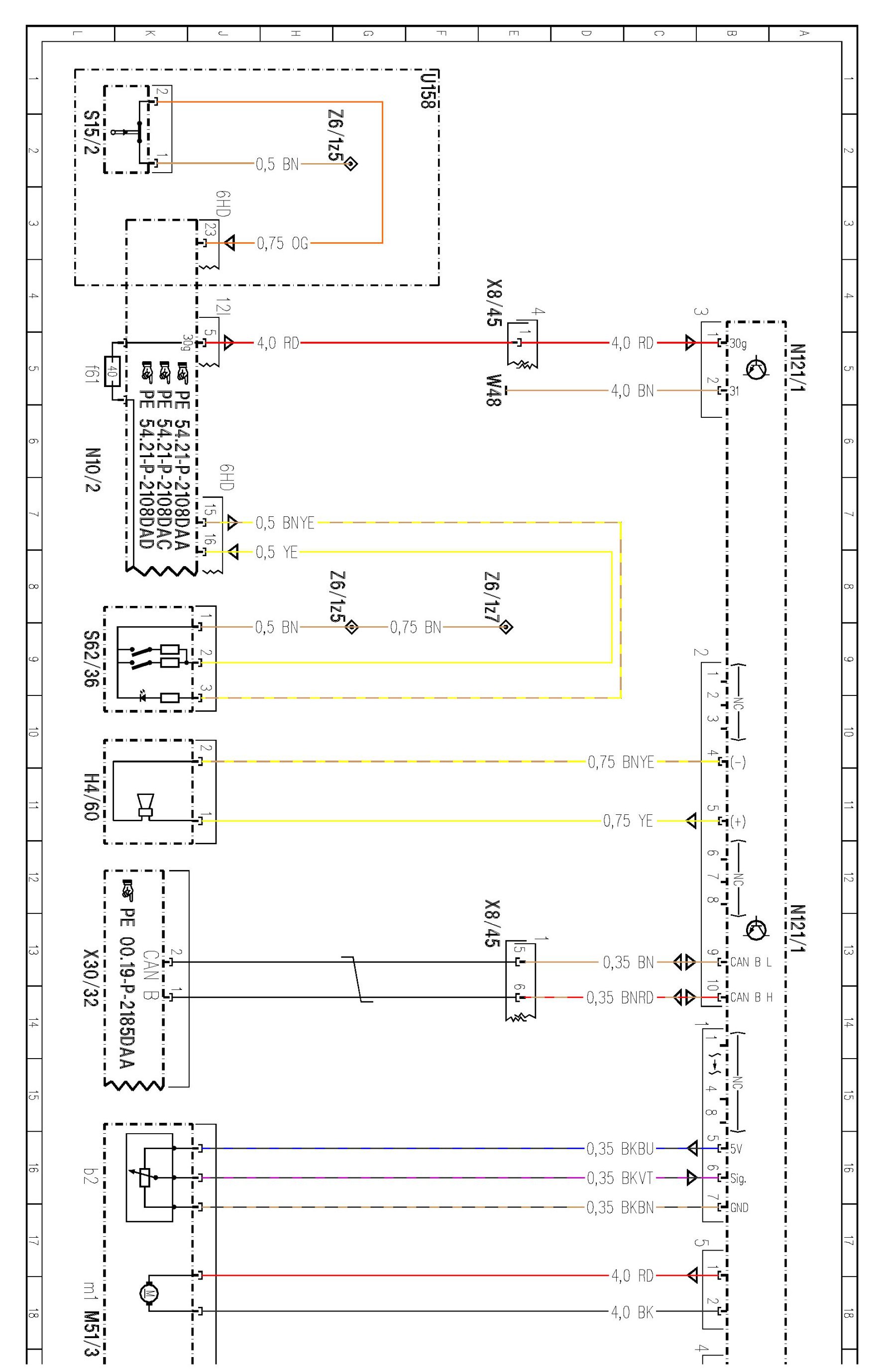

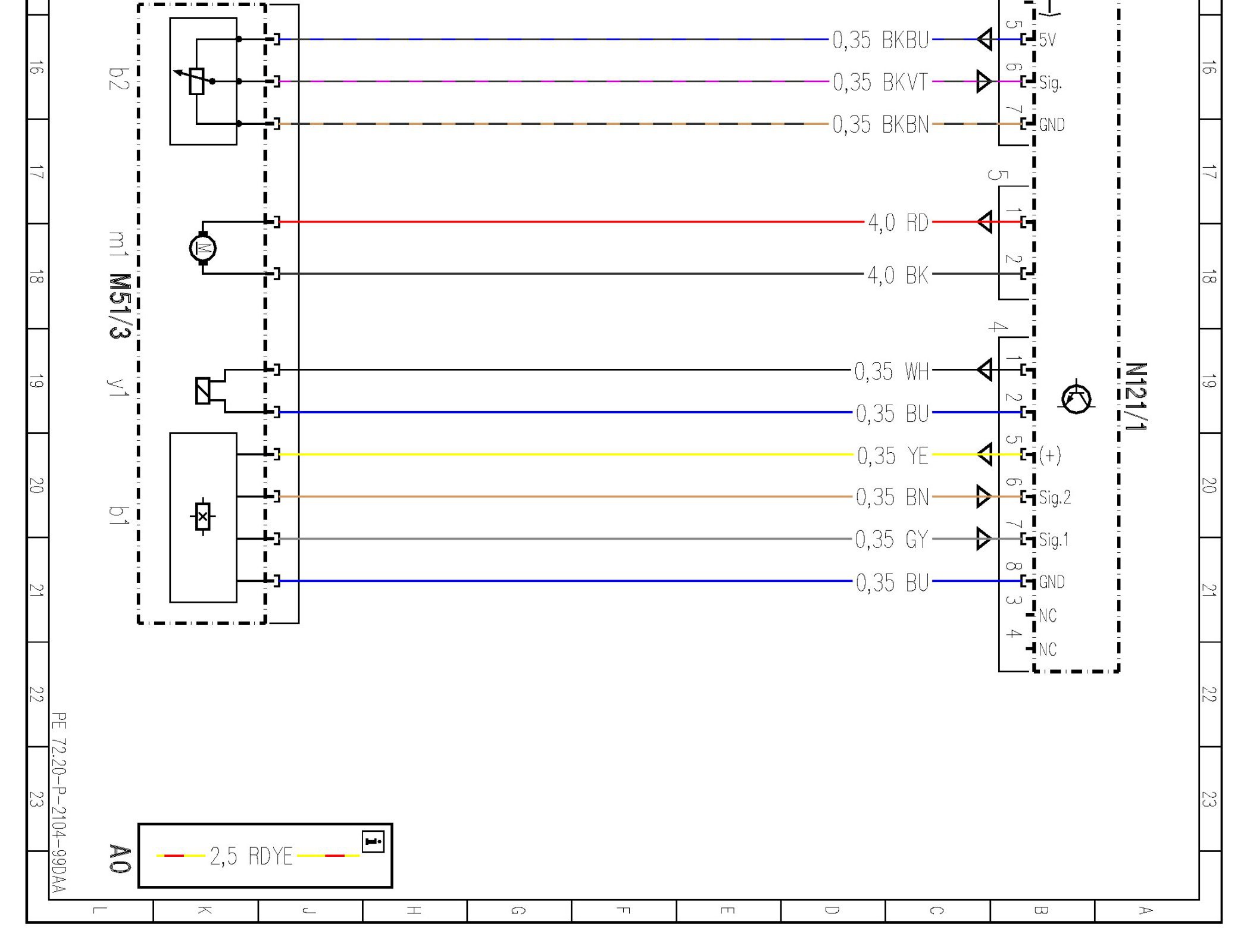

PE72.20-P-2104DAA Liftgate Control Unit
MODEL 212.2

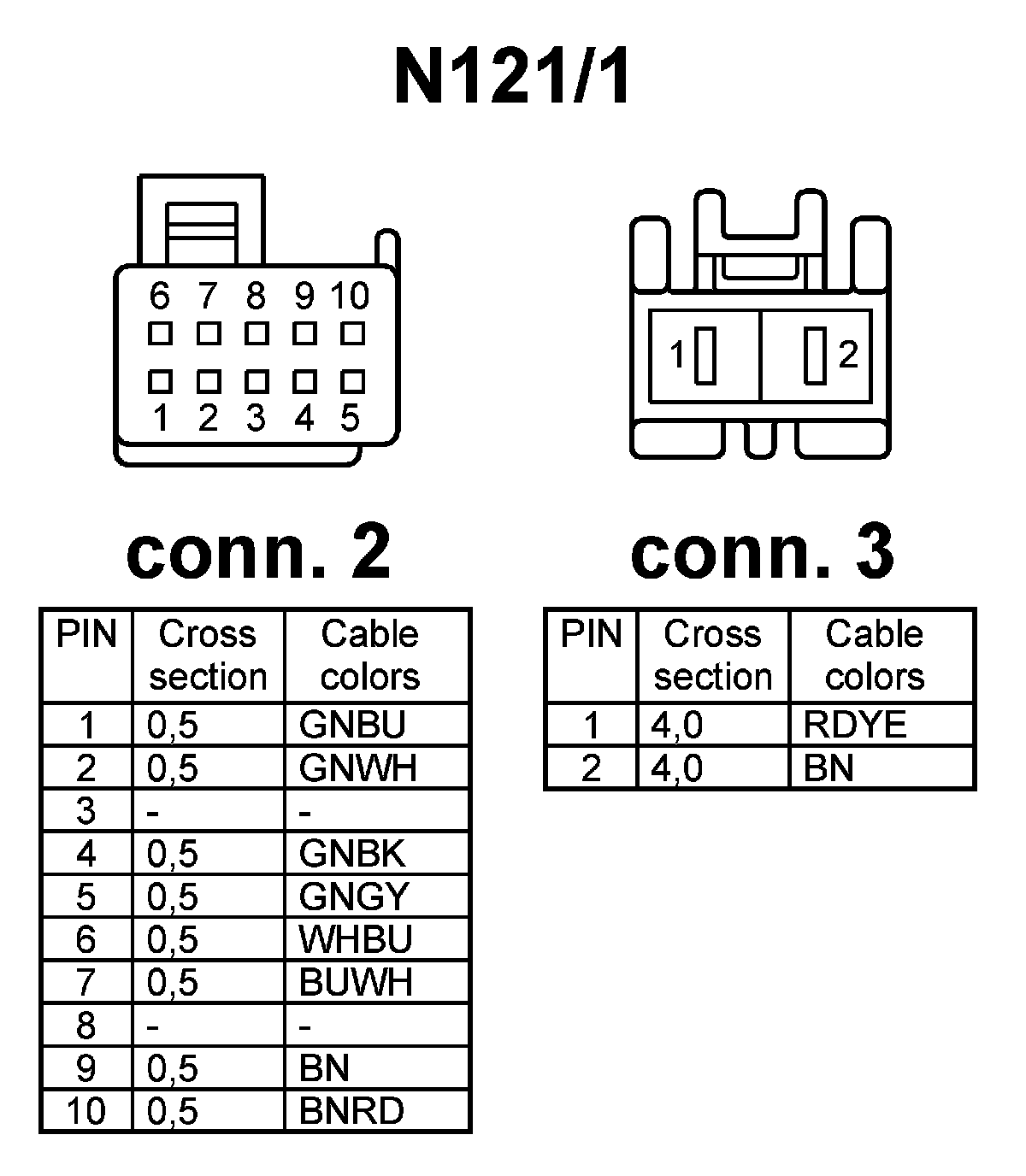

- control unit N121/1






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
