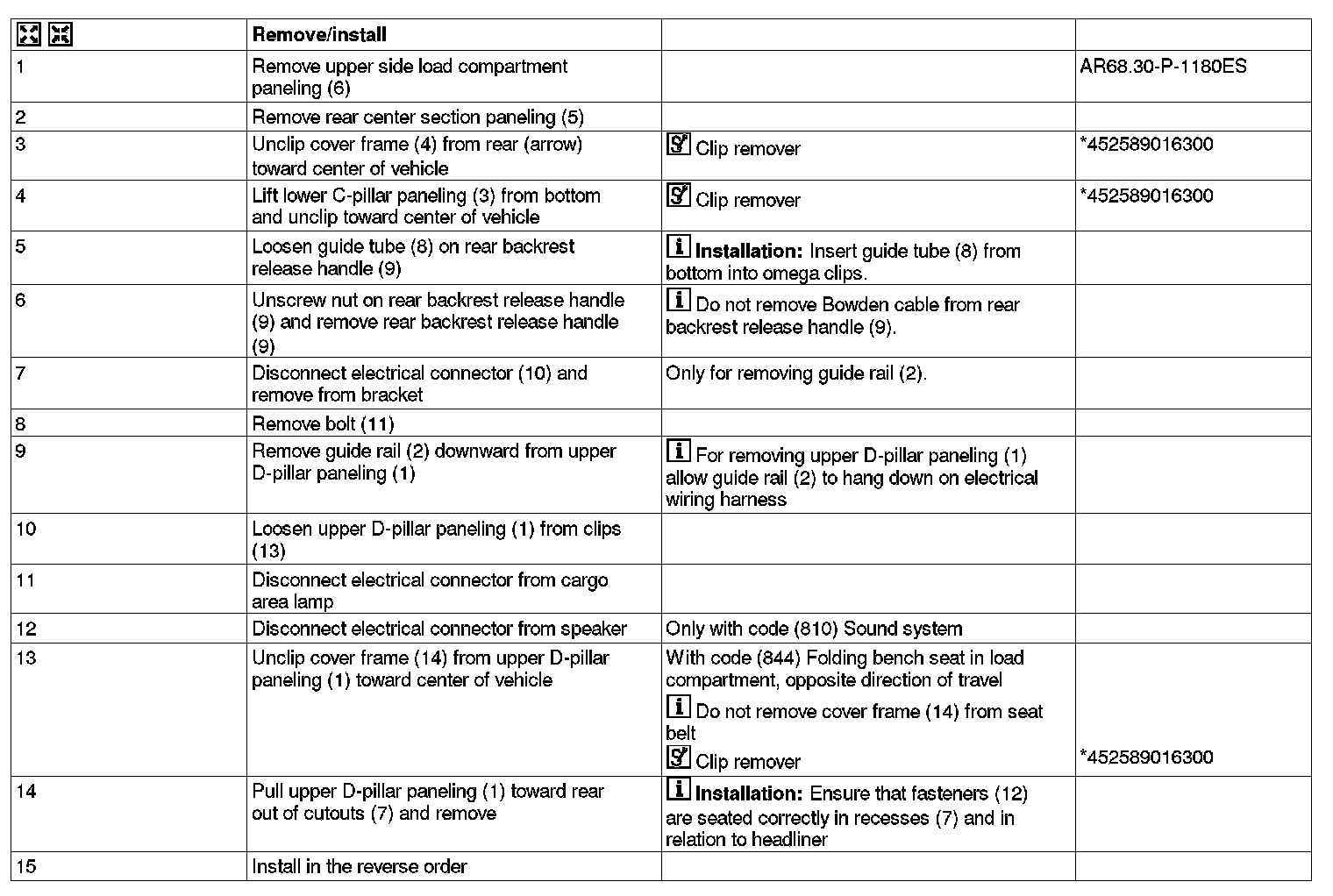

AR68.30-P-4495ES Remove/Install Paneling on D-Pillar

AR68.30-P-4495ES Remove/Install Paneling On D-pillar

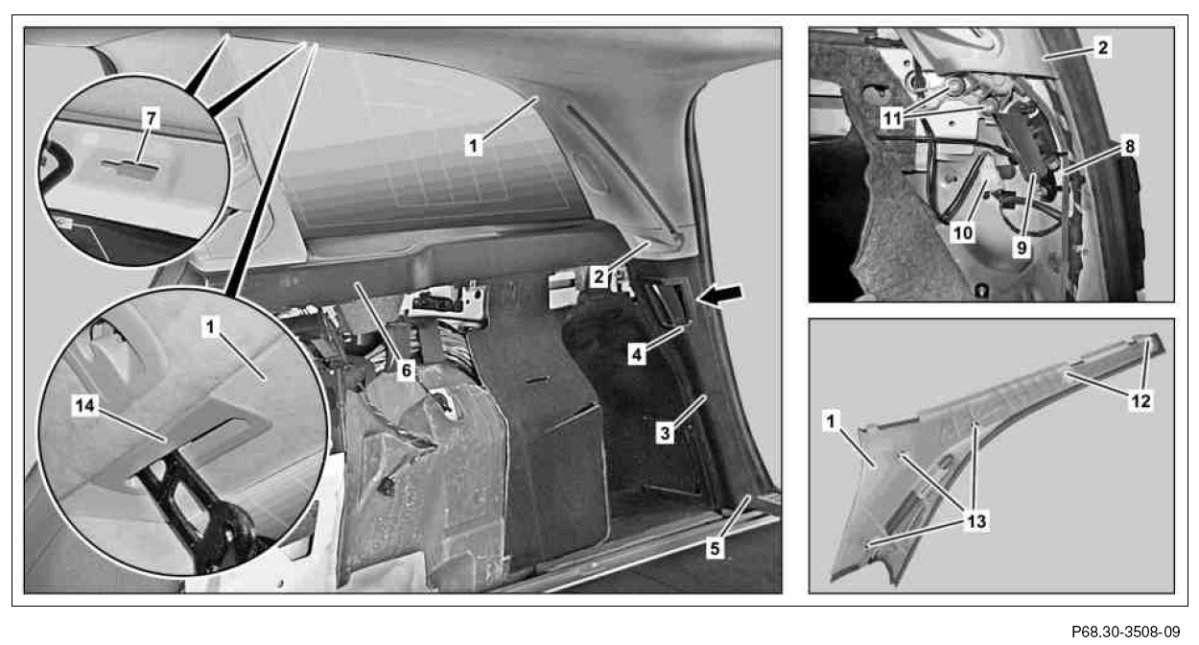

Shown on right side of vehicle







1 Upper C-pillar paneling
2 Guide rail
3 Lower D-pillar paneling
4 Cover frame
5 Rear center section paneling
6 Upper side load compartment paneling
7 Cutout
8 Guide tube
9 Rear backrest release handle
10 Electrical connector
11 Bolts
12 Fixtures
13 Clips
14 Cover frame (with code (844) Folding bench seat in cargo area, opposite direction of travel)







452 589 01 63 00, Snap-release tool
