AR68.30-P-4490ES Remove/Install Trim At C-Pillar

AR68.30-P-4490ES Remove/Install Trim At C-pillar

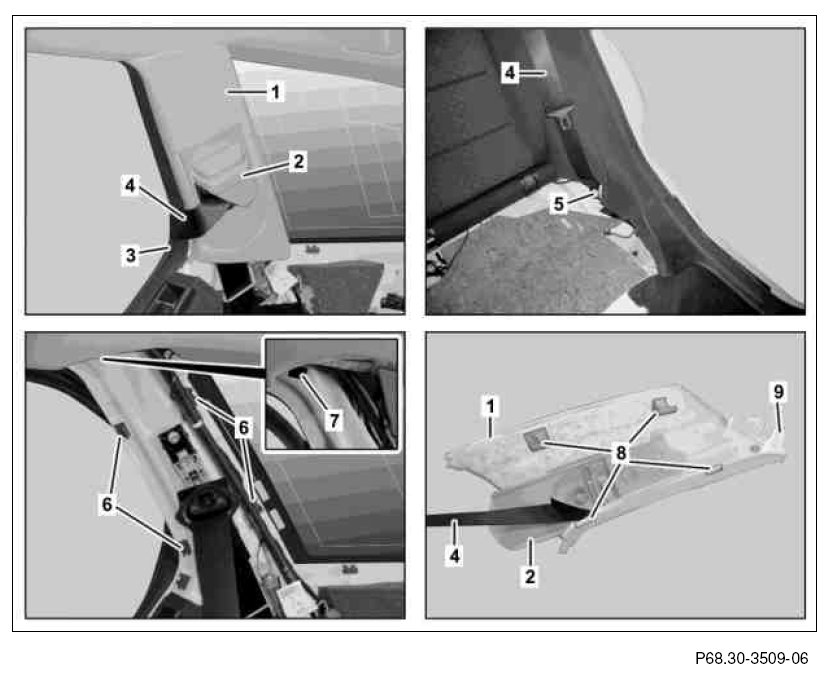

Shown on right side of vehicle







1 C-pillar paneling
2 Seat belt height adjustment mechanism
3 Edge guard
4 Seat belt
5 Belt end fitting
6 Clips
7 Cutout
8 Supports
9 Fixing










110 589 03 59 00, Mounting wedge
