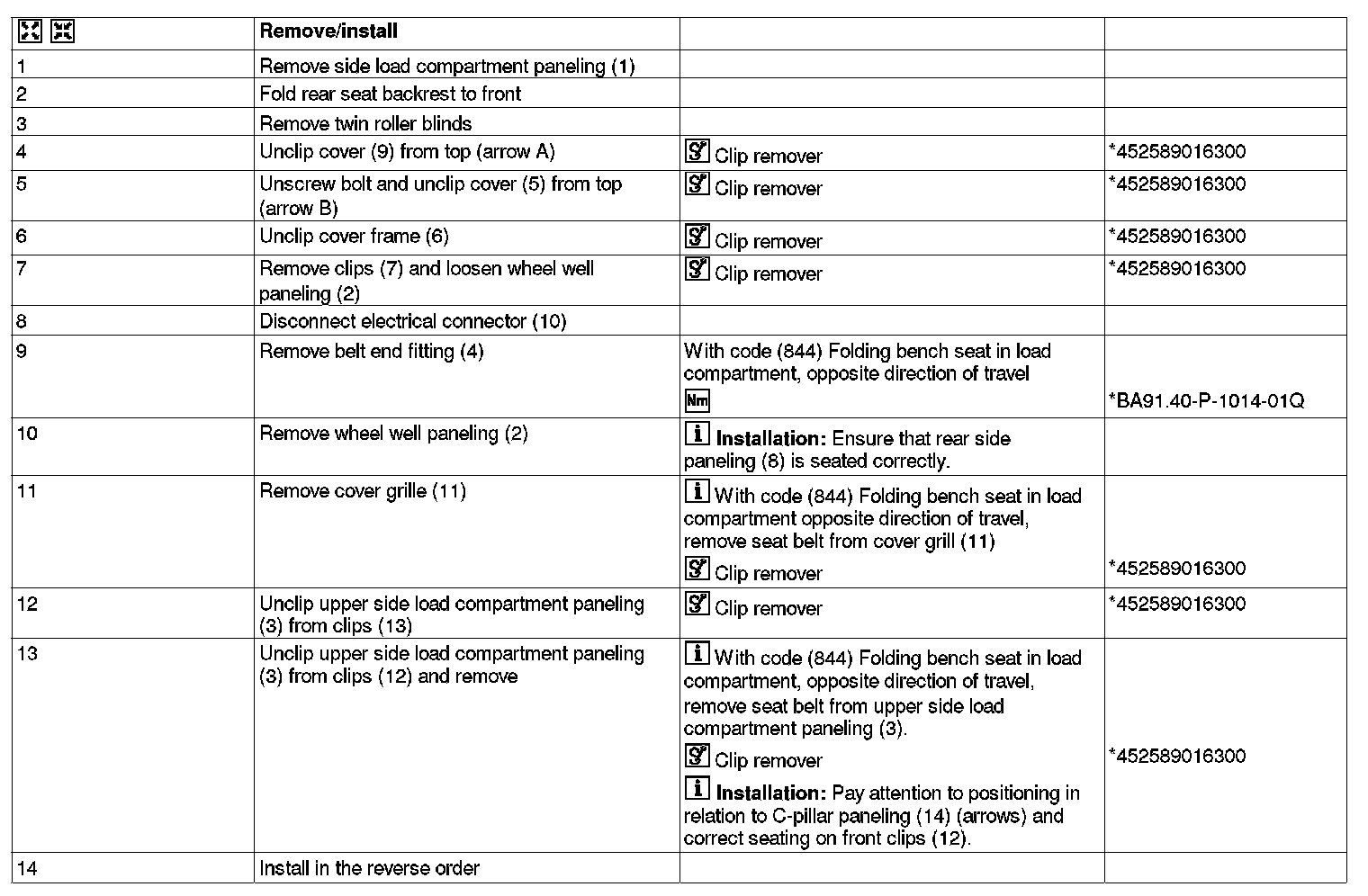

AR68.30-P-1180ES Remove/Install Load Compartment Inner Side Paneling

AR68.30-P-1180ES Remove/Install Load Compartment Inner Side Paneling


Shown on right side of vehicle

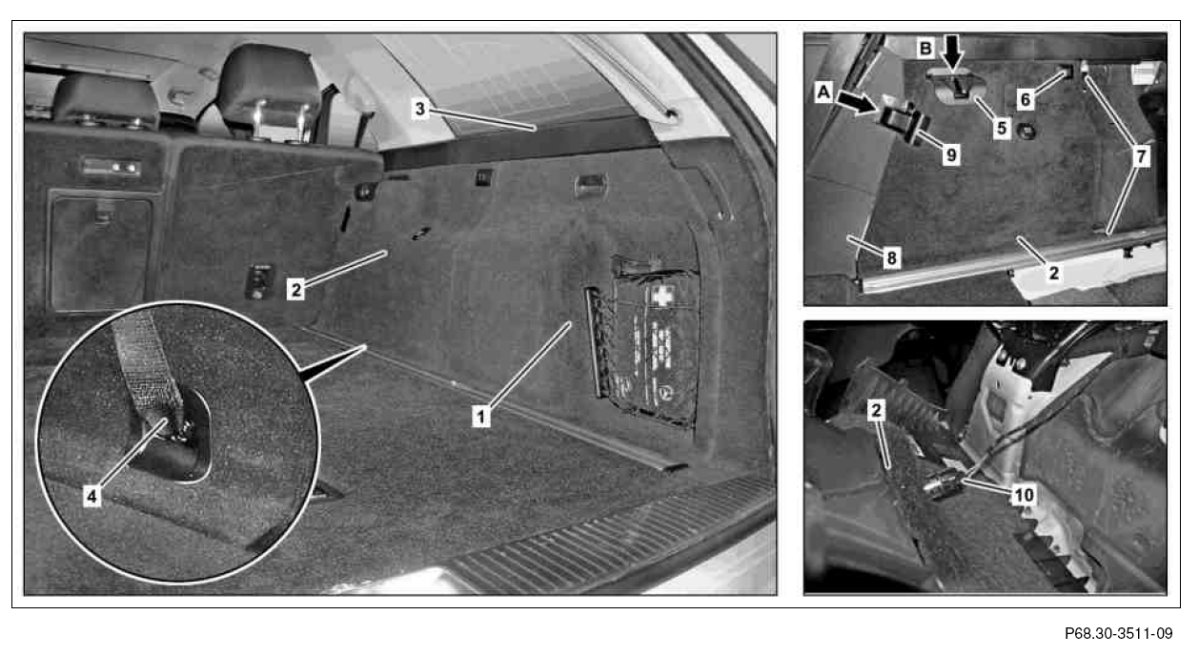

1 Side load compartment paneling
2 Wheel well paneling
3 Upper side load compartment paneling

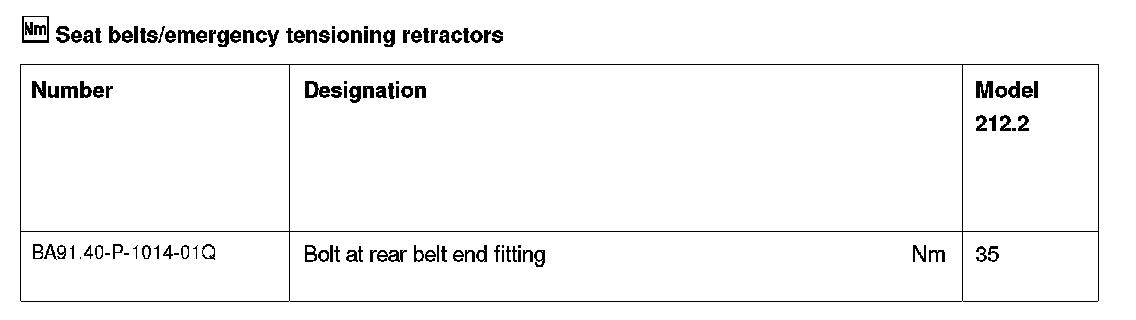

4 Belt end fitting (with code (844) Folding bench seat in cargo area, opposite direction of travel)
5 Cover
6 Cover frame
7 Clips
8 Rear side paneling
9 Cover
10 Electrical connector


Shown on right side of vehicle

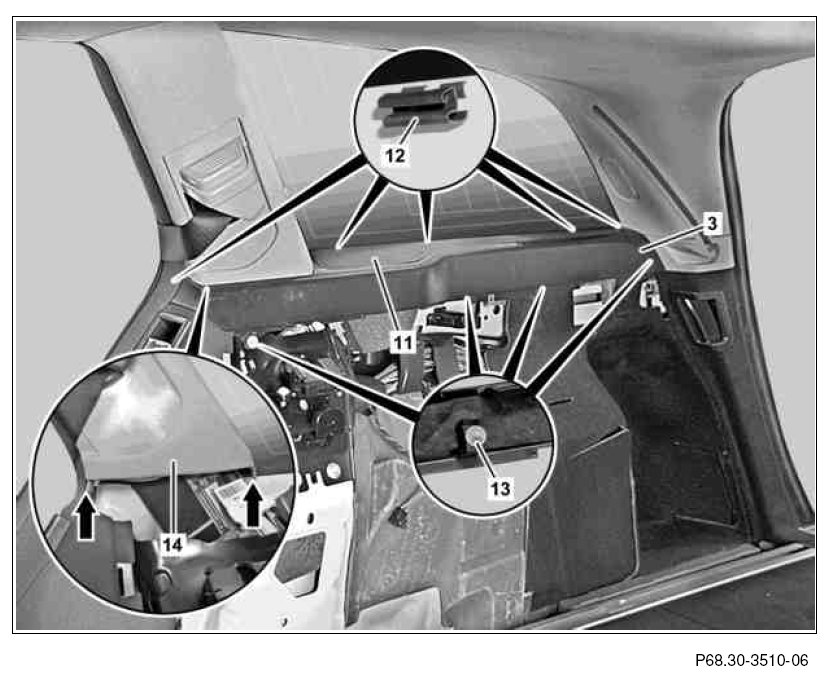

3 Upper side load compartment paneling
11 Cover grill
12 Clips
13 Clip
14 C-pillar paneling










452 589 01 63 00, Snap-release tool
