E 350 4MATIC Wagon (212.287) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR68.30-P-4100EW Remove/Install Door Sill

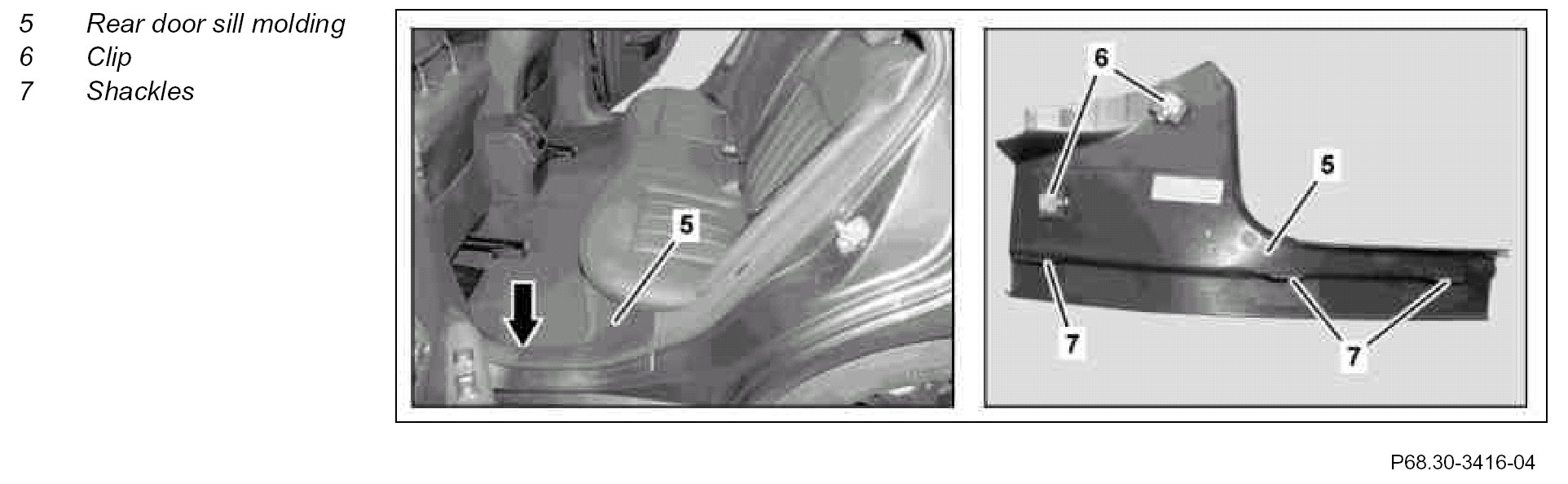

Component Identification:
Component Identification:

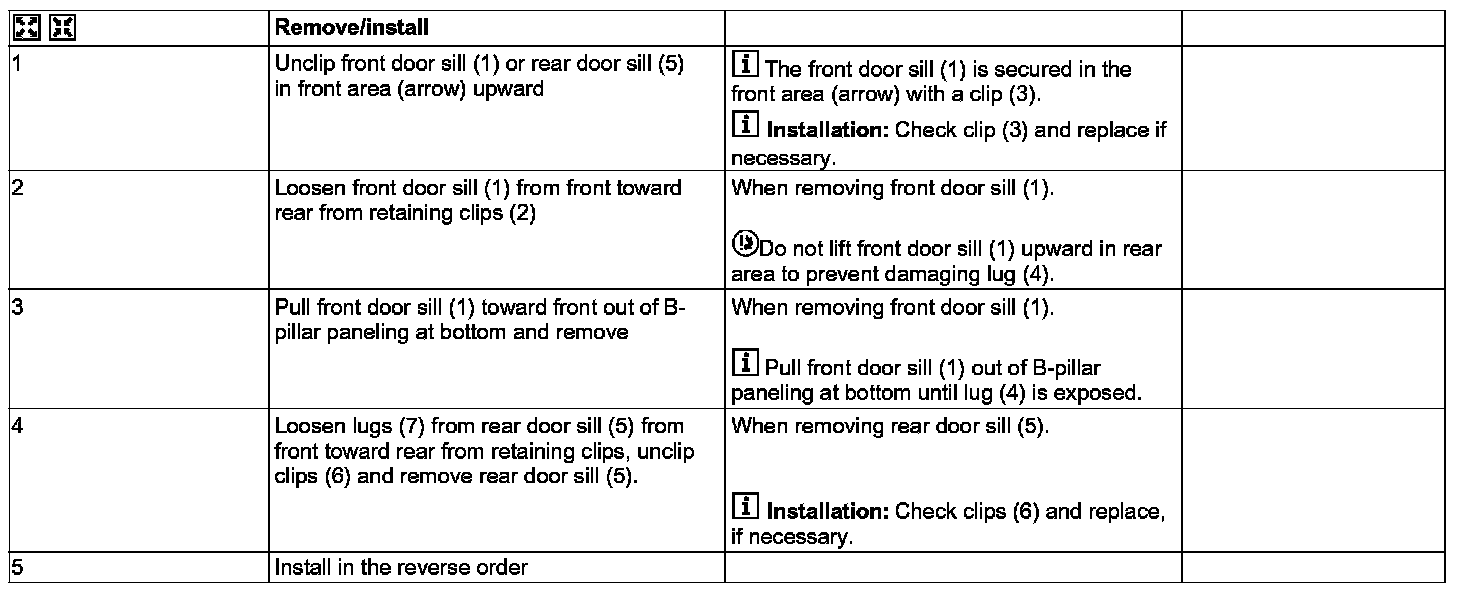

Steps 1 - 5:
