Trunk / Liftgate Hinge: Service and Repair

AR72.20-P-2560ES Remove/Install Rear-End Door Hinge

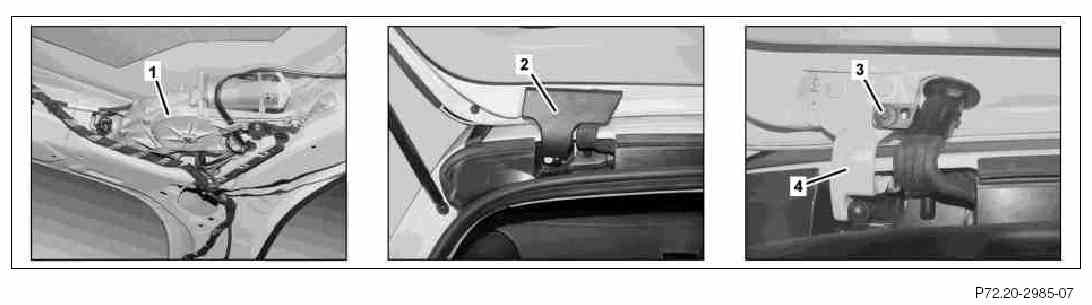

1 Tailgate control drive unit
2 Cover
3 Screw
4 Hinge







4 Hinge
5 Rear-end door
6 Support
7 Cover
8 Rag
9 Nuts
10 Bolts

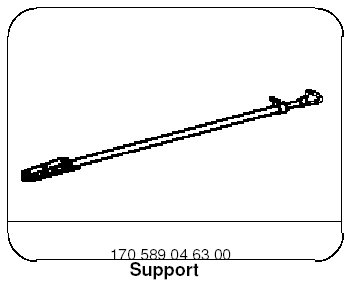

170 589 04 63 00, Support
