E 350 4MATIC Wagon (212.287) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Specifications
>>

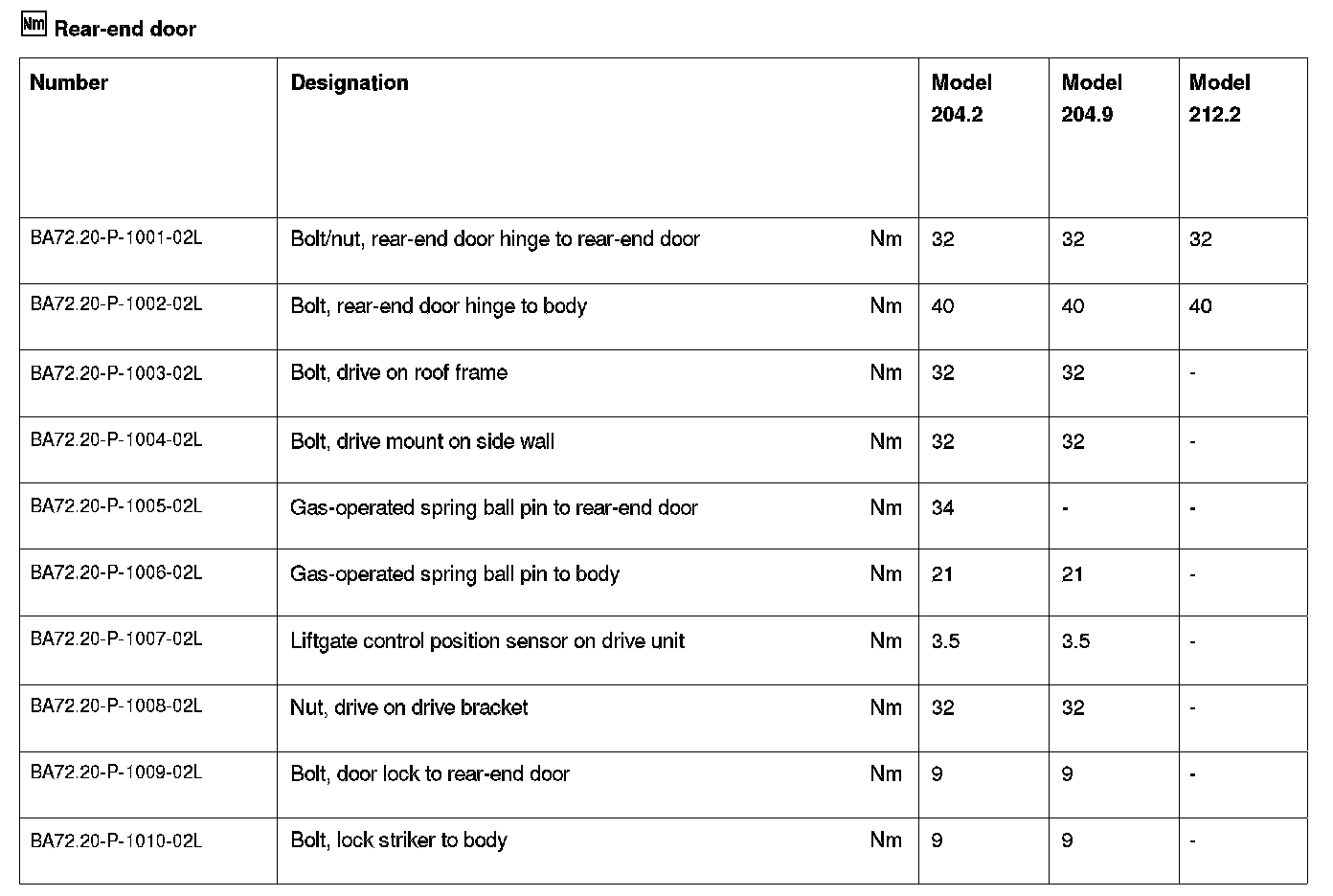

BA72.20-P-1000-02L Rear-End Door
BA72.20-P-1000-02L Rear-End Door
BA72.20-P-1000-02L Rear-End Door
