Trunk / Liftgate: Adjustments

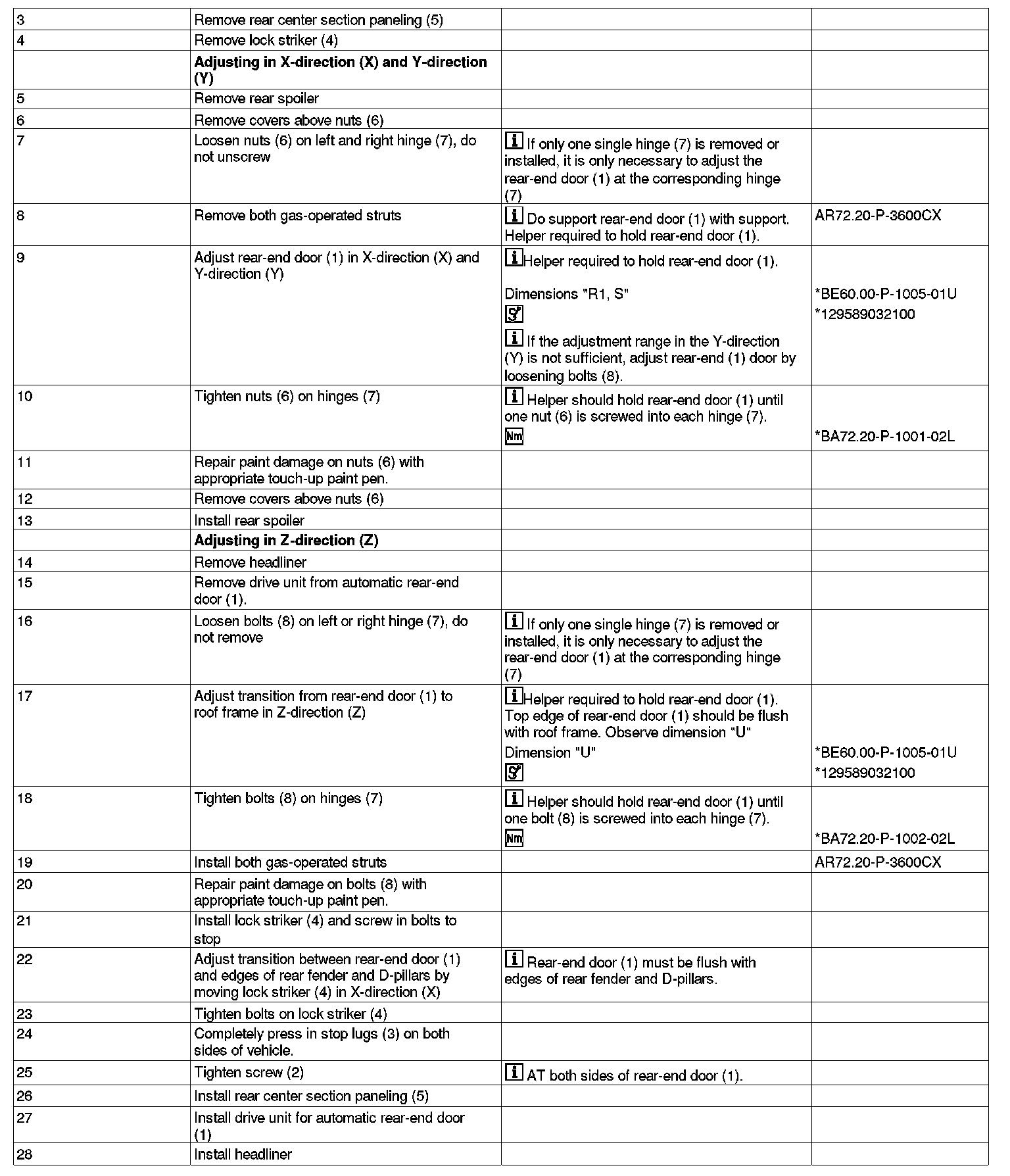

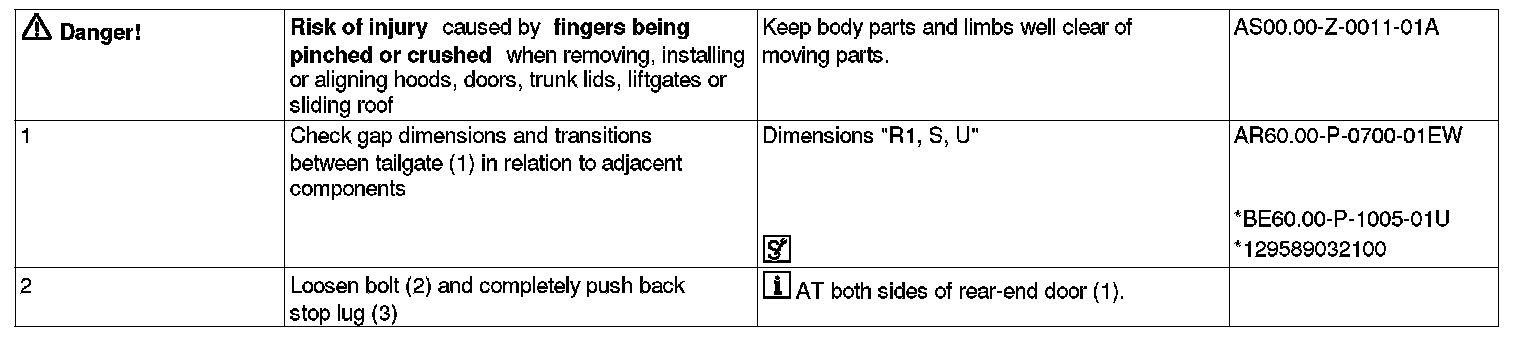

AR72.20-P-3510ES Adjust Rear-End Door

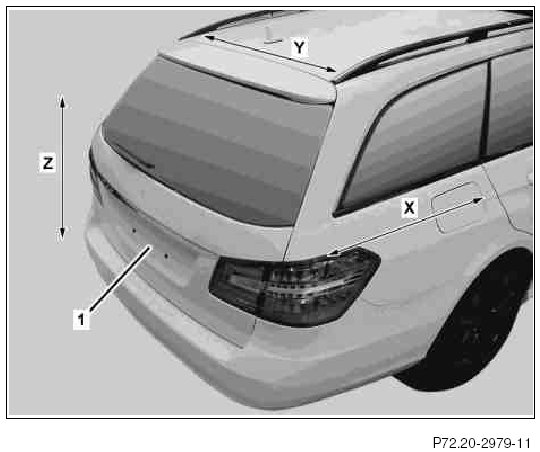

1 Rear-end door
X X-direction
Y Y-direction
Z Z-direction

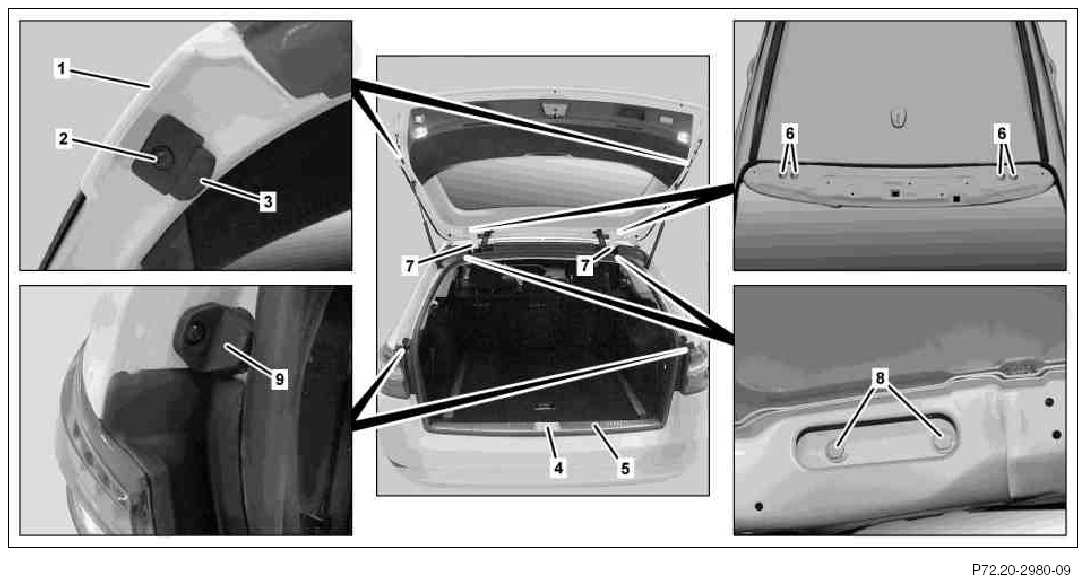

1 Rear-end door
2 Screw
3 Stop lug
4 Locking eye
5 Rear center section paneling
6 Nuts
7 Hinge
8 Bolts
9 Stop
















129 589 03 21 00, Feeler gauge
