Home >> Mercedes Benz >> 2011 >> E 350 4MATIC Wagon (212.287) V6-3.5L (272.977) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Rear Door >> Specifications >> BA72.20-P-1000-02L Rear-End Door

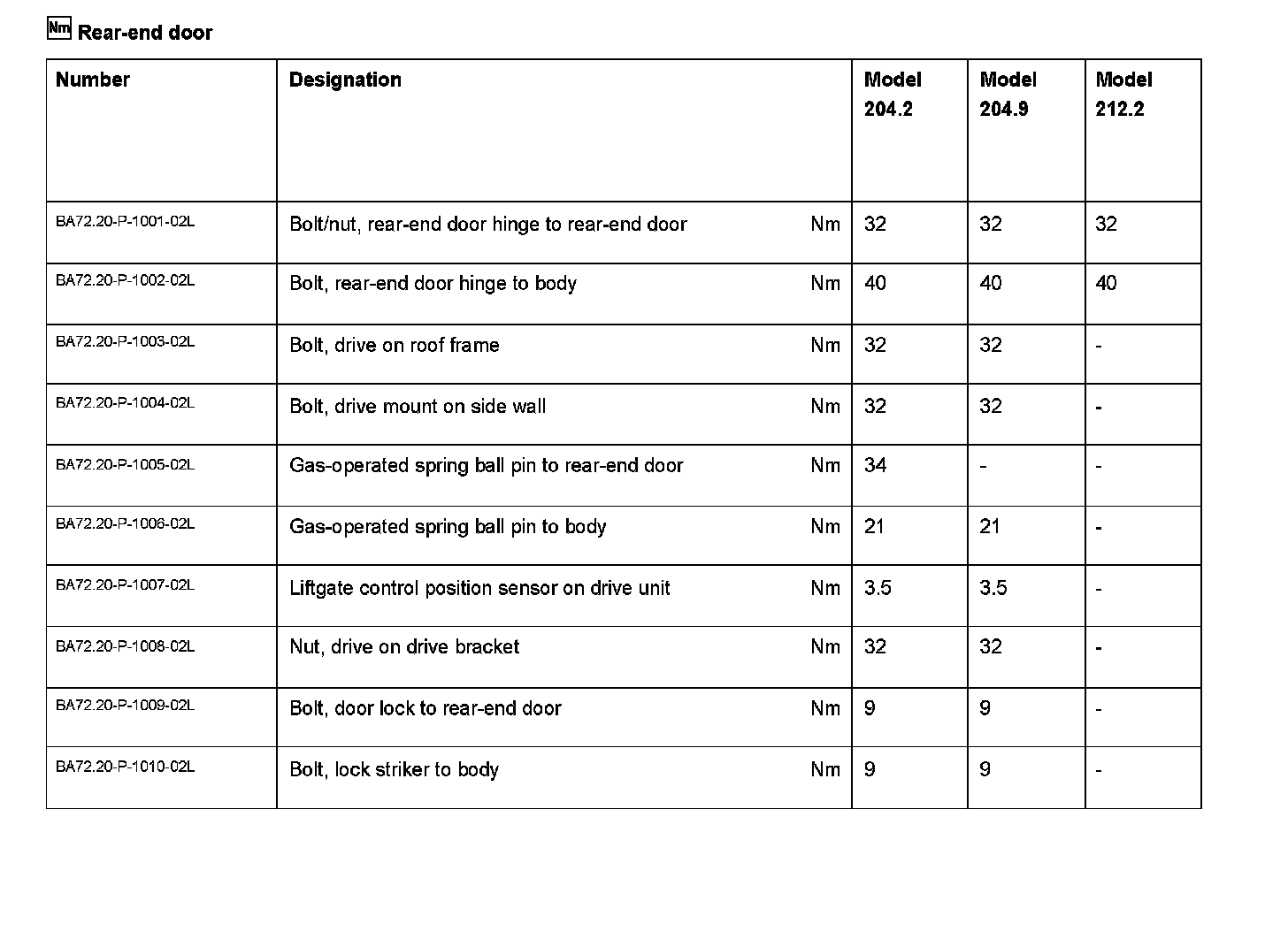

BA72.20-P-1000-02L Rear-End Door



BA72.20-P-1000-02L Rear-end Door
Model 204.2/9, 212.2
