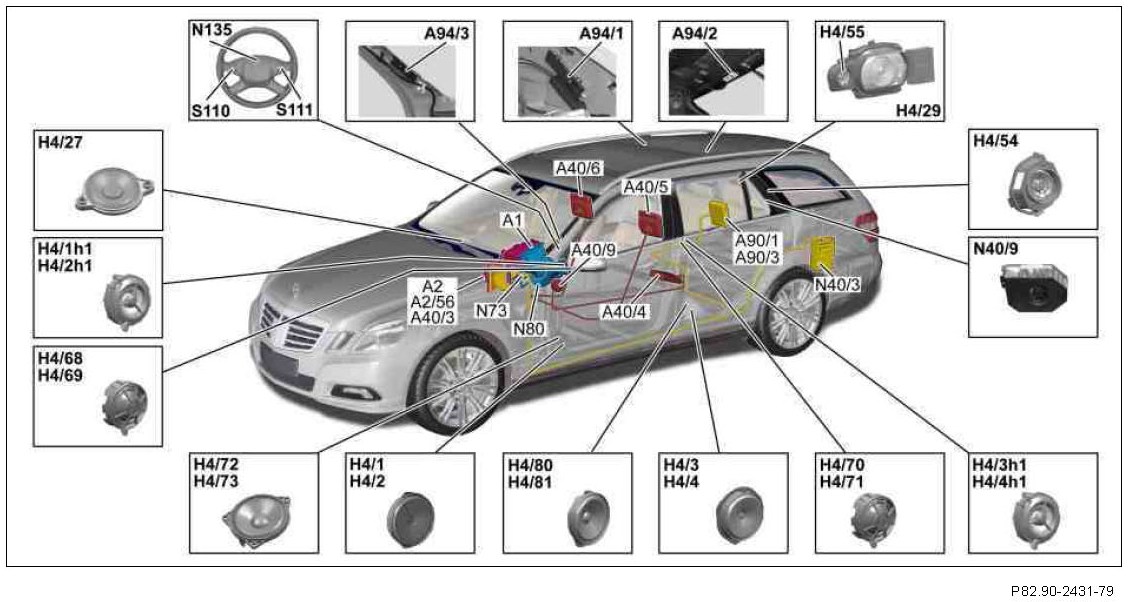

GF82.90-P-0002-01FLA Rear Entertainment, Location of Components

GF82.90-P-0002-01FLA Rear entertainment, location of components
MODEL 212.2
- with CODE (864) Rear entertainment system






A1 Instrument cluster
A2 Radio (with code (523) MB Audio 20 radio or with code (510) Audio 20 with CD changer)
A2/56 Radio with auto pilot system (with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS incl. DVD changer)
A40/3 COMAND controller unit (with code (528) COMAND incl. DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer)
A40/4 DVD player
A40/5 Left rear display
A40/6 Right rear display
A40/9 Audio/COMAND control panel
A90/1 TV tuner (analog/digital) (with code (863) Digital/analog TV tuner )
A90/3 Digital TV tuner (with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version)
A94/1 TV 1 antenna amplifier (with code (863) Digital/analog TV tuner or with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version)
A94/2 TV 2 antenna amplifier (with code (863) Digital/analog TV tuner or with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version)
A94/3 TV 3 antenna amplifier (with code (863) Digital/analog TV tuner or with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version)
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N73 Electronic ignition switch control unit
N80 Steering column module control unit
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
