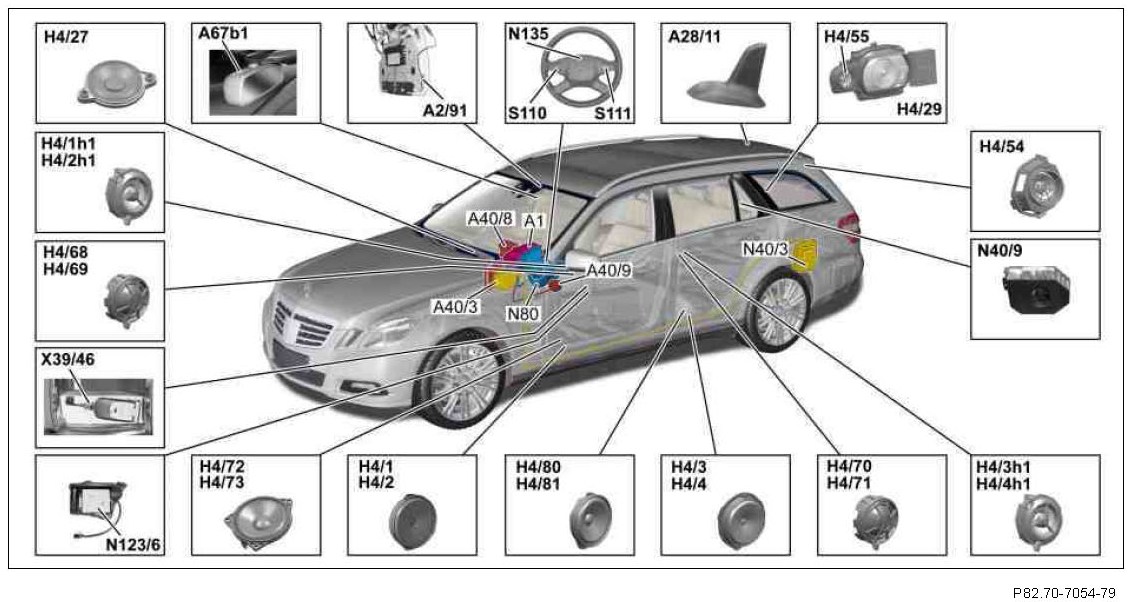

GF82.70-P-0007-01FLK Mobile Phone System, Location of Components

GF82.70-P-0007-01FLK Mobile Phone System, Location Of Components
MODEL 212.2
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version Basis-Telefonie






A1 Instrument cluster
A2/91 Bluetooth antenna
A28/11 Multifunction antenna
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N80 Steering column module control unit
N123/6 Communications control unit (up to 31.5.2010)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X39/46 Japan adapter cable electrical connector (up to 31.5.2010)
