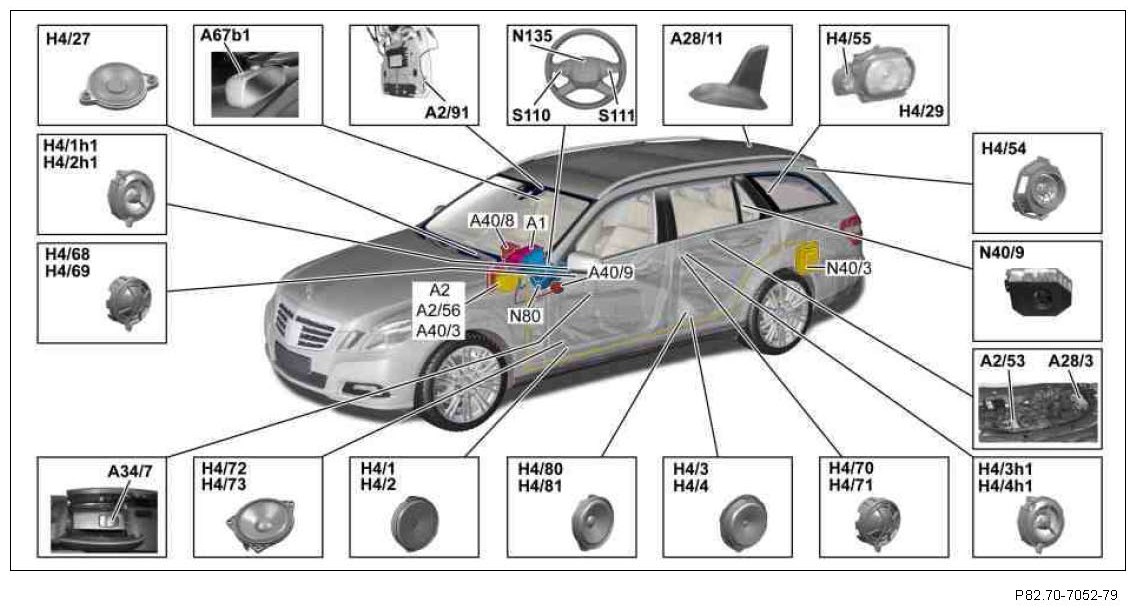

GF82.70-P-0007-01FLA Mobile Phone System, Location of Components

GF82.70-P-0007-01FLA Mobile Phone System, Location Of Components
MODEL 212.2
- except CODE (498) Japan version






A1 Instrument cluster
A2 Radio (with code (523) MB Audio 20 radio or with code (510) Audio 20 with CD changer)
A2/53 Mobile phone antenna splitter and stationary heater radio remote control (with code (386) Comfort telephony and code (228) Stationary heater)
A2/56 Radio with auto pilot system (with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS incl. DVD changer)
A2/91 Bluetooth antenna
A28/3 Antenna amplifier/cellular telephone system compensator (with code (386) Comfort telephony and code (228) Stationary heater)
A28/11 Multifunction antenna (with code (386) Comfort telephony)
A34/7 Bluetooth module (with code (386) Comfort telephony)
A40/3 COMAND controller unit (with code (528) COMAND incl. DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer)
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N80 Steering column module control unit
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
