AN54.65-P-0030-06ES Retrofit Reversing Camera Power Supply Module

AN54.65-P-0030-06ES Retrofit Reversing Camera Power Supply Module
- 212.2## except 212.277) 1#

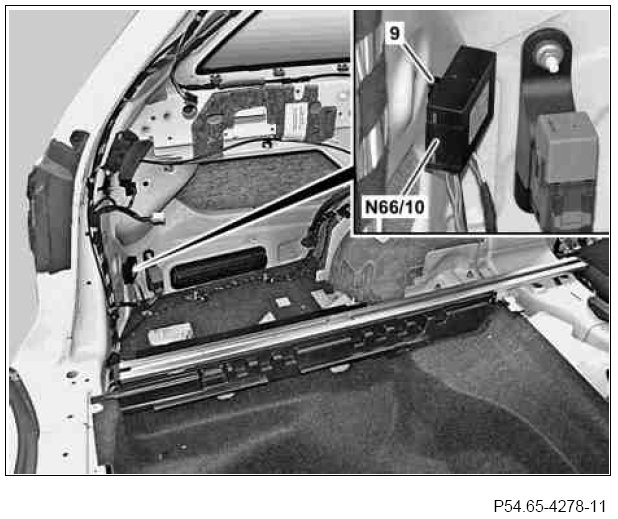

1 Slide clip (9) onto the reversing camera power supply module (N66/10).
2 Fasten reversing camera power supply module (N66/10) using clip (9) to inside of D-pillar.
