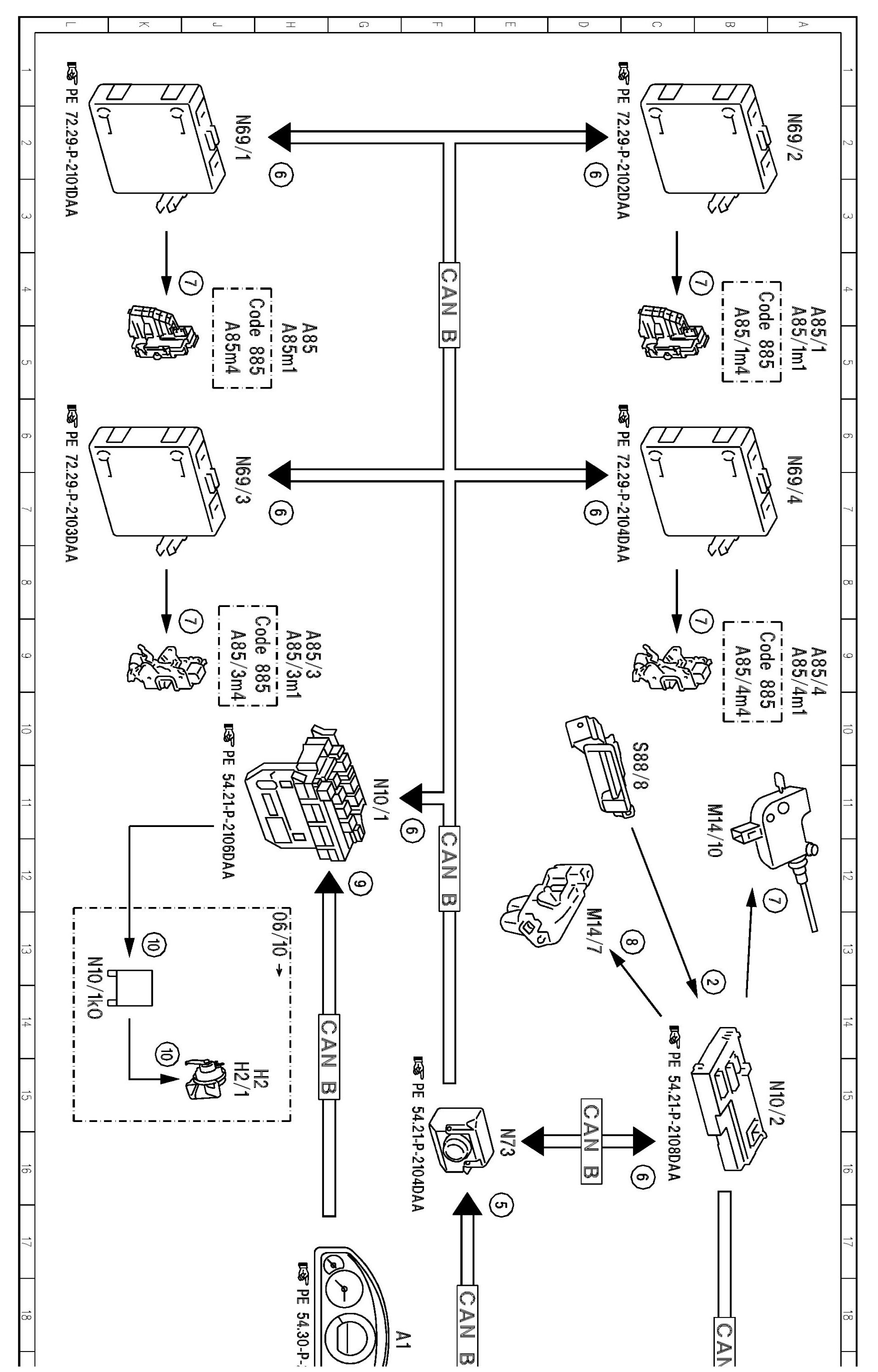

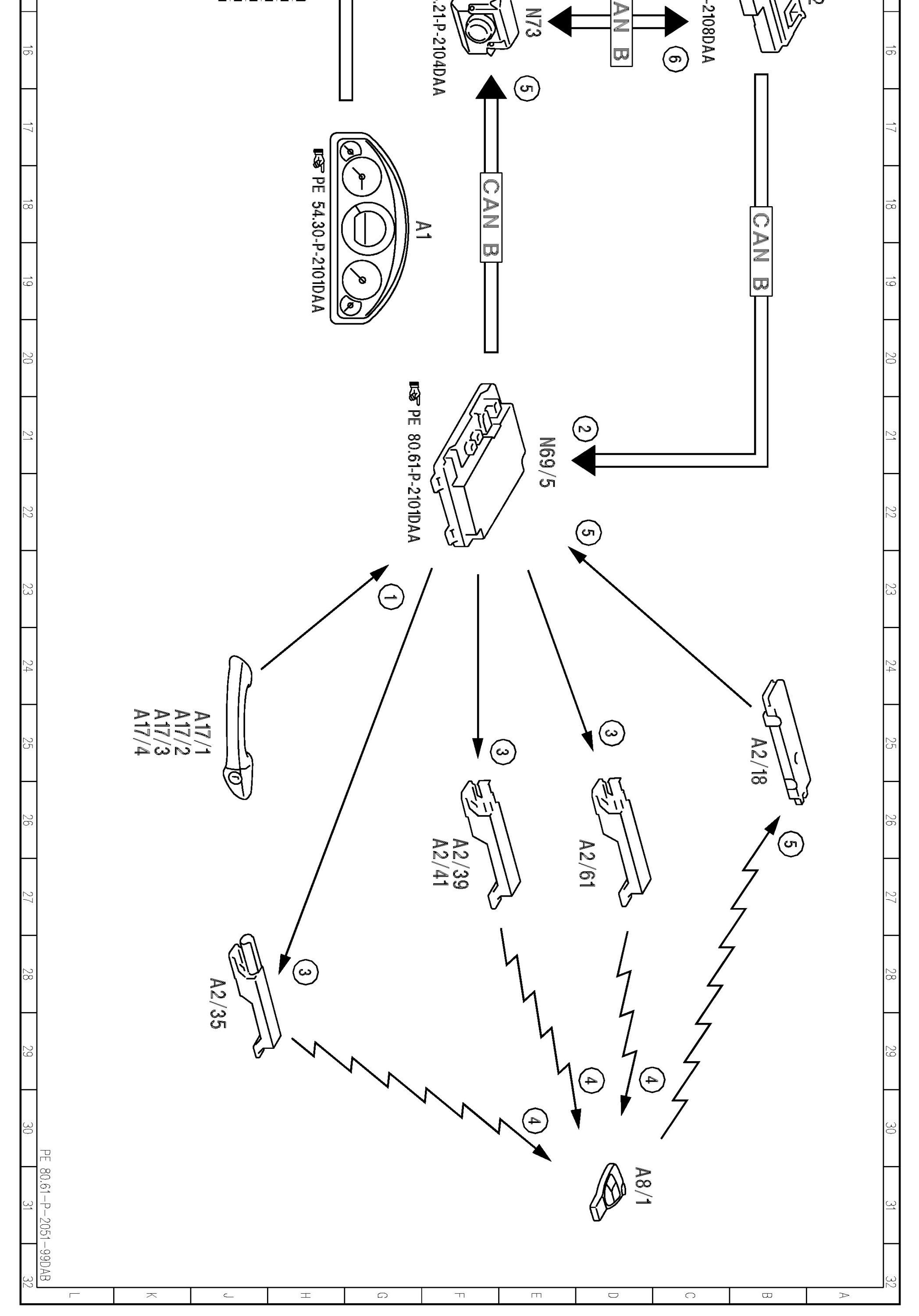

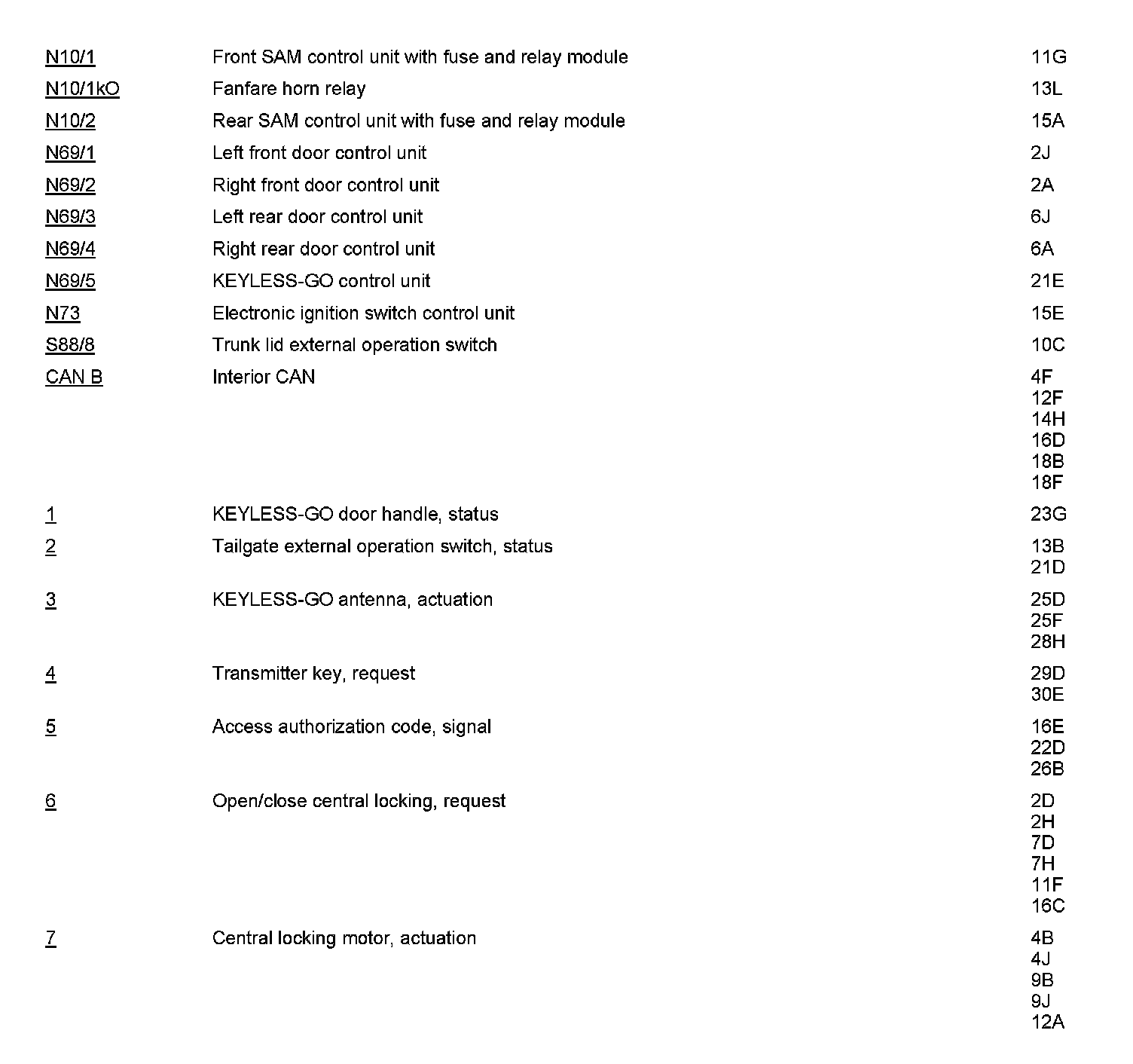

PE80.61-P-2051DAB Electrical Function Schematic For KEYLESS-GO Locking And Unlocking

PE80.61-P-2051DAB Electrical Function Schematic For KEYLESS-GO Locking And Unlocking
MODEL 212.2
- with CODE (889) KEYLESS-GO

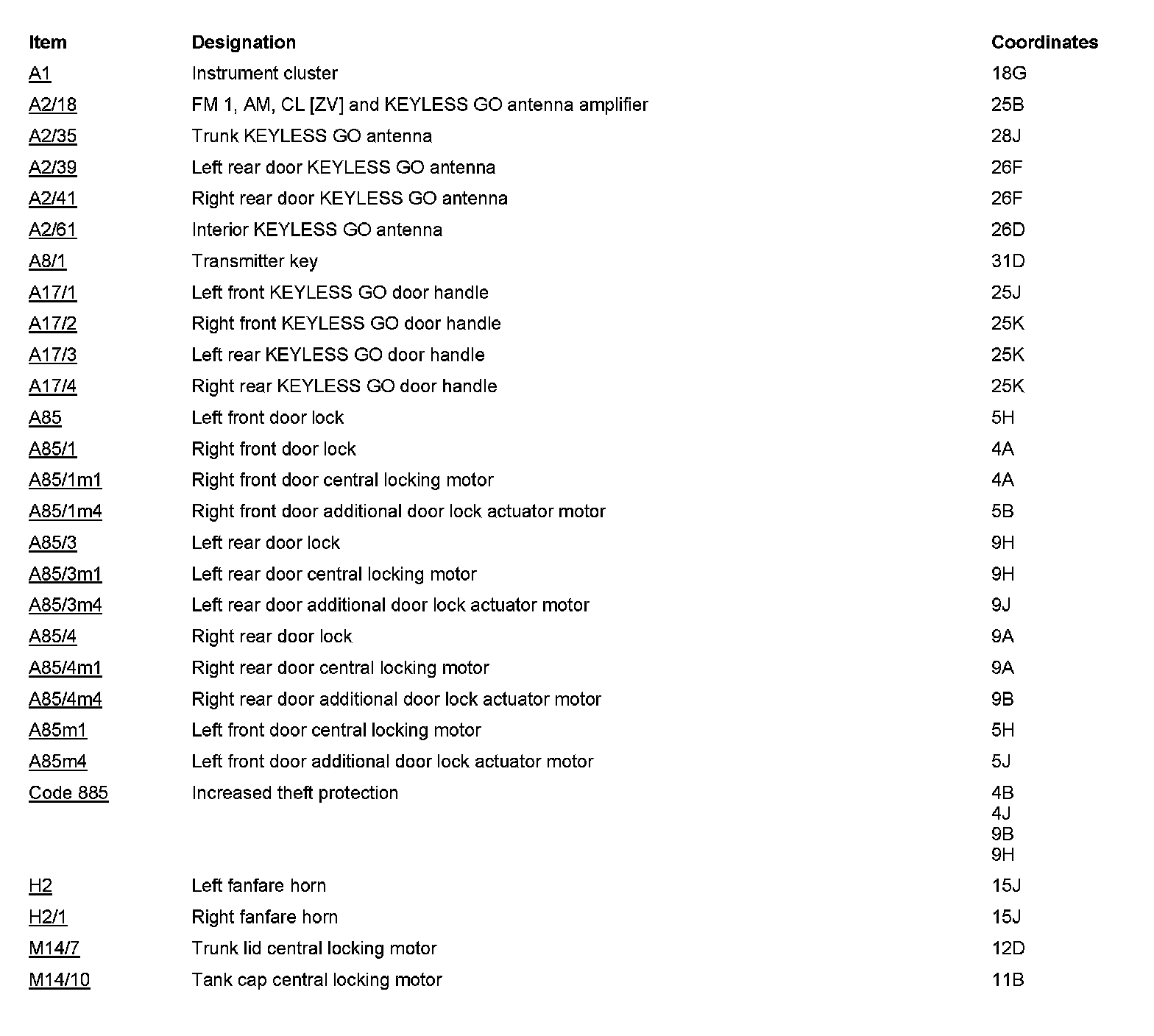

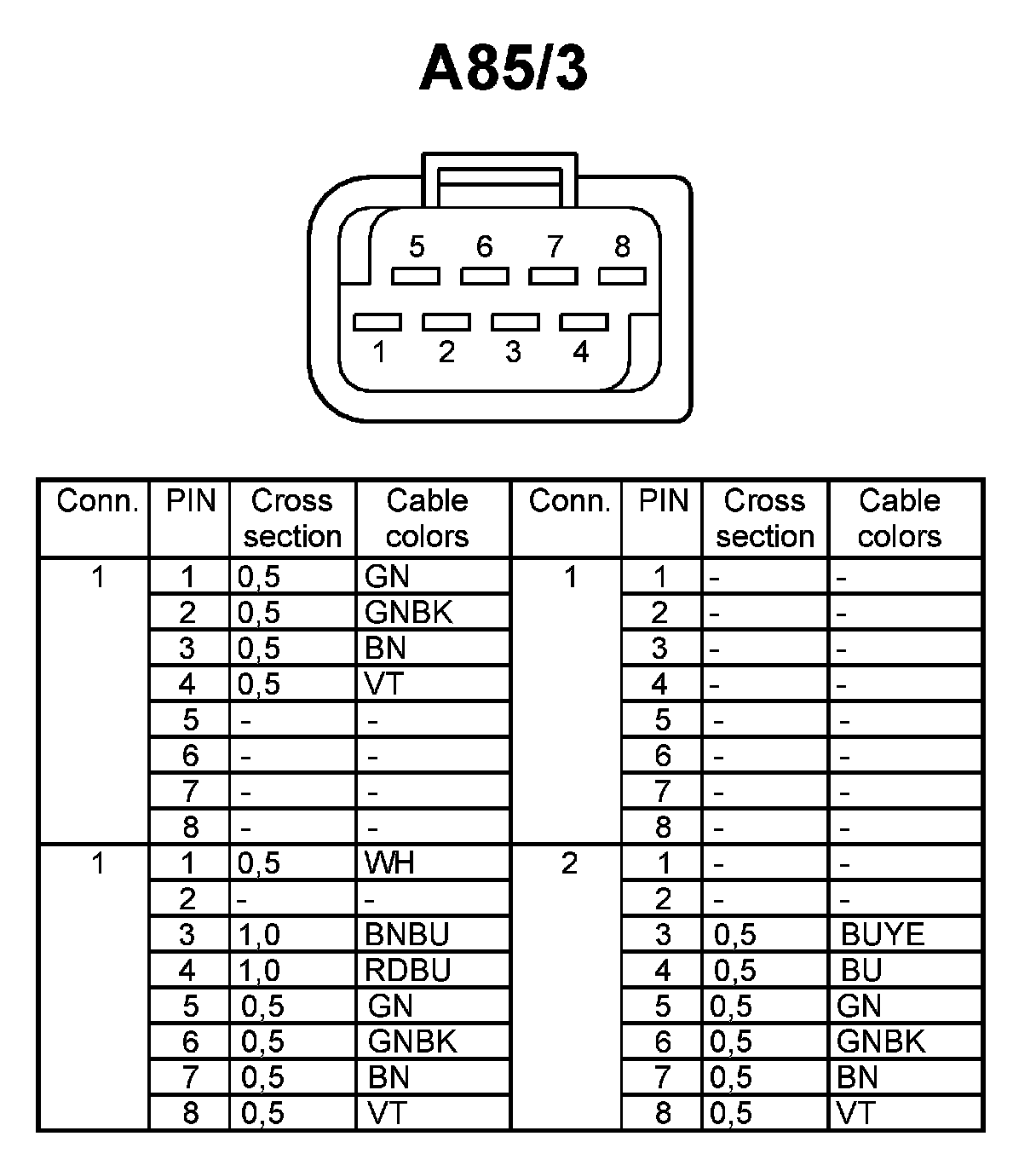

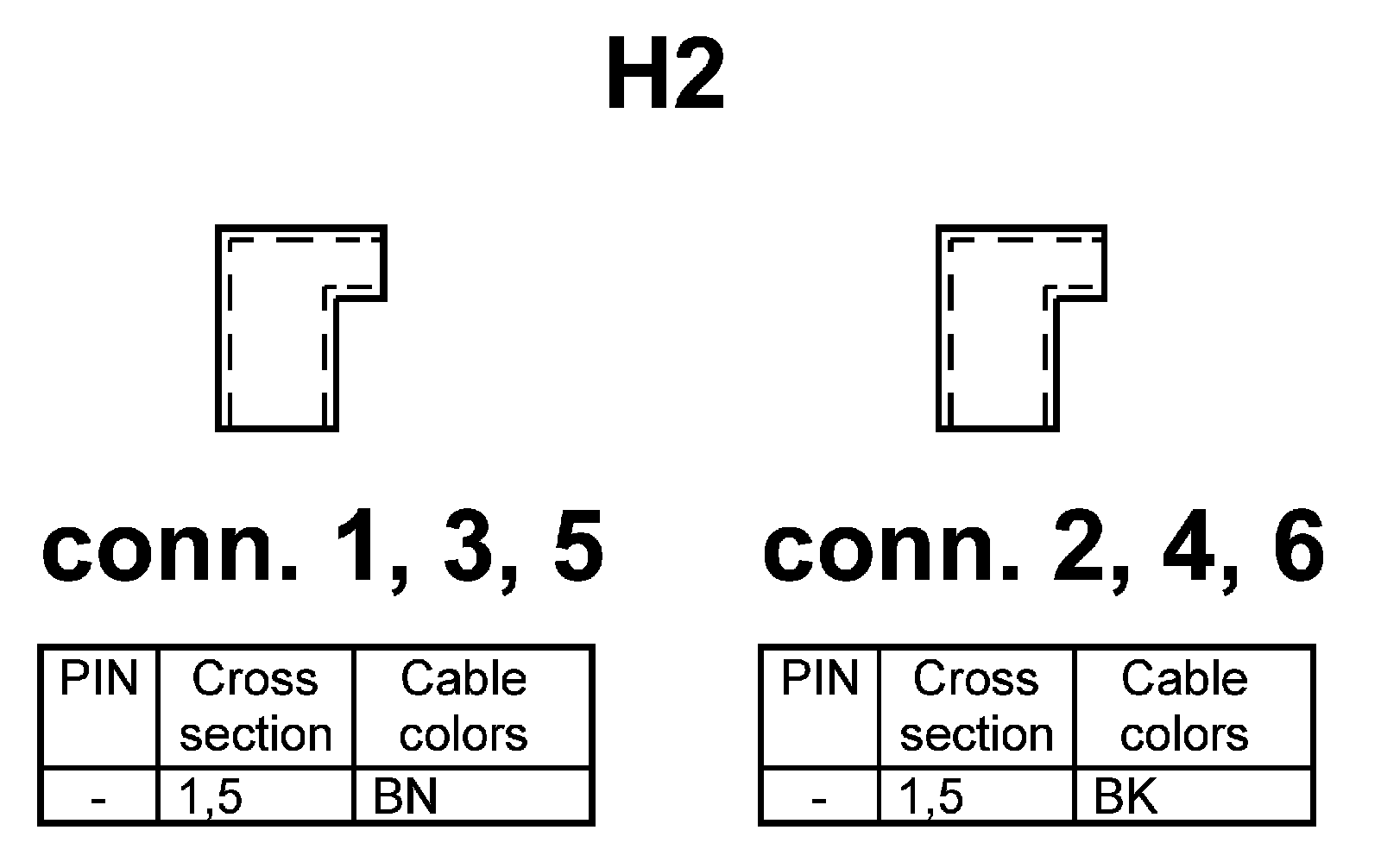

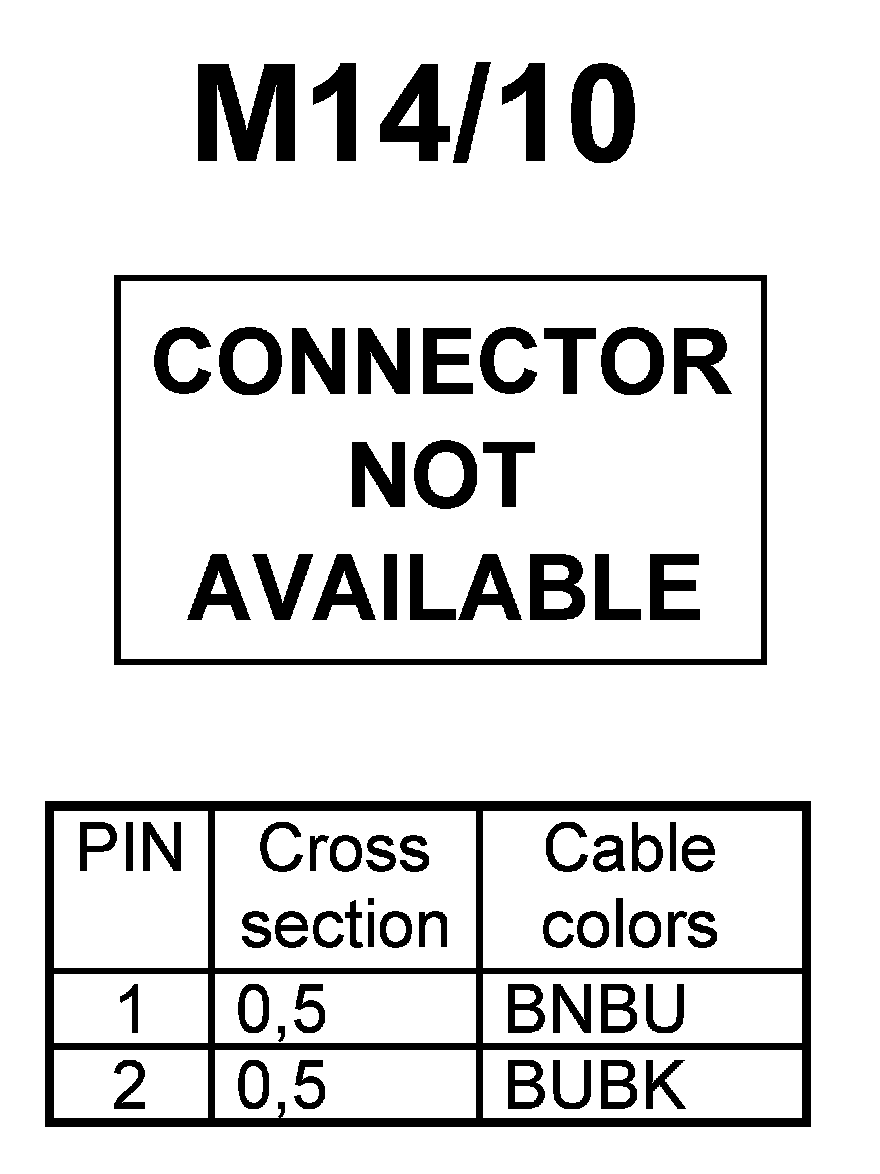

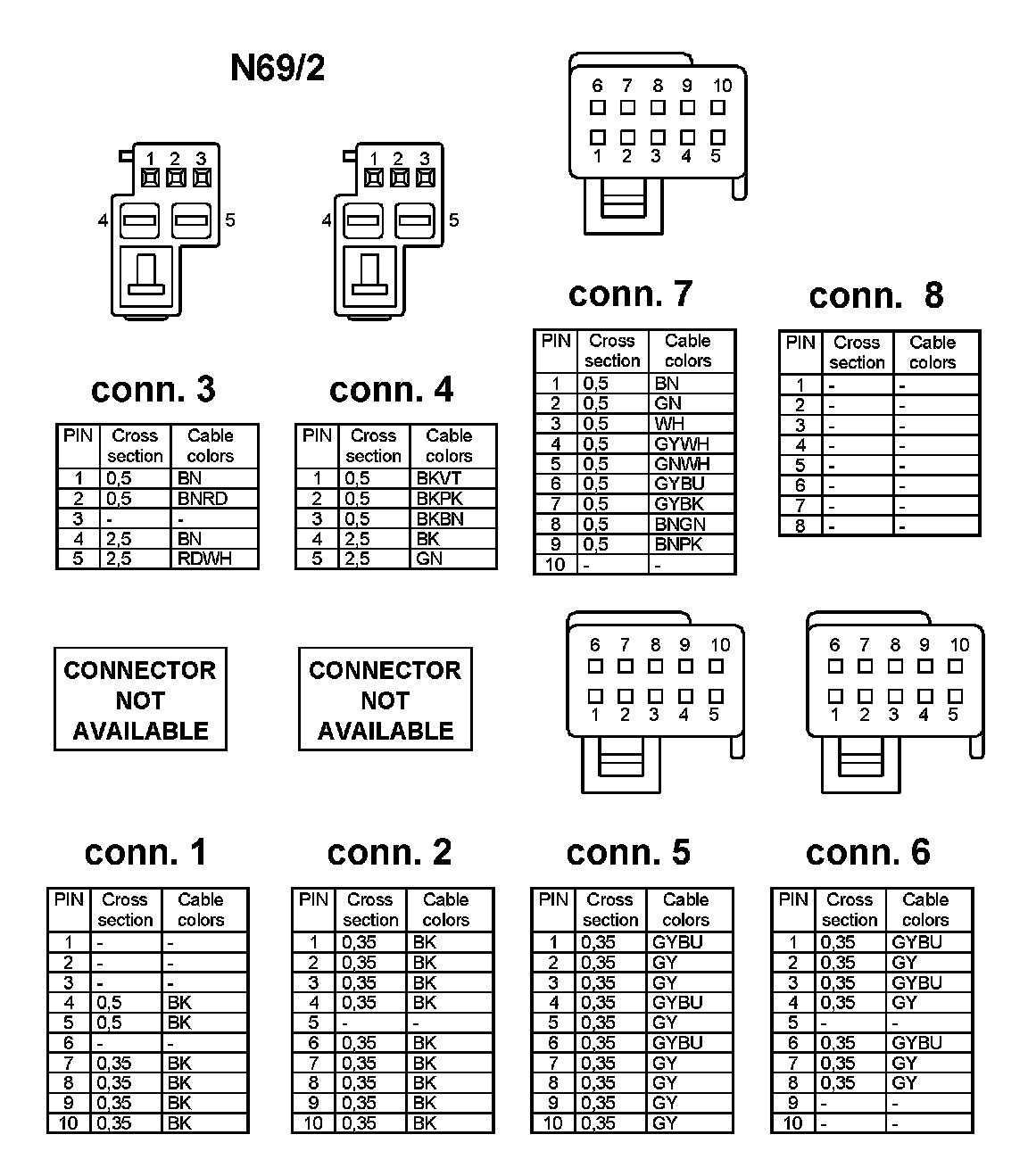

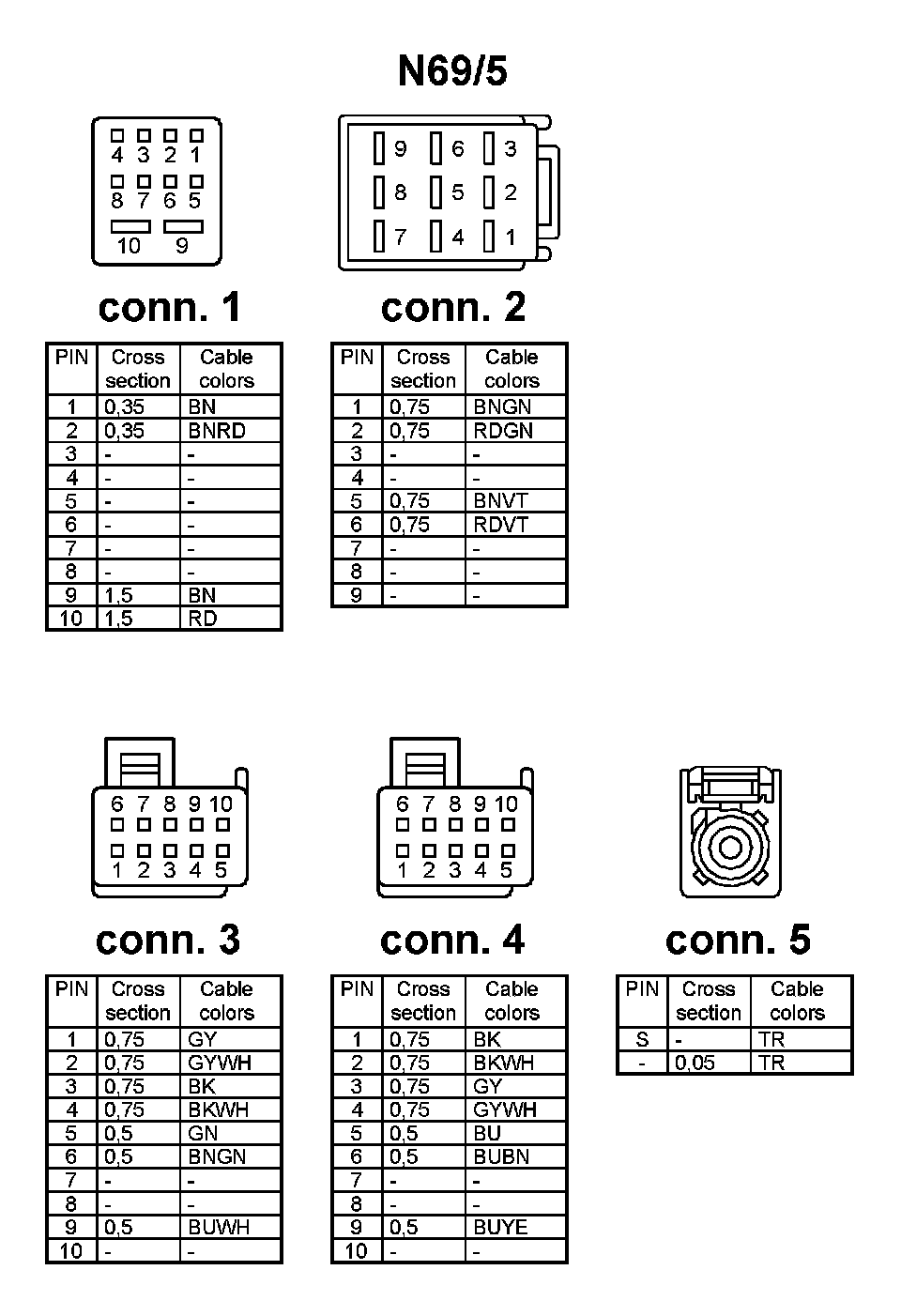

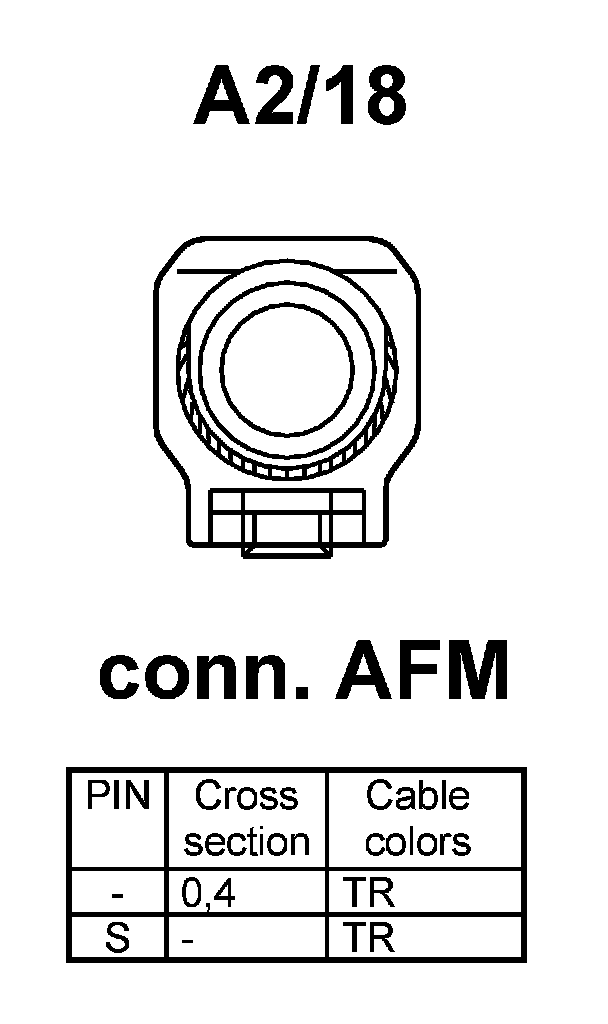

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
