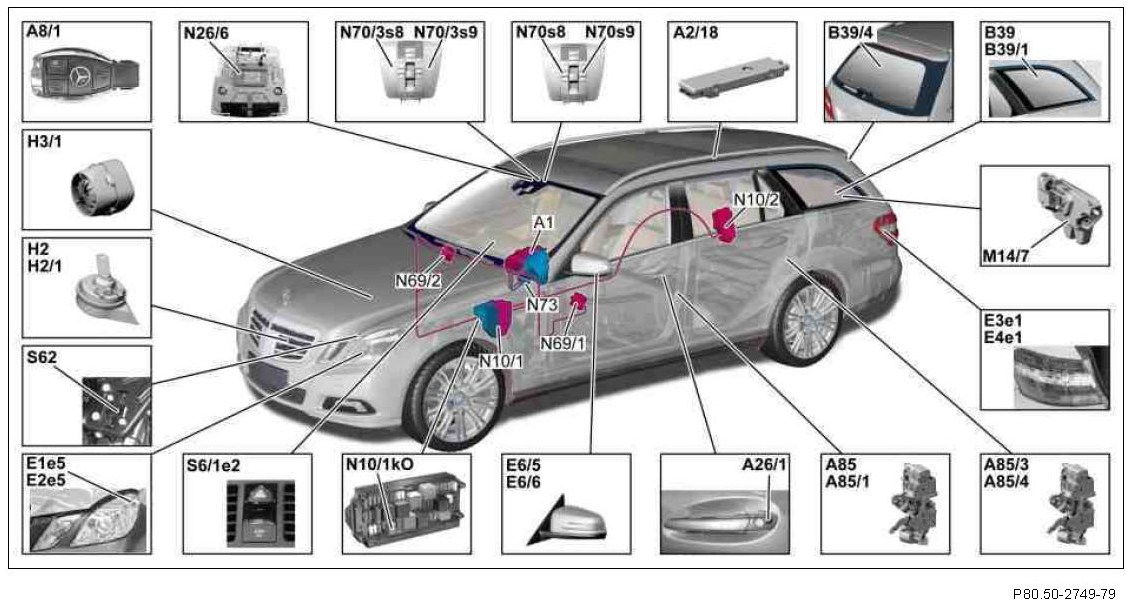

GF80.50-P-0001-02FLA Anti-Theft Alarm System (ATA), Location of Components

GF80.50-P-0001-02FLA Anti-Theft Alarm System (ATA), Location Of Components
MODEL 212.2
- with CODE (551) Anti-theft alarm system (ATA [EDW])







A1 Instrument cluster
A2/18 FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier
A8/1 Transmitter key
A26/1 Driver-side front door infrared remote control receiver
A85 Left front door lock
A85/1 Right front door lock
A85/3 Left rear door lock
A85/4 Right rear door lock
B39 Left rear glass breakage sensor (with code (882) Interior monitoring (only with ATA))
B39/1 Right rear glass breakage sensor (with code (882) Interior monitoring (only with ATA))
B39/4 Rear window glass breakage sensor (with code (882) Interior monitoring (only with ATA))
E1e5 Left front turn signal lamp
E2e5 Right front turn signal light
E3e1 Left rear turn signal lamp
E4e1 Right rear turn signal lamp
E6/5 Left outside mirror turn signal lamp
E6/6 Right outside mirror turn signal lamp
H2 Left horn (as of 1.6.10 with code (494) USA version)
H2/1 Right horn (as of 1.6.10 with code (494) USA version)
H3/1 Alarm siren (up to 31.5.10, as of 1.6.10 without code (494) USA version)
M14/7 Trunk lid central locking motor
N10/1 Front SAM control unit with fuse and relay module
N10/1kO Horns relay (as of 1.6.10 with code (494) USA version)
N10/2 Rear SAM control unit with fuse and relay module
N26/6 Interior protection and tow-away protection control unit (with code (882) Interior monitoring (only with ATA))
N69/1 Left front door control unit
N69/2 Right front door control unit
N70s8 Interior protection button (with code (882) Interior monitoring (only with ATA) and with code (414) Electric glass tilting/sliding roof)
N70s9 Tow-away protection button (with code (414) Power glass tilting/sliding sunroof with code (882) Interior monitoring (only with ATA))
N70/3s8 Interior protection button (with code (882) Interior monitoring (only with ATA) and without code (414) Power glass tilting/sliding sunroof)
N70/3s9 Tow-away protection button (without code (414) Power glass tilting/sliding sunroof with code (882) Interior monitoring (only with ATA))
N73 Electronic ignition switch control unit
S6/1 Instrument panel switch group
S6/1e2 Anti-theft alarm system indicator lamp
S62 Engine hood anti-theft alarm system switch
