GF82.85-P-0003-01FLU Cockpit Management and Data System (COMAND), Location of Components



GF82.85-P-0003-01FLU Cockpit Management And Data System (COMAND), Location Of Components
MODEL 212.2
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) COMAND with DVD changer

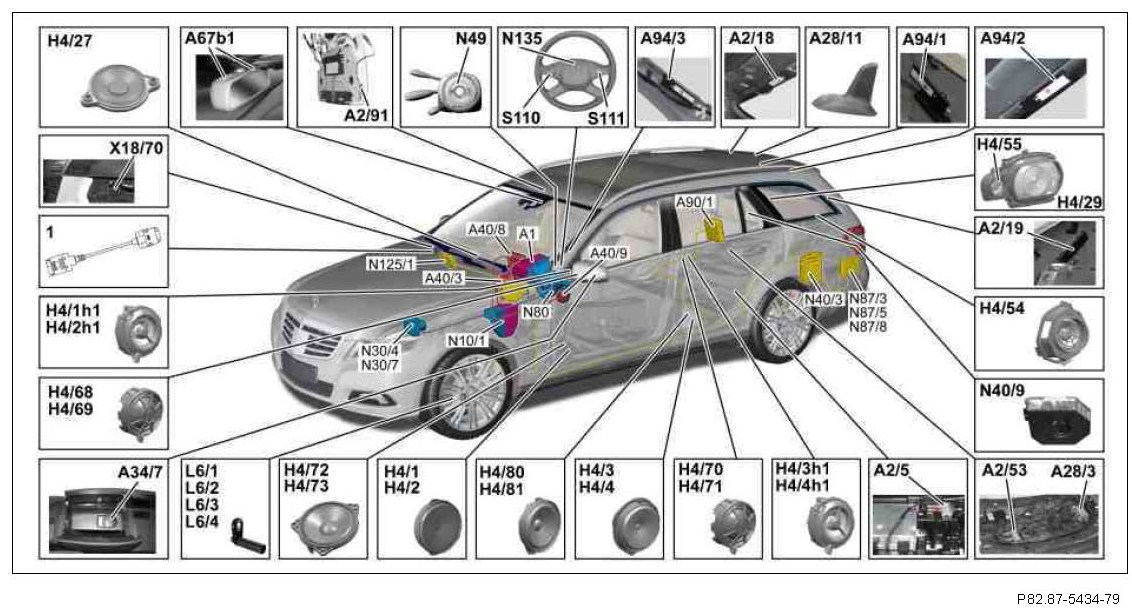

Shown on vehicle up to 31.5.2011
1 Media interface adapter cable (with code (518) Media interface)
A1 Instrument cluster
A2/5 Global Positioning System antenna splitter (with code (359) TELE AID emergency call system)
A2/18 FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier
A2/19 FM 2 and DAB antenna amplifier
A2/53 Mobile phone and stationary heater radio remote control antenna splitter (with code (386) Comfort telephony and code (228) Stationary heater)
A2/91 Bluetooth antenna
A28/3 Mobile radio antenna amplifier/ compensator (with code (386) Comfort telephony and code (228) Stationary heater)
A28/11 Multifunction antenna
A34/7 Bluetooth module (with code (386) Comfort telephony)
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A90/1 TV tuner (analog/digital) (with code (863) Digital/analog TV tuner )
A94/1 TV 1 antenna amplifier (with code (863) Digital/analog TV tuner )
A94/2 TV 2 antenna amplifier (with code (863) Digital/analog TV tuner)
A94/3 TV 3 antenna amplifier (with code (863) Digital/analog TV tuner)
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS)
N30/7 Premium Electronic Stability Program control unit (vehicles with code (233) DISTRONIC PLUS)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N49 Steering angle sensor
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 Satellite digital audio radio (SDAR) control unit (with code (536) SIRIUS satellite radio as of 1.6.2010)
N87/8 SDAR/high definition tuner control unit (with code (536) SIRIUS satellite radio up to 31.5.2010)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code ( 518) Media Interface)

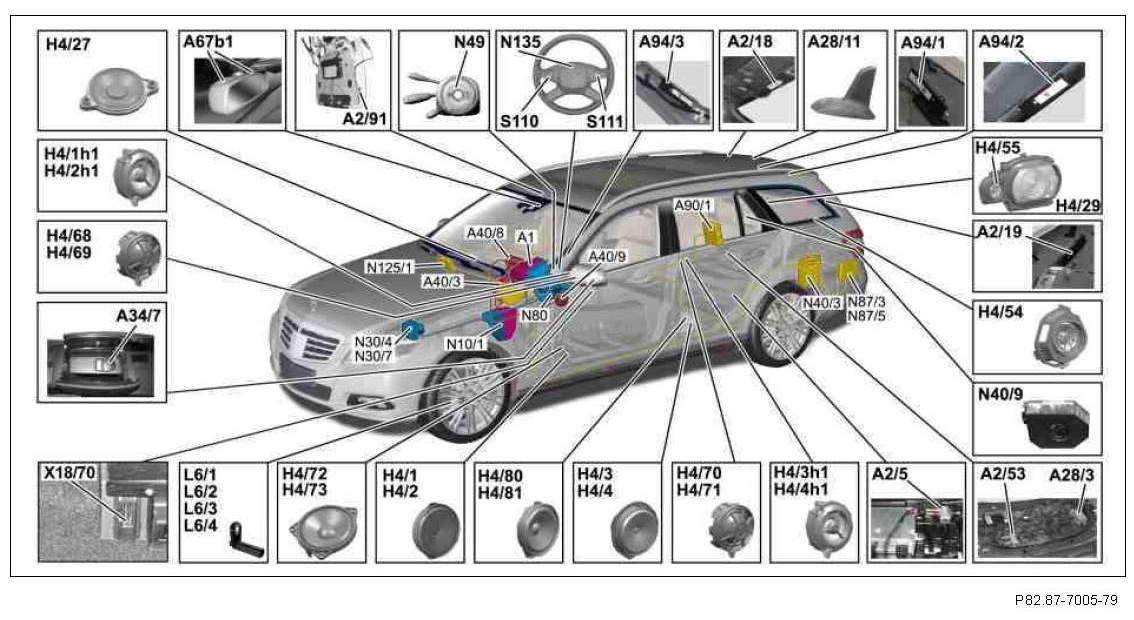

Shown on vehicle as of 1.6.2011
A1 Instrument cluster
A2/5 Global Positioning System antenna splitter (with code (359) TELE AID emergency call system)
A2/18 FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier
A2/19 FM 2 and DAB antenna amplifier
A2/53 Mobile phone and stationary heater radio remote control antenna splitter (with code (386) Comfort telephony and code (228) Stationary heater)
A2/91 Bluetooth antenna
A28/3 Mobile radio antenna amplifier/ compensator (with code (386) Comfort telephony and code (228) Stationary heater)
A28/11 Multifunction antenna
A34/7 Bluetooth module (with code (386) Comfort telephony)
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A90/1 TV tuner (analog/digital) (with code (863) Digital/analog TV tuner )
A94/1 TV 1 antenna amplifier (with code (863) Digital/analog TV tuner )
A94/2 TV 2 antenna amplifier (with code (863) Digital/analog TV tuner)
A94/3 TV 3 antenna amplifier (with code (863) Digital/analog TV tuner)
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS)
N30/7 Premium Electronic Stability Program control unit (vehicles with code (233) DISTRONIC PLUS)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N49 Steering angle sensor
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 Satellite digital audio radio (SDAR) control unit (with code (536) SIRIUS satellite radio)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code ( 518) Media Interface)
