GF82.85-P-0003-01FLK Cockpit Management and Data System (COMAND), Location of Components



GF82.85-P-0003-01FLK Cockpit Management And Data System (COMAND), Location Of Components
MODEL 212.2
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

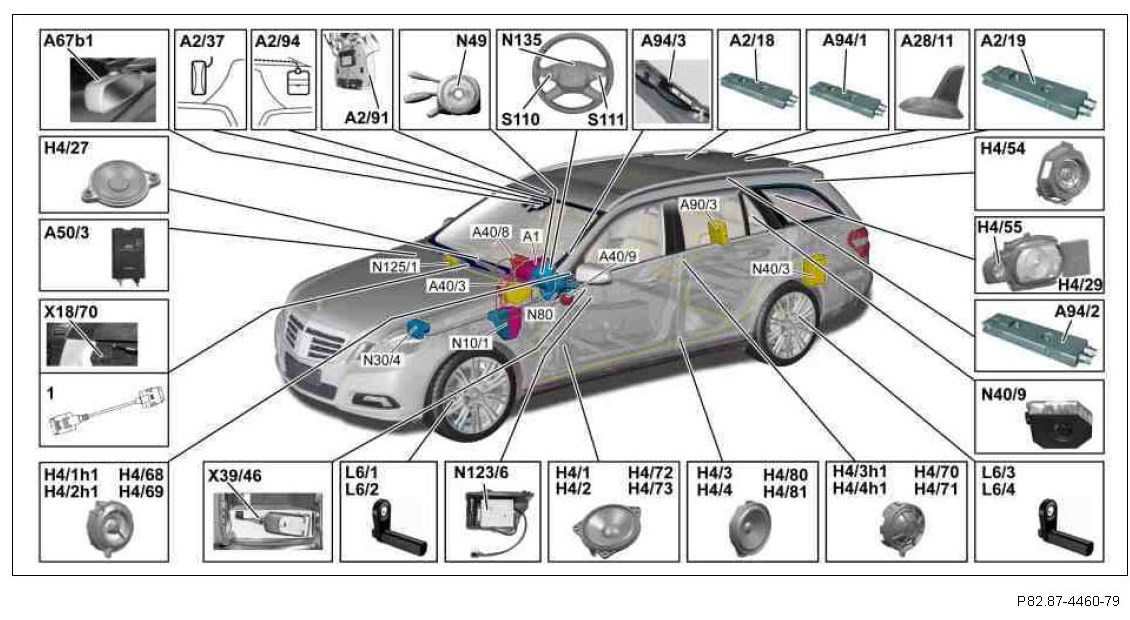

Shown on vehicle up to 31.5.2011
1 Media interface adapter cable (with code (518) Media interface)
A1 Instrument cluster
A2/18 FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier
A2/19 FM 2 and DAB antenna amplifier
A2/37 VICS control unit (dealer option)
A2/91 Bluetooth antenna
A2/94 Electronic Toll Collection antenna (ETC) (Dealer Option)
A28/11 Multifunction antenna
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A50/3 Electronic Toll Collection control unit (ETC) (Dealer Option)
A67b1 Hands-free system microphone
A90/3 TV digital tuner
A94/1 TV 1 antenna amplifier
A94/2 TV 2 antenna amplifier
A94/3 TV 3 antenna amplifier
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N49 Steering angle sensor
N80 Steering column module control unit
N123/6 Communications control unit (up to 31.5.10)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X39/46 Japan adapter cable electrical connector (up to 31.5.10)

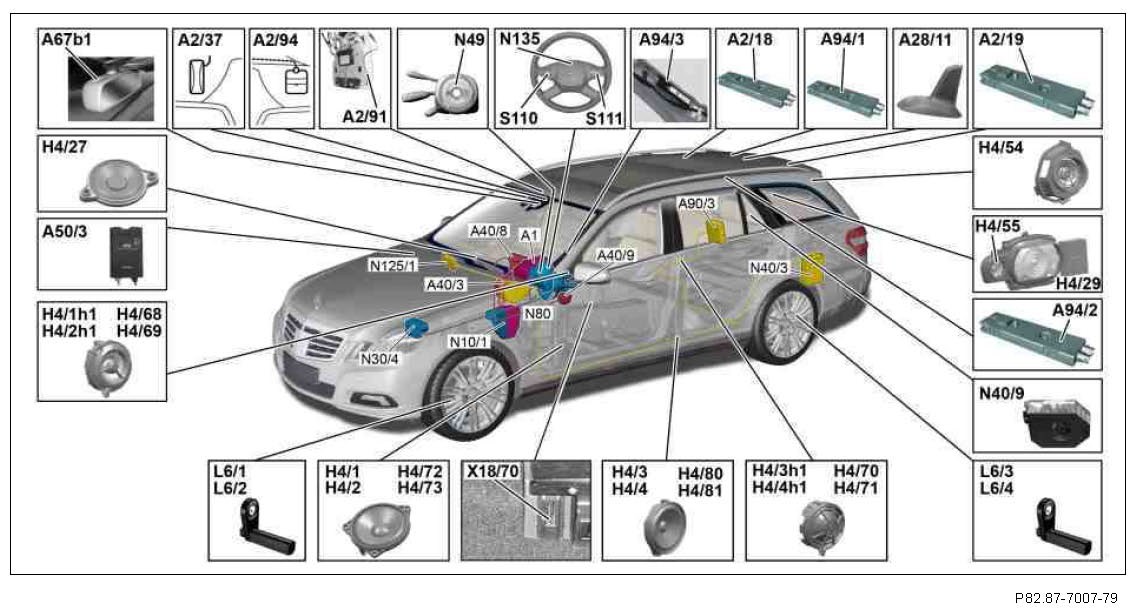

Shown on vehicle as of 1.6.2011
A1 Instrument cluster
A2/18 FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier
A2/19 FM 2 and DAB antenna amplifier
A2/37 VICS control unit (dealer option)
A2/91 Bluetooth antenna
A2/94 Electronic Toll Collection antenna (ETC) (Dealer Option)
A28/11 Multifunction antenna
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A50/3 Electronic Toll Collection control unit (ETC) (Dealer Option)
A67b1 Hands-free system microphone
A90/3 TV digital tuner
A94/1 TV 1 antenna amplifier
A94/2 TV 2 antenna amplifier
A94/3 TV 3 antenna amplifier
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N49 Steering angle sensor
N80 Steering column module control unit
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
