FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
CL 65 AMG (216.379) V12-6.0L Turbo (275.982)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Turbocharger
>>
Intercooler
>>
Service and Repair
>>
Removal and Replacement
>>
AR20.20-P-3866SX Remove/Install Additional Radiator
AR20.20-P-3866SX Remove/Install Additional Radiator
AR20.20-P-3866SX Remove/install additional radiator
Component Identification:

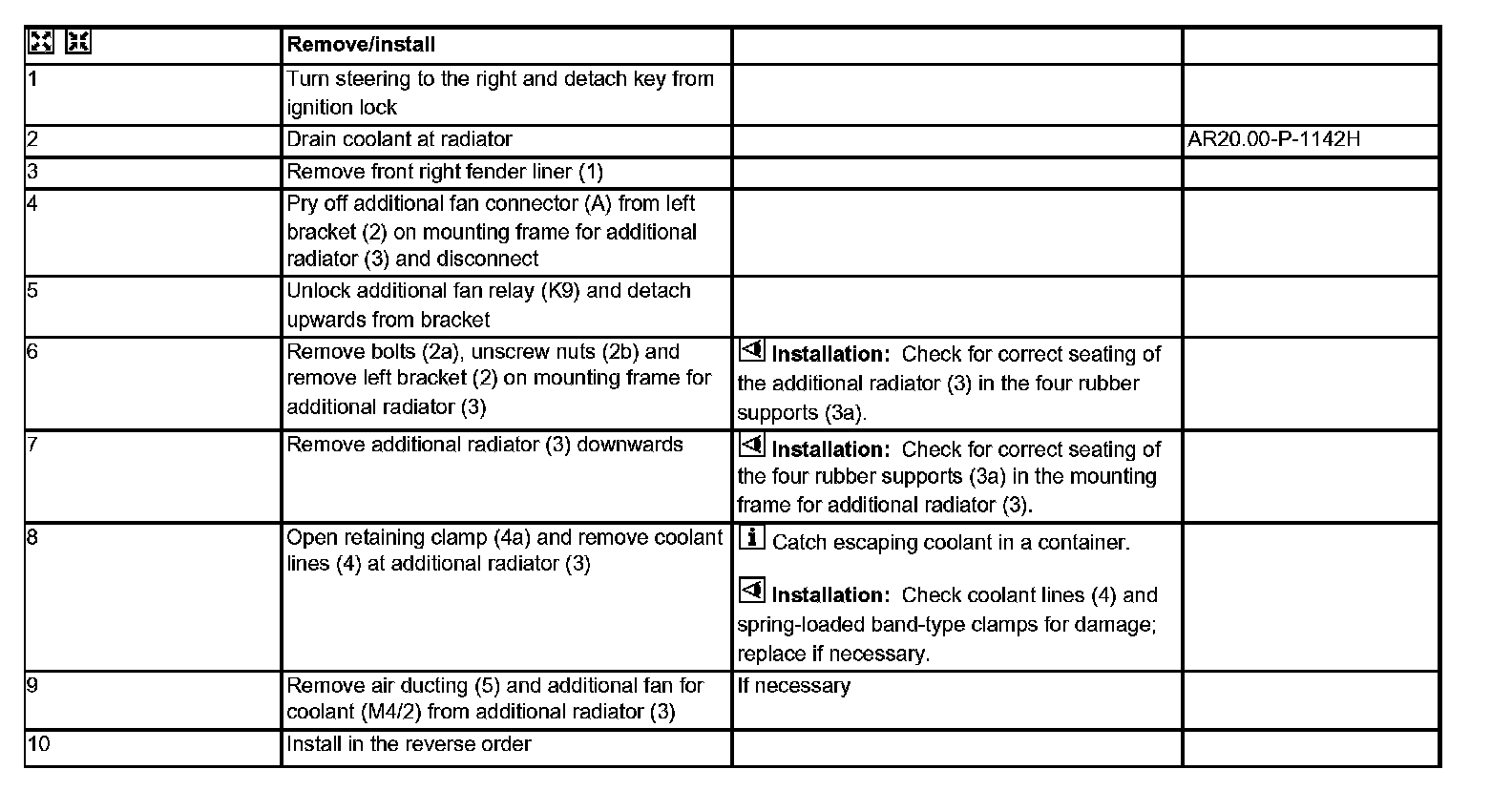

Remove/install Steps 1-10:
