Electronic Throttle Actuator: Service and Repair

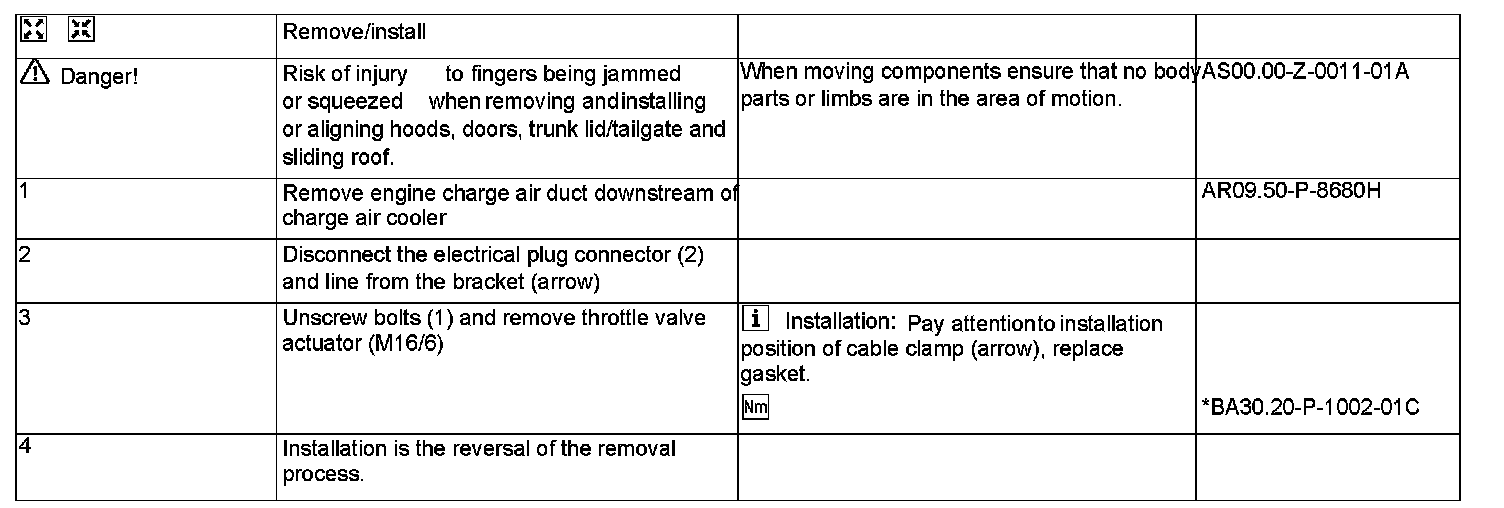

AR30.20-P-1262H Remove/Install Electronic Accelerator Actuator With Flap Connection

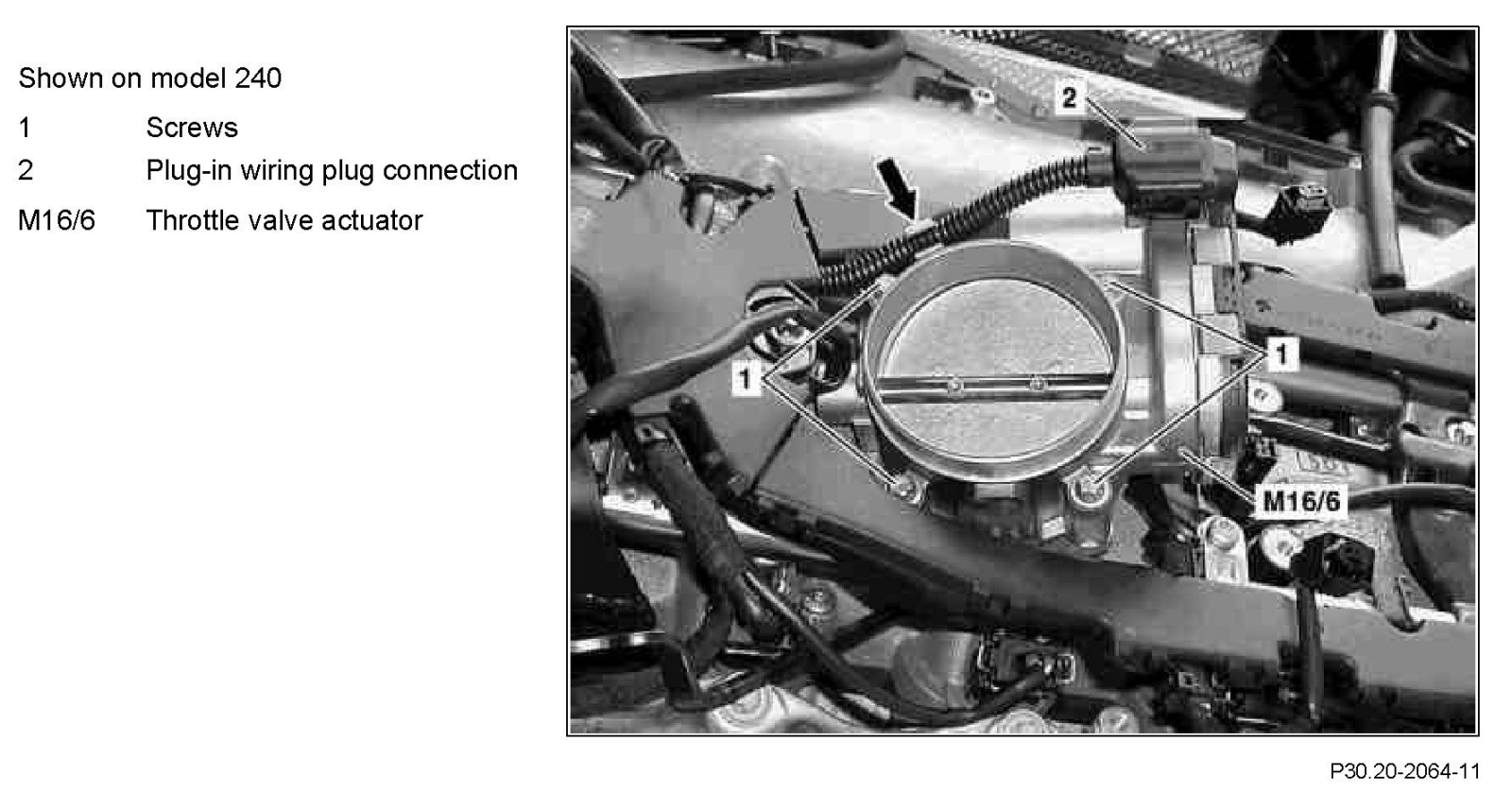

Electronic Accelerator Throttle Actuator:
