Home >> Mercedes Benz >> 2011 >> CL 65 AMG (216.379) V12-6.0L Turbo (275.982) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Piston >> Service and Repair

Piston: Service and Repair

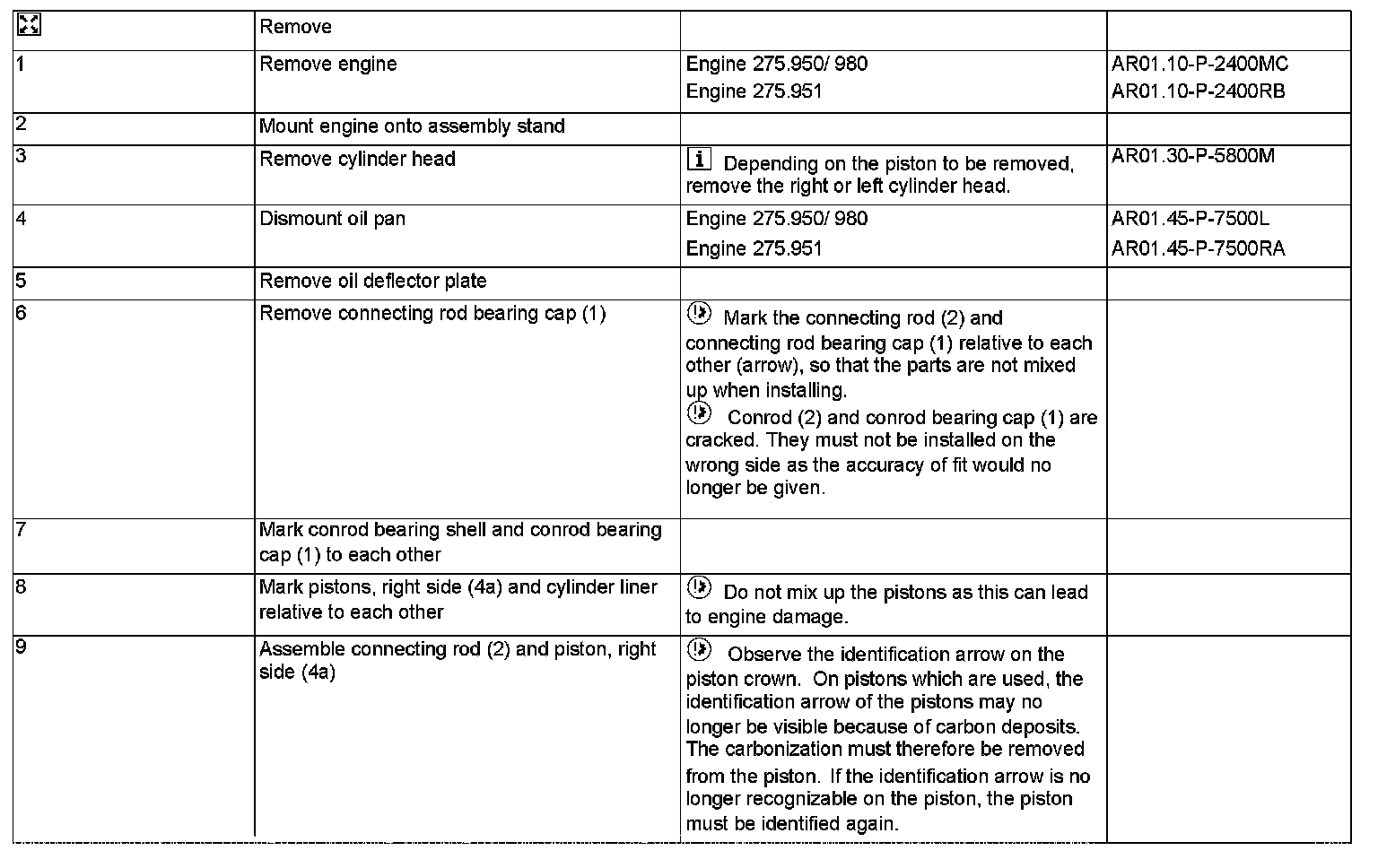

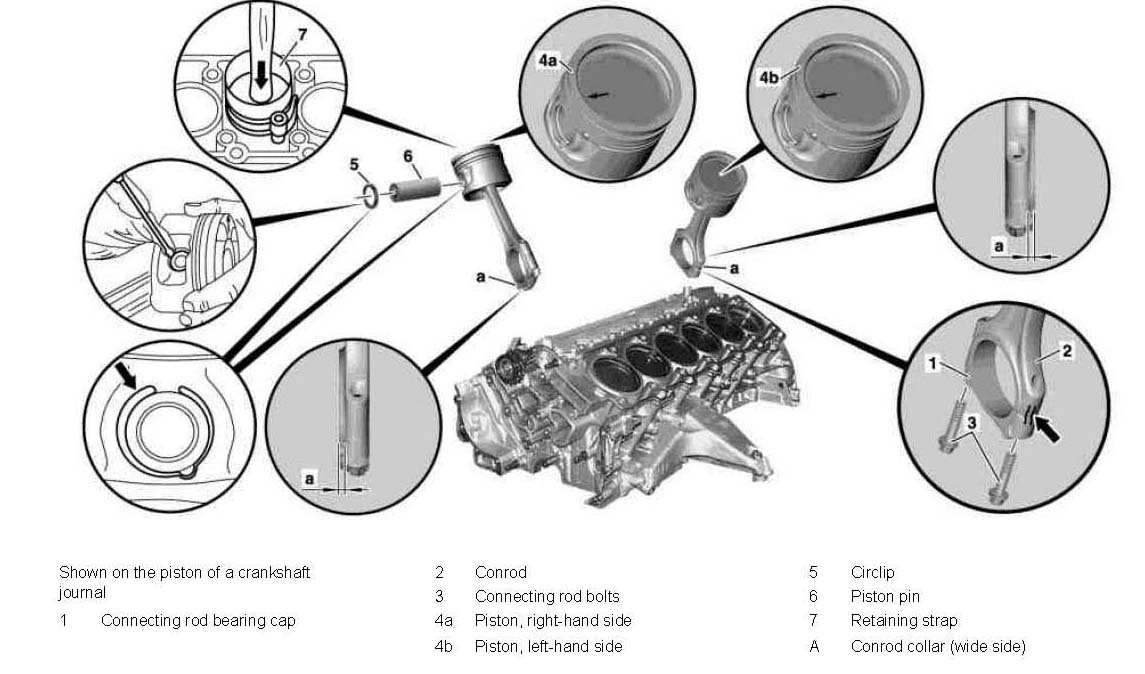

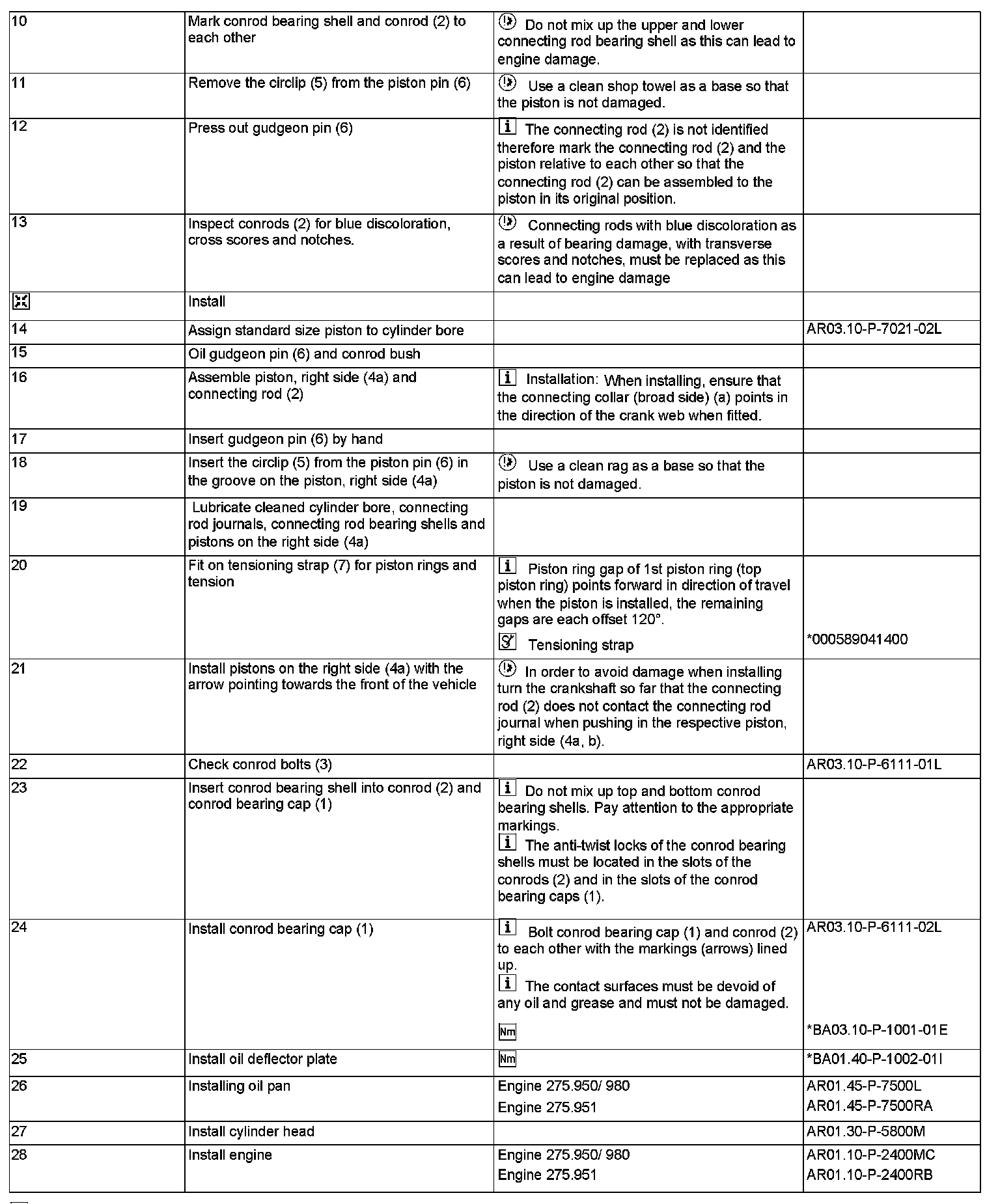

AR03.10-P-7021MC Piston removal and installation
