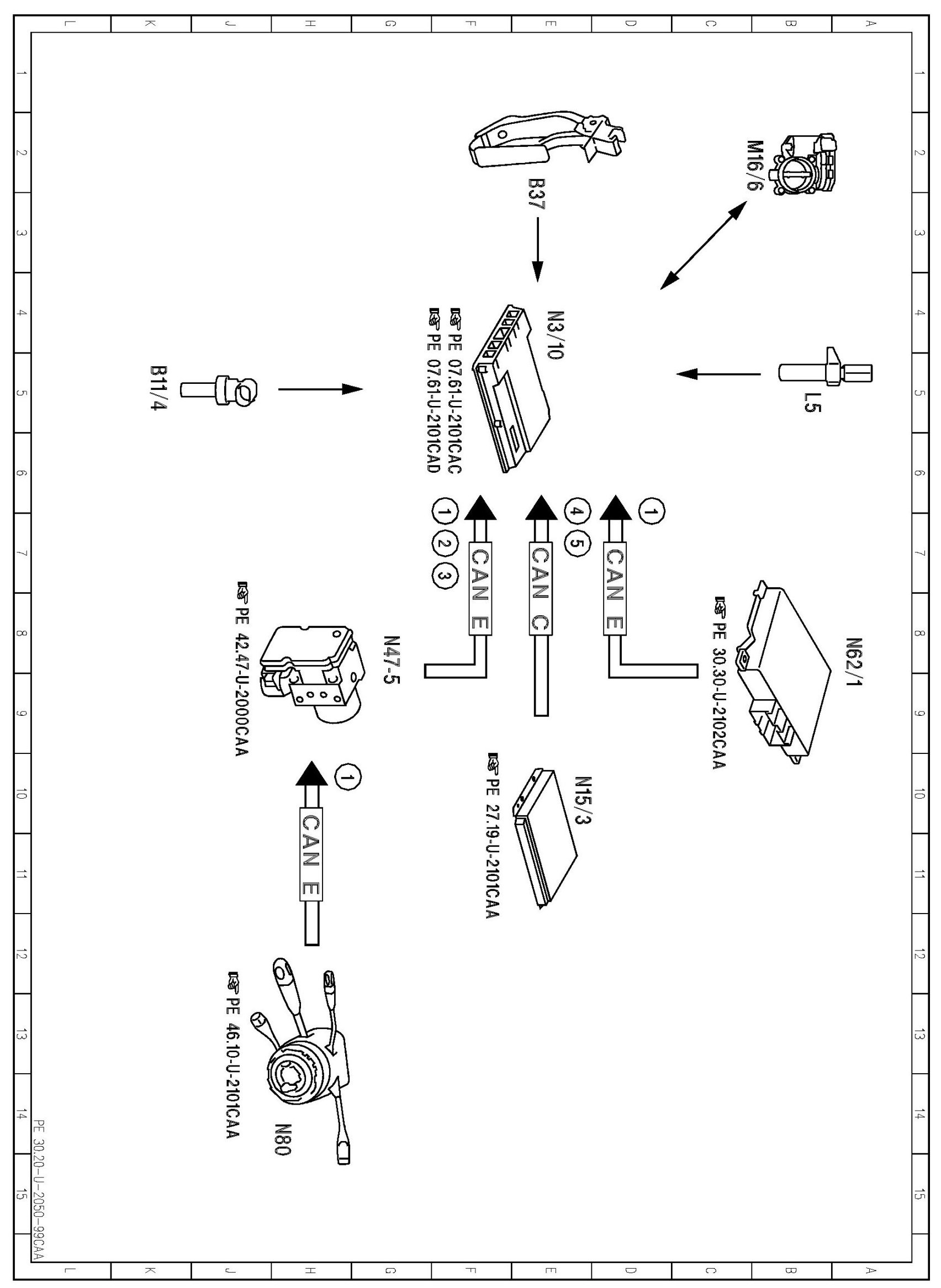

PE30.20-U-2050CAA Electrical Function Diagram For Electronic Accelerator Pedal

PE30.20-U-2050CAA Electrical Function Diagram For Electronic Accelerator Pedal

ENGINE 275 in MODEL 216
- as of Model Year 2009































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
