Wiper Motor: Service and Repair
AR82.30-P-6800SX Remove/Install
Wiper Motor

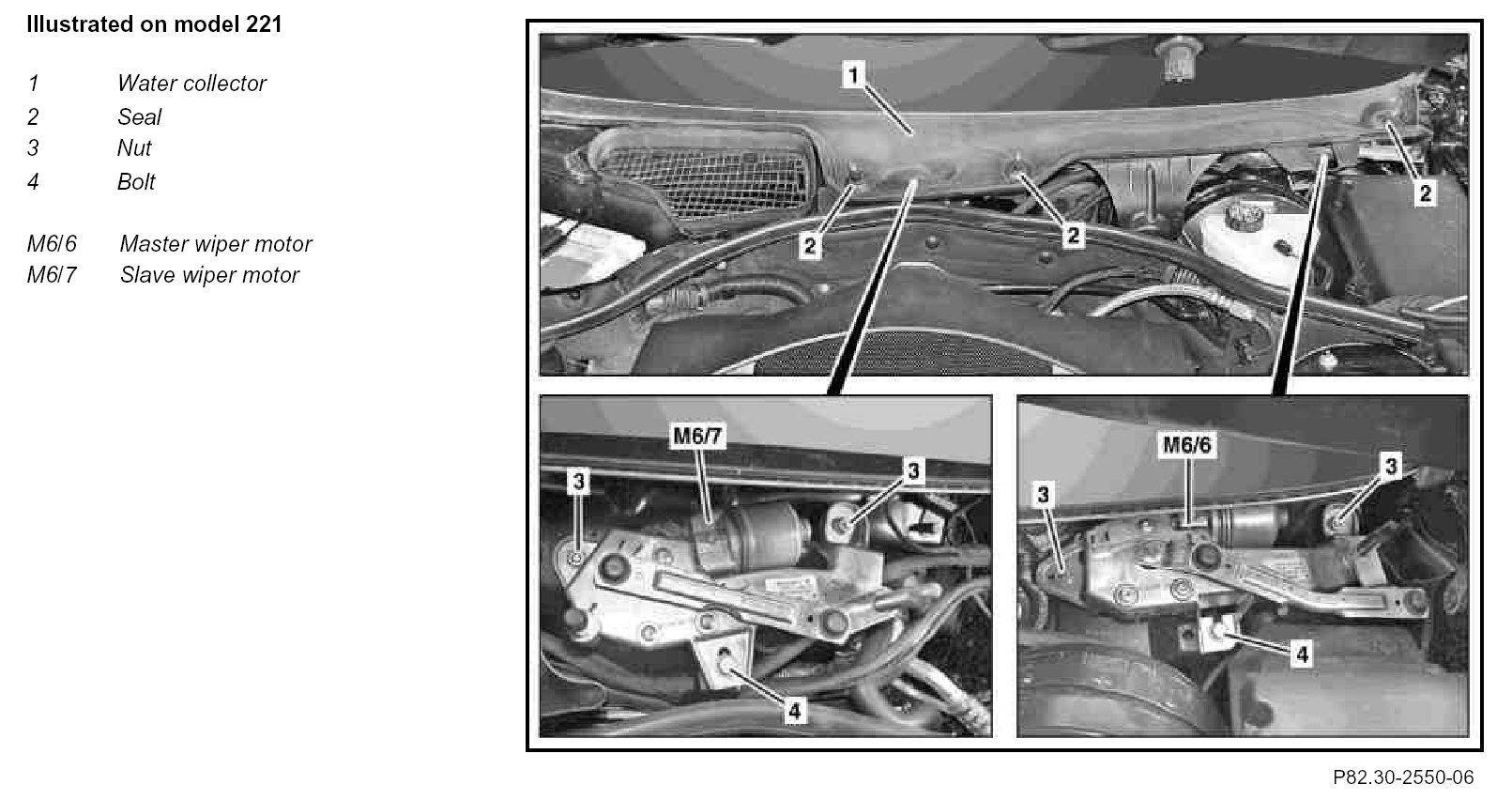

Component Identification:

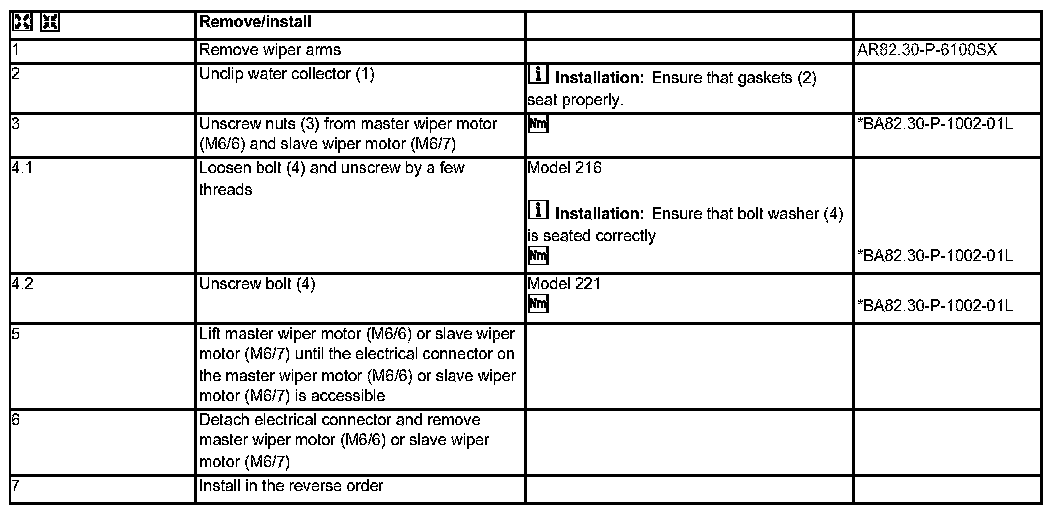

Steps 1 - 7:

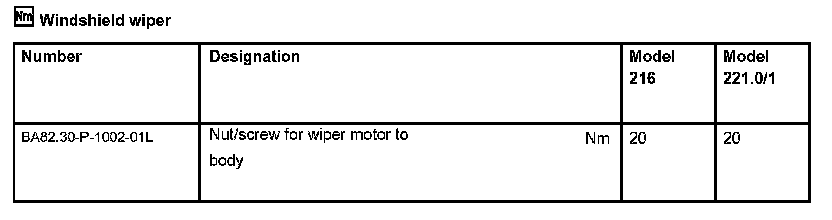

Windshield Wiper:
