Home >> Mercedes Benz >> 2011 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Quarter Window Regulator >> Service and Repair

Quarter Window Regulator: Service and Repair



AR67.39-P-4150SC Remove/install Power Window On Rear Side Window

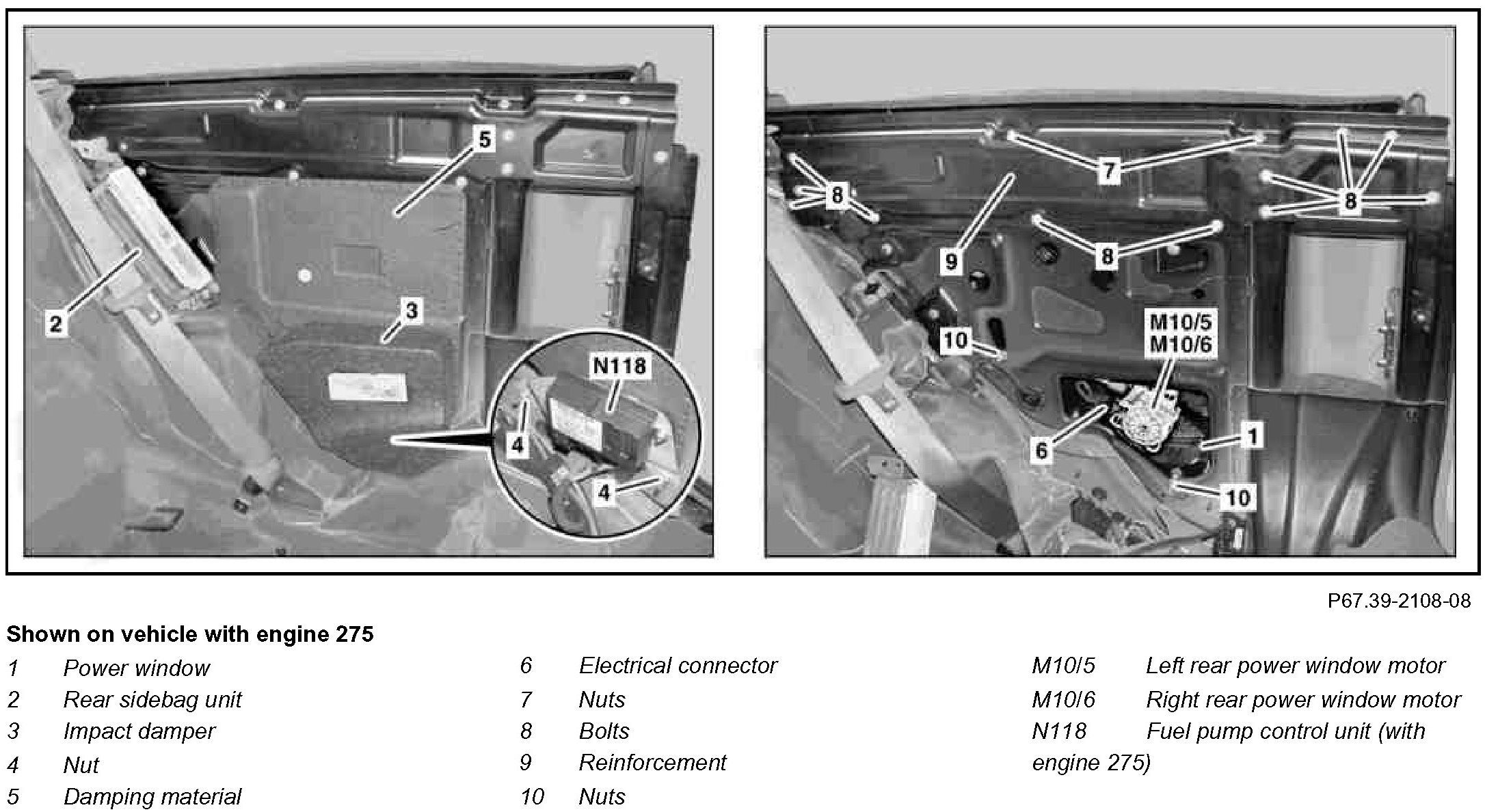

Component Identification:




Modification Notes:

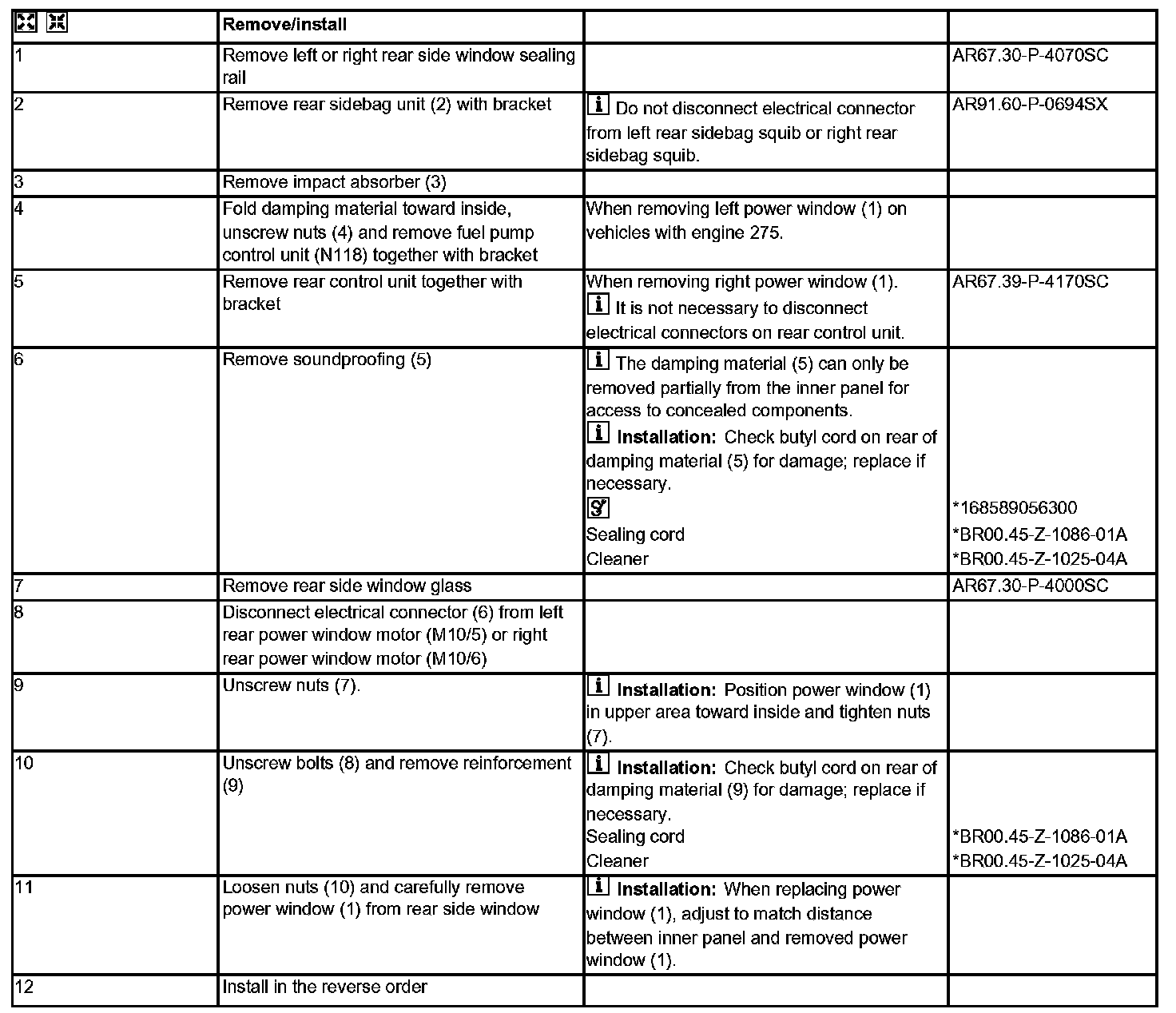

Steps 1-12:

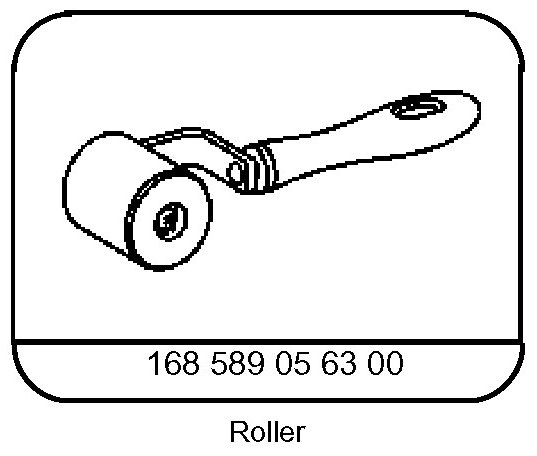

Special Tool:

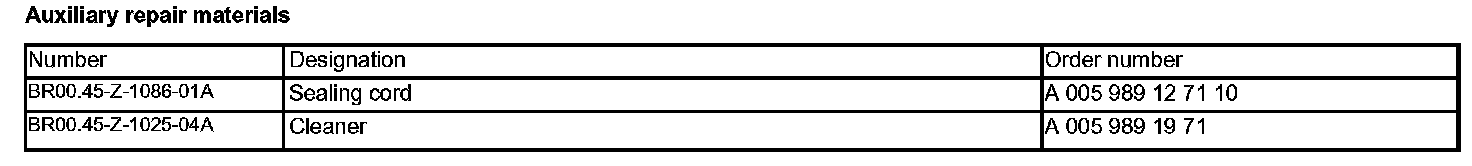

Auxiliary Repair Materials:
