Rear Axle
AR35.31-P-0554SX Remove/install end cover at rear axle differential

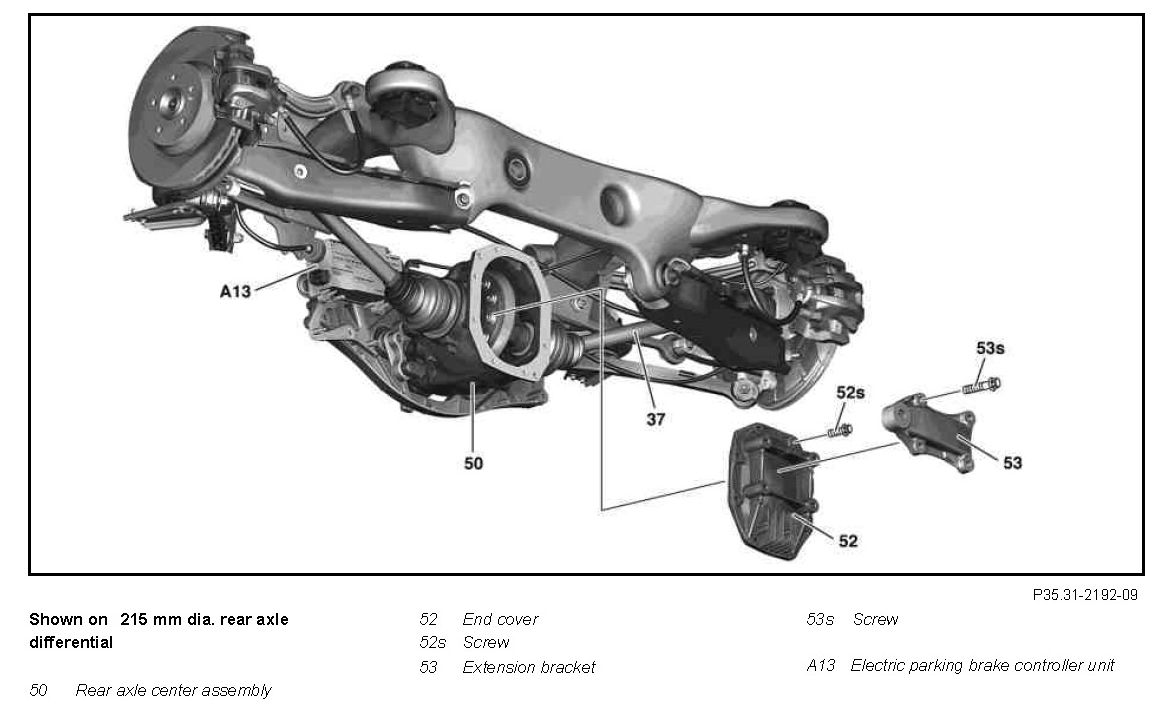

Component Identification:

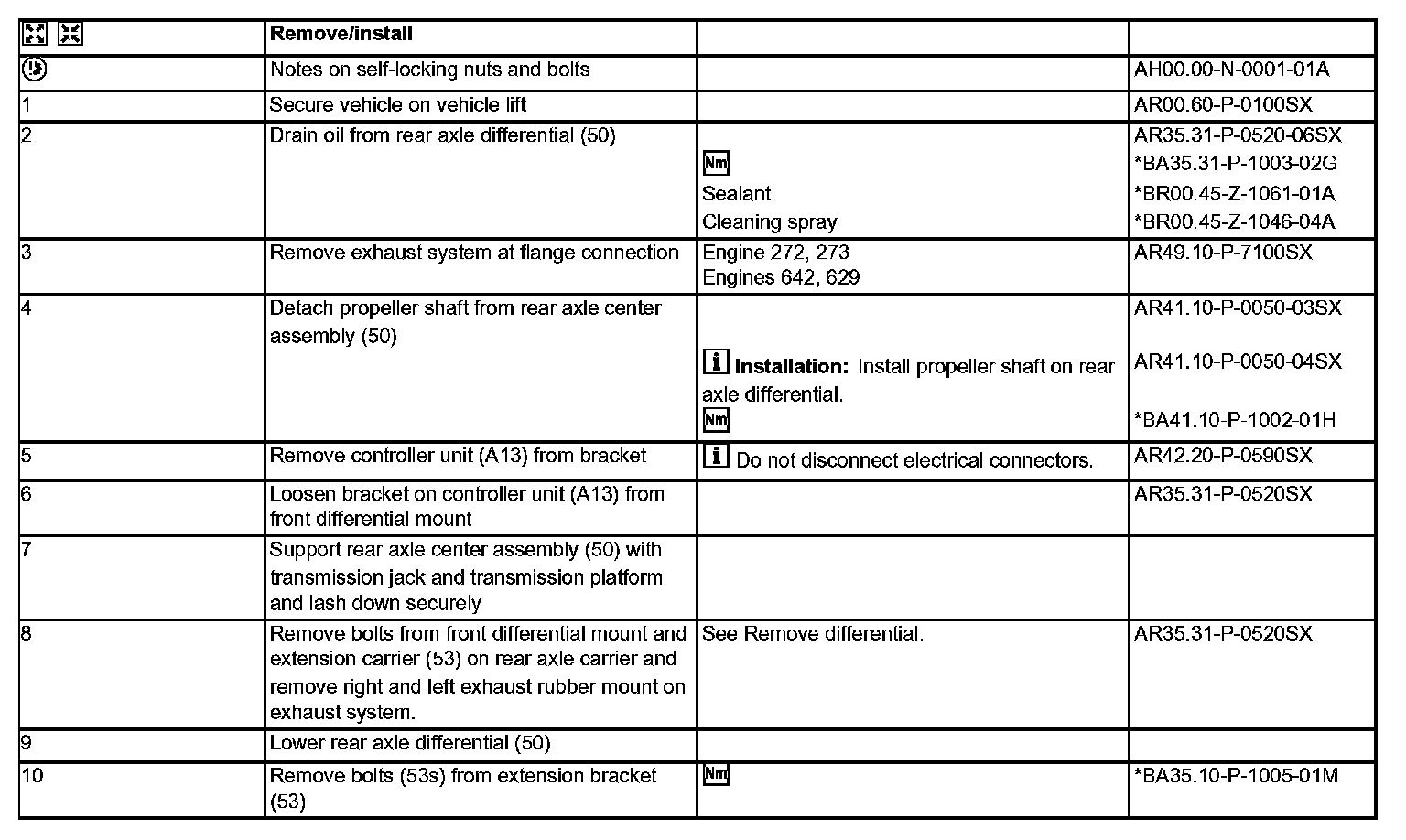

Remove/install Steps 1-10:

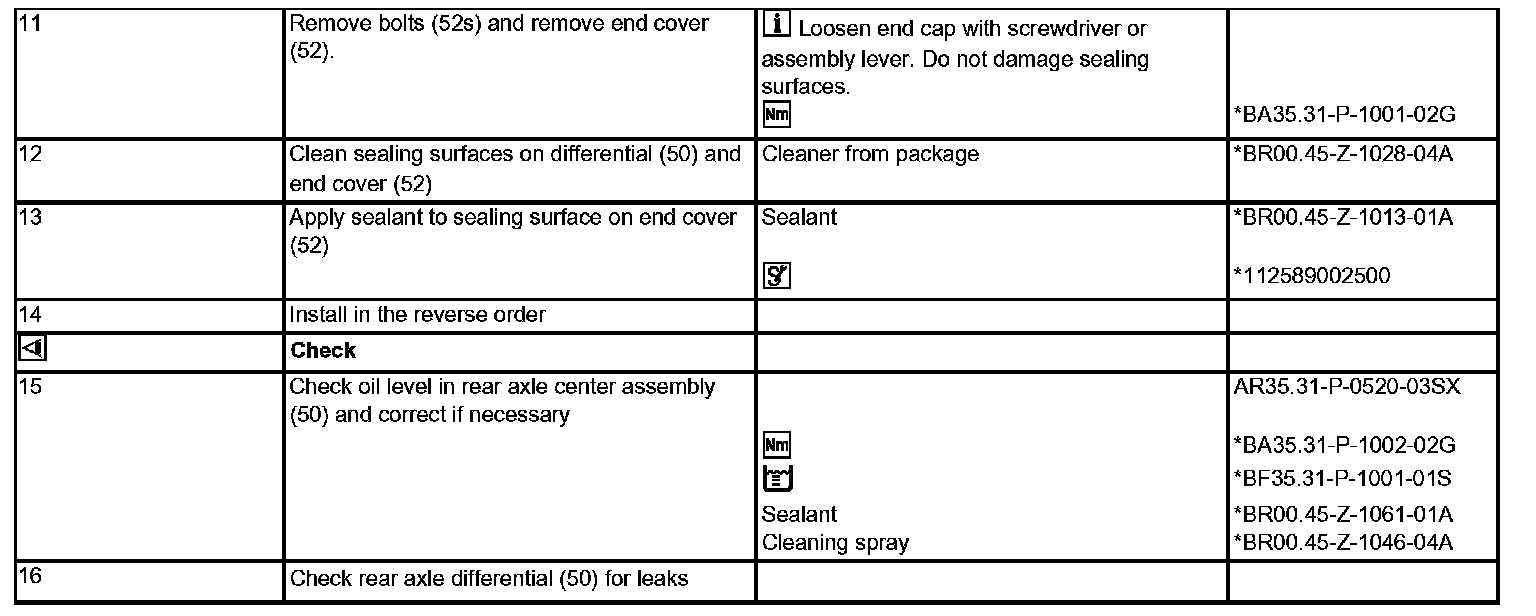

Remove/install Steps 11-16:

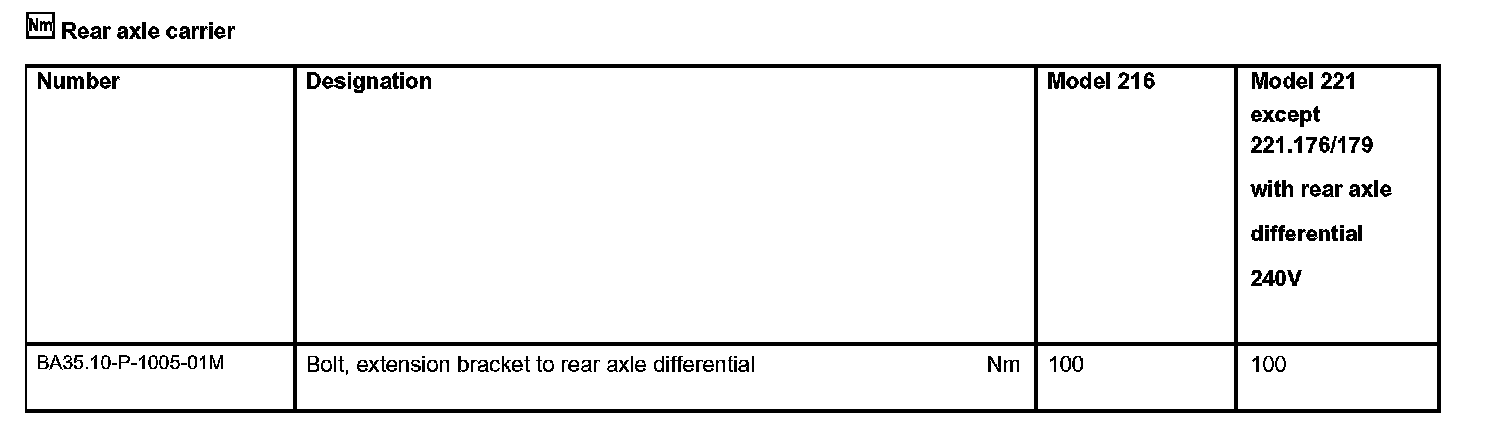

Rear axle carrier:

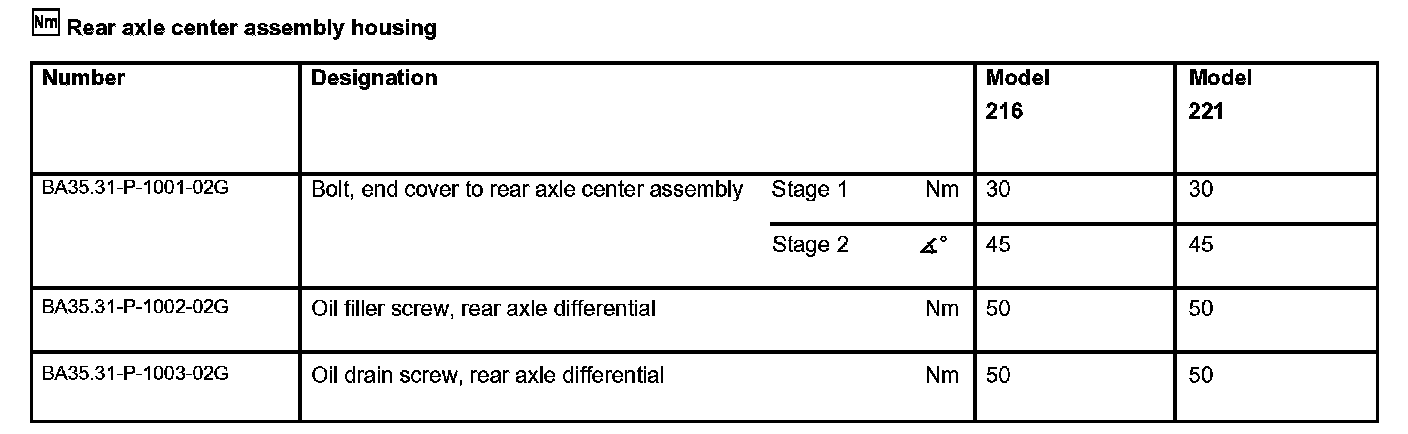

Rear axle center assembly housing:

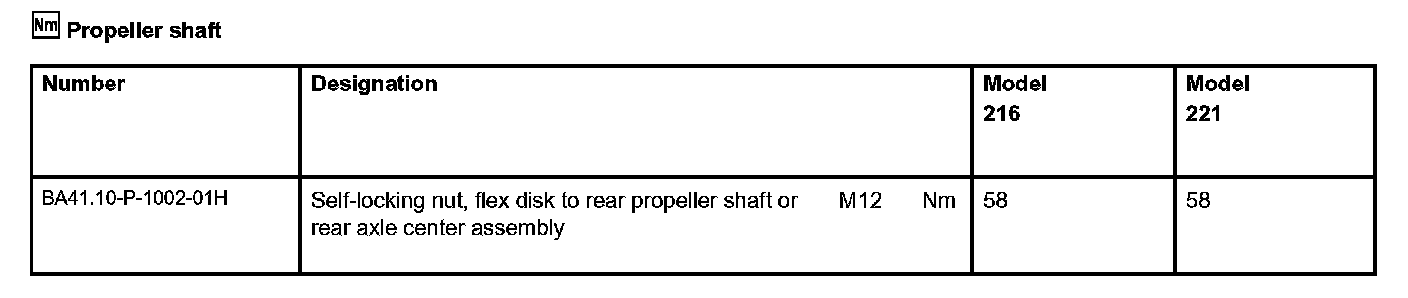

Propeller shaft:

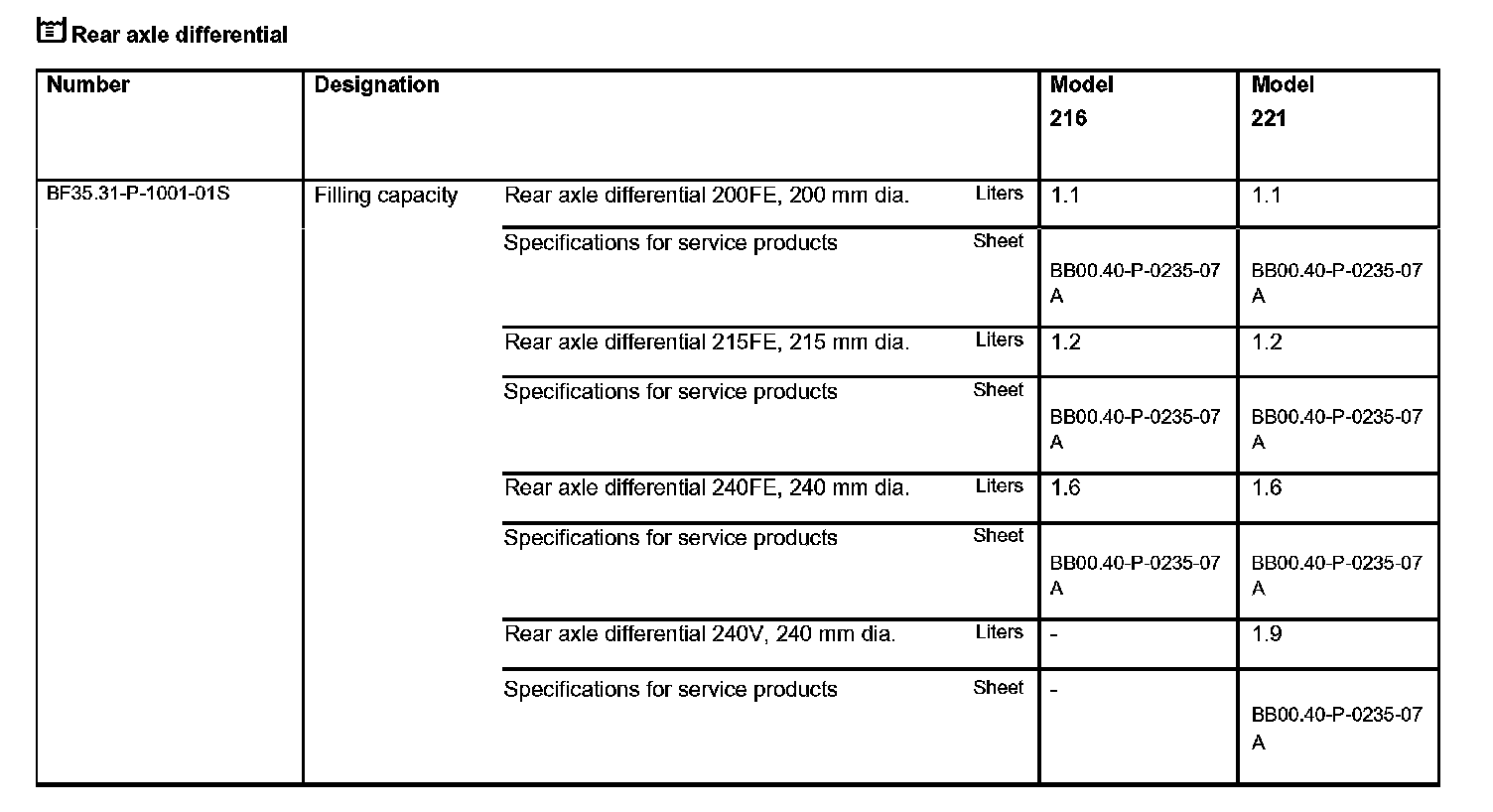

Rear axle differential:

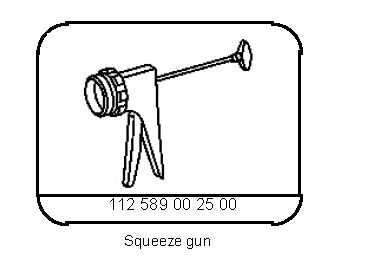

Special Tools:
Repair materials:
