Home >> Mercedes Benz >> 2011 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Steering and Suspension >> Wheels and Tires >> Tires >> Description and Operation >> GF40.10-P-1009IC Overview of Tire Air Pressure Labels

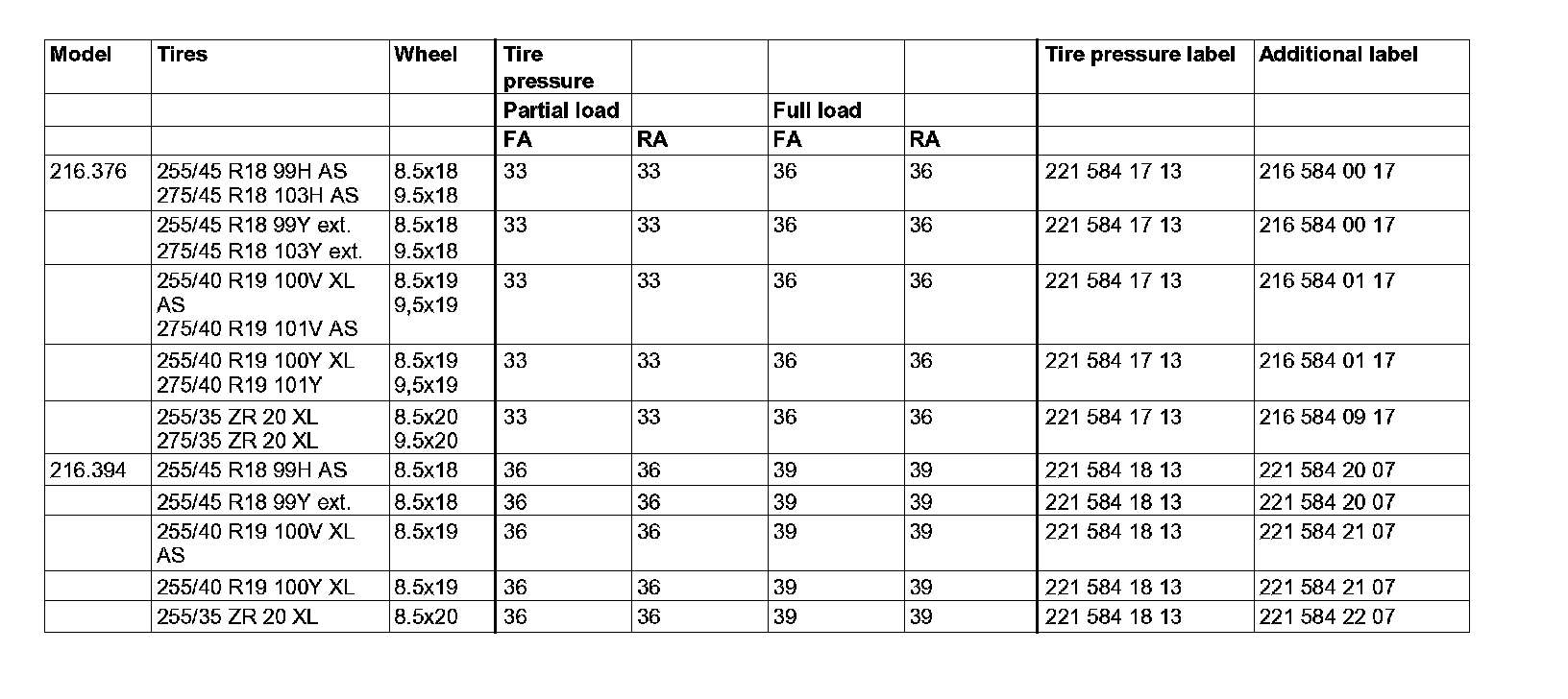

GF40.10-P-1009IC Overview of Tire Air Pressure Labels




GF40.10-P-1009IC Overview of Tire Air Pressure Labels
- MODEL 216 / (except 216.374 /379)
- with CODE (494) USA version
