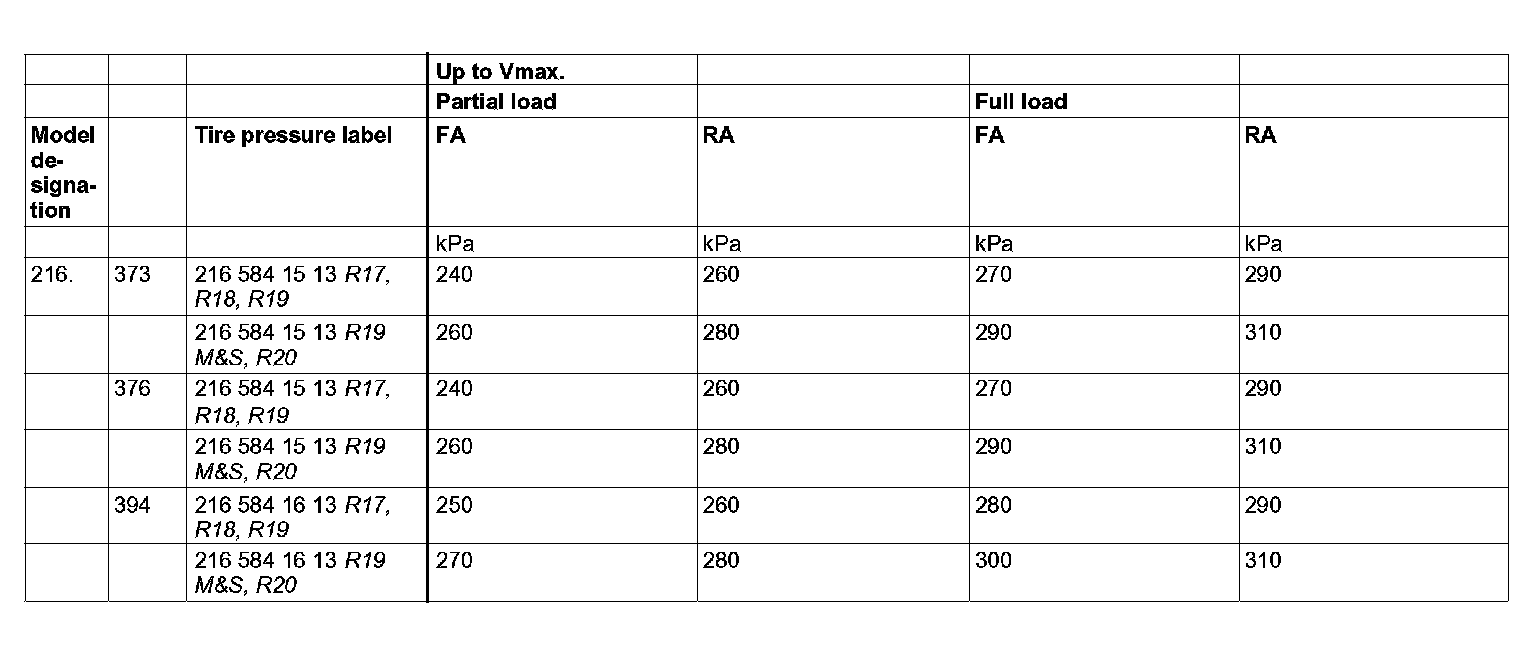

GF40.10-P-1009IA Overview of Tire Air Pressure Labels

GF40.10-P-1009IA Overview of Tire Air Pressure Labels
- MODEL 216 / / (except 216.374 /377 /379)
- except CODE (625) Australia version
- except CODE (494) USA version

Conversion from kilopascals (kPa) to bar (bar):
100 kPa = 1.0 bar
Example: 230 kPa = 2.3 bar
