AR33.20-P-0426SX Checking Follower Joint of Steering Knuckle Mount (Installed)



AR33.20-P-0426SX Checking follower joint of steering knuckle mount (installed)

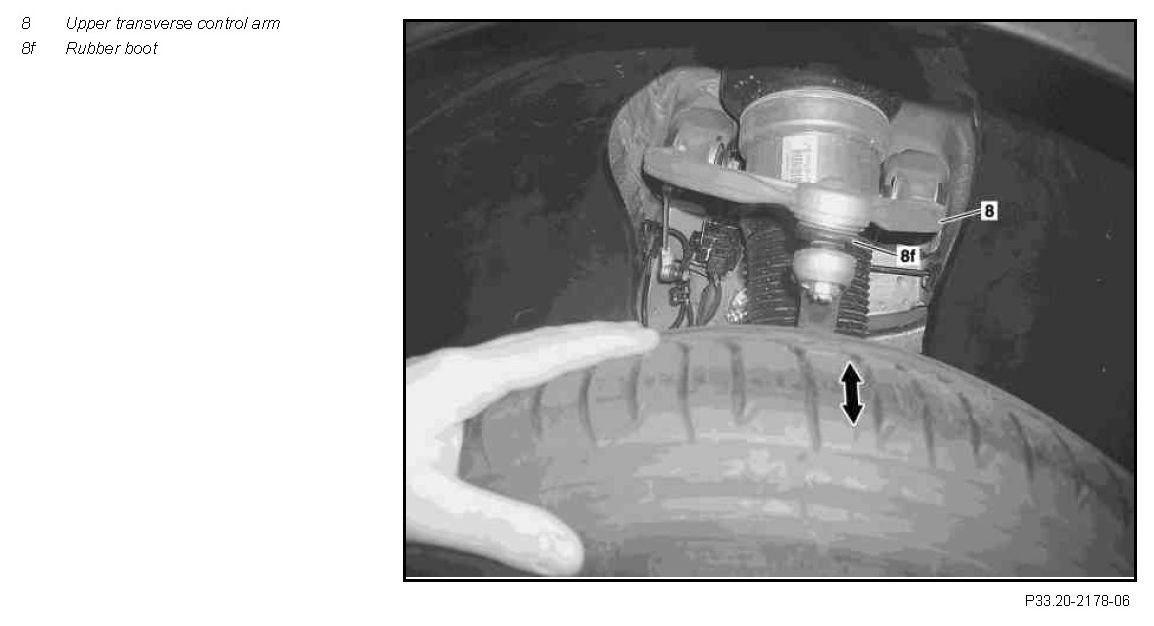

Component Identification:

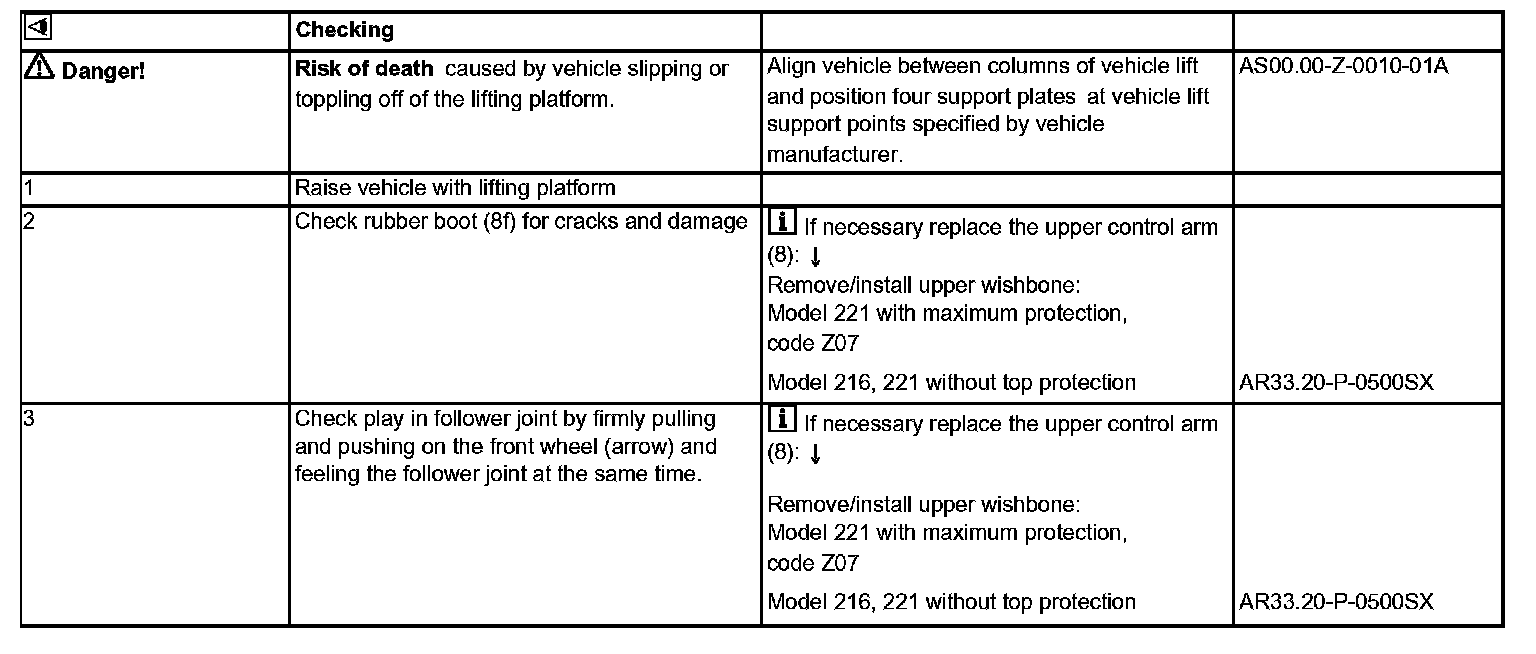

Steps 1-3:
