AR46.25-P-1000SY Remove/Install Expansion Reservoir



AR46.25-P-1000SY Remove/install expansion reservoir
- with CODE (487) Active Body Control (ABC)

Component Identification:

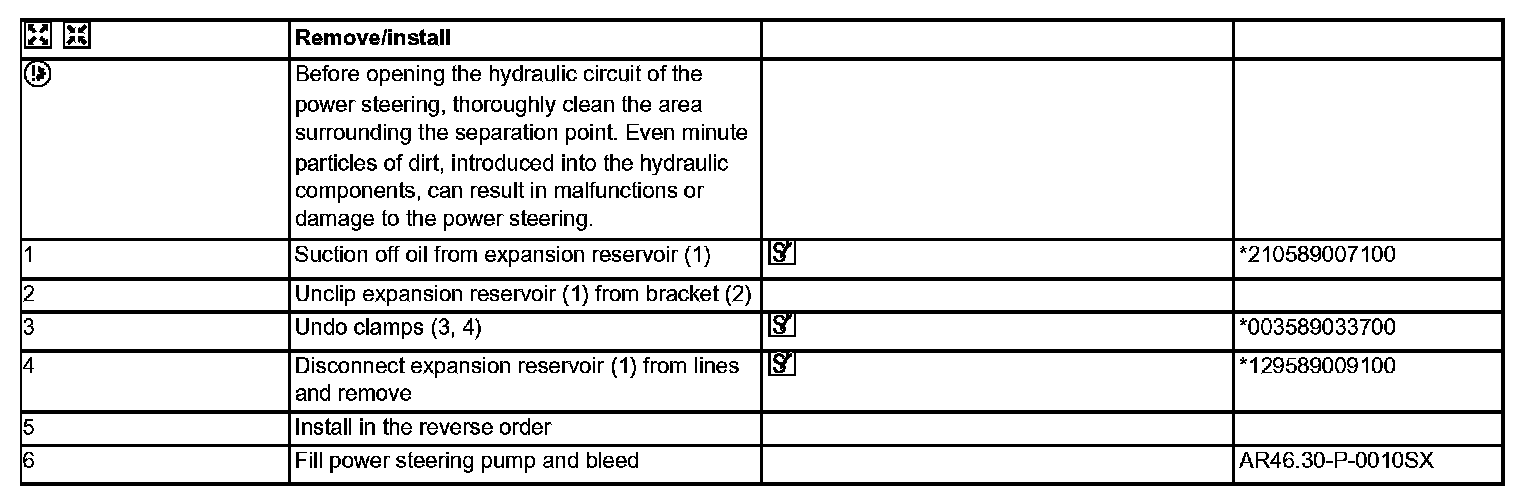

Remove/install Steps 1-6:

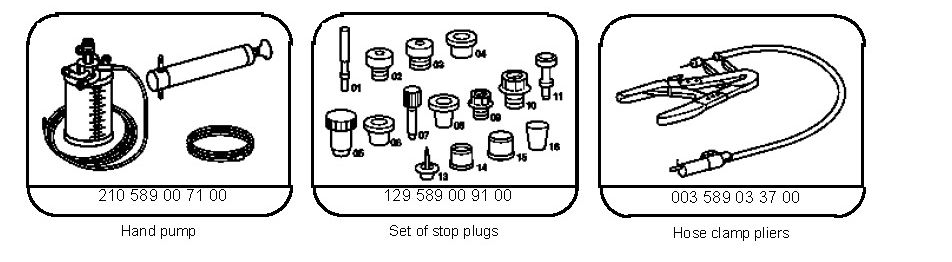

Special Tools:
