AR46.25-P-1000SXH Remove/Install Expansion Reservoir



AR46.25-P-1000SXH Remove/install expansion reservoir
- with electrohydraulic power steering (EHPS)

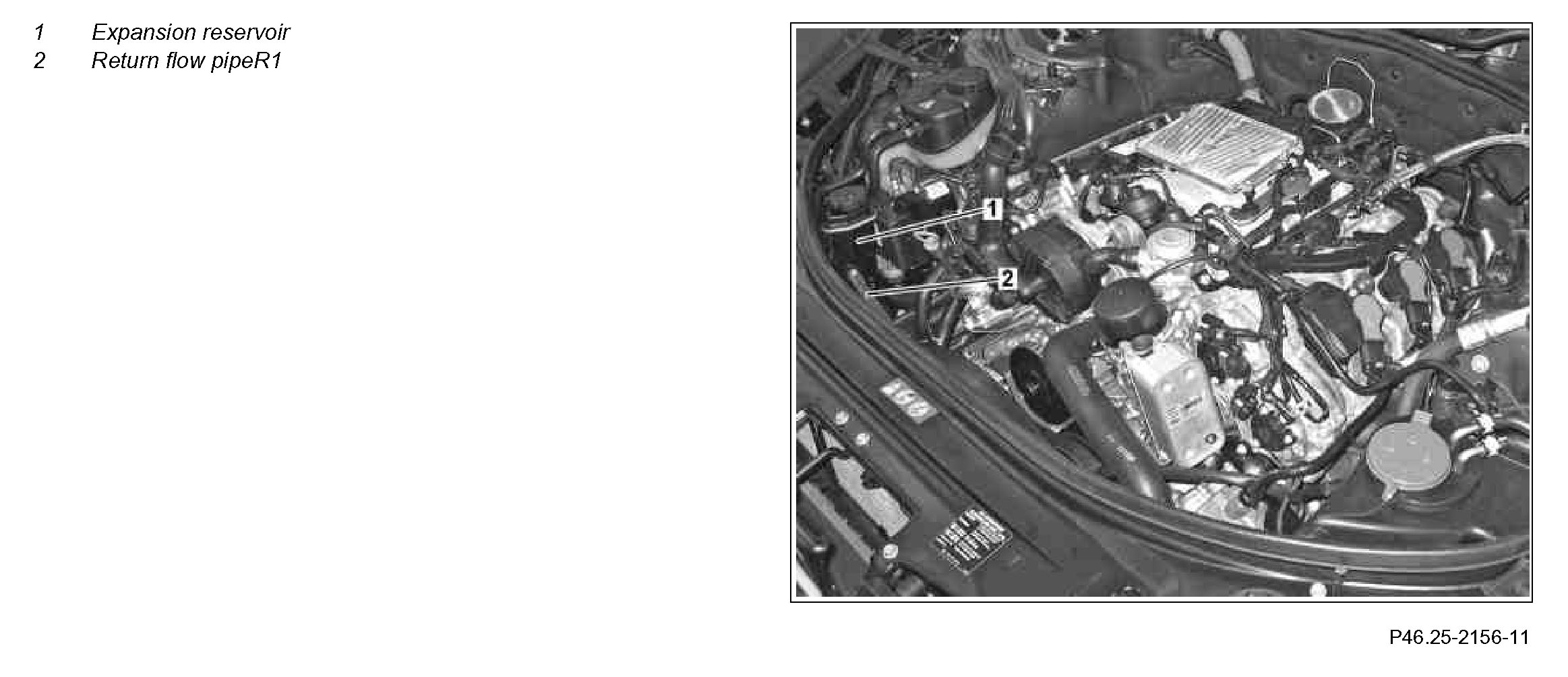

Component Identification:

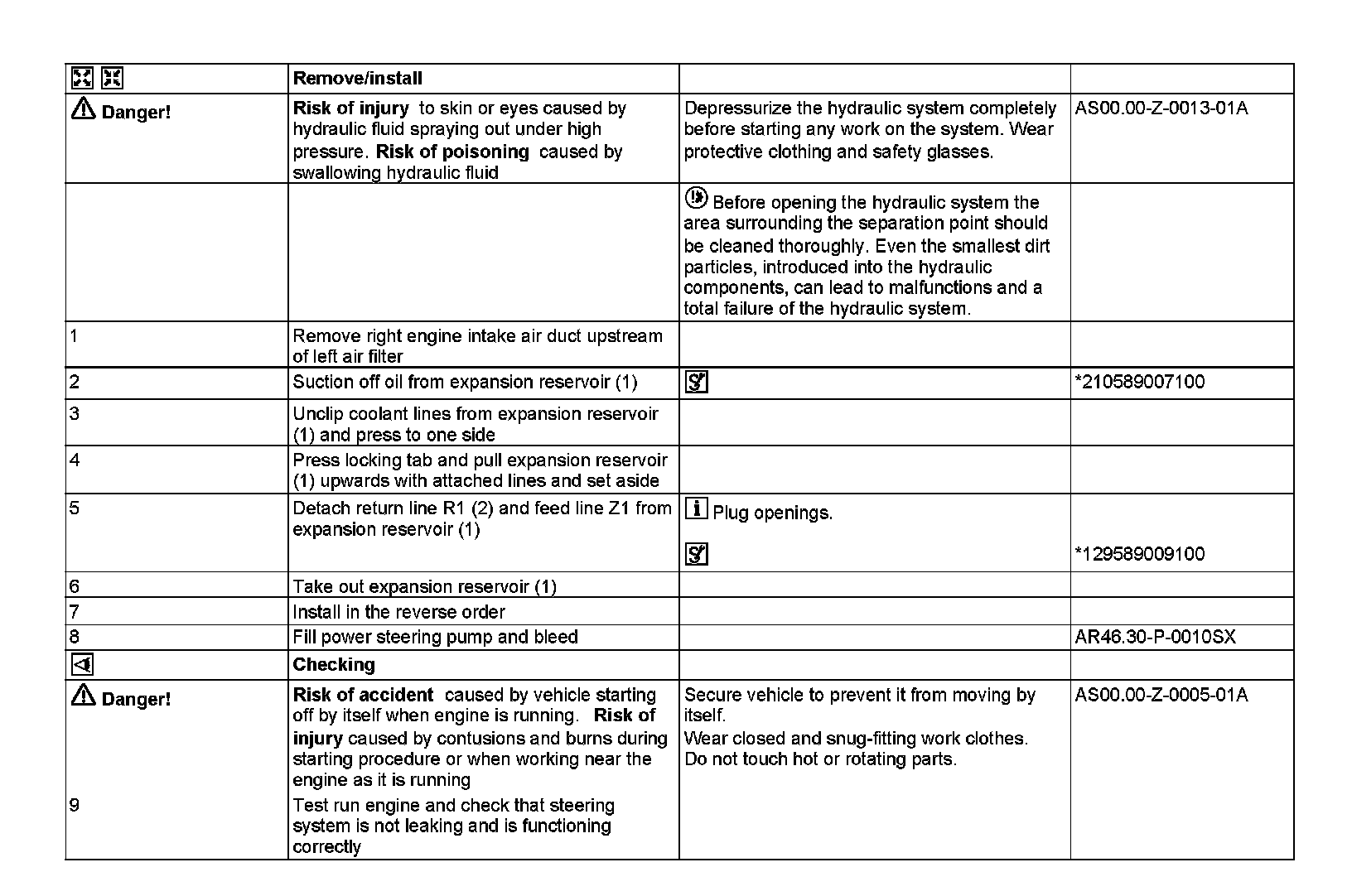

Steps 1-9:

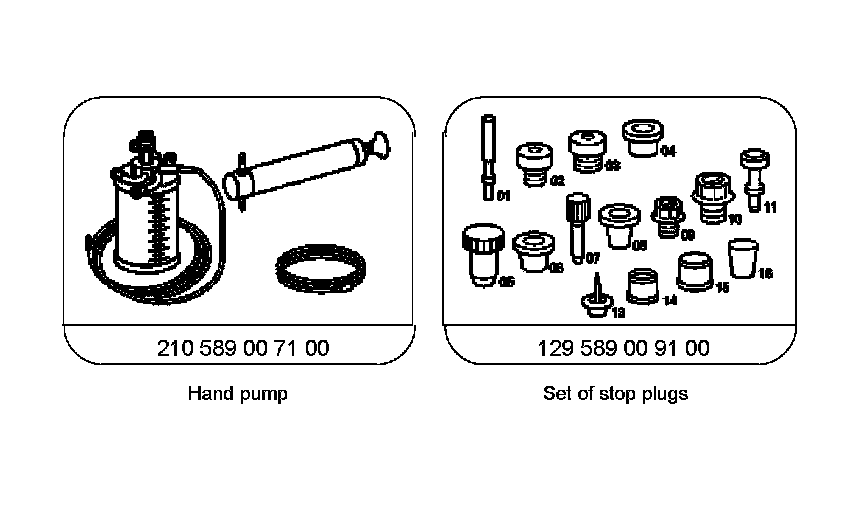

Special Tools:
