Vehicle Level - Rear Axle



BE40.20-P-1000-030 Vehicle level - rear axle

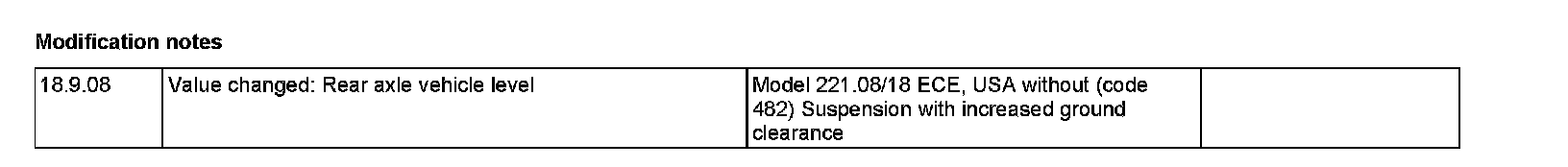

Modification notes:

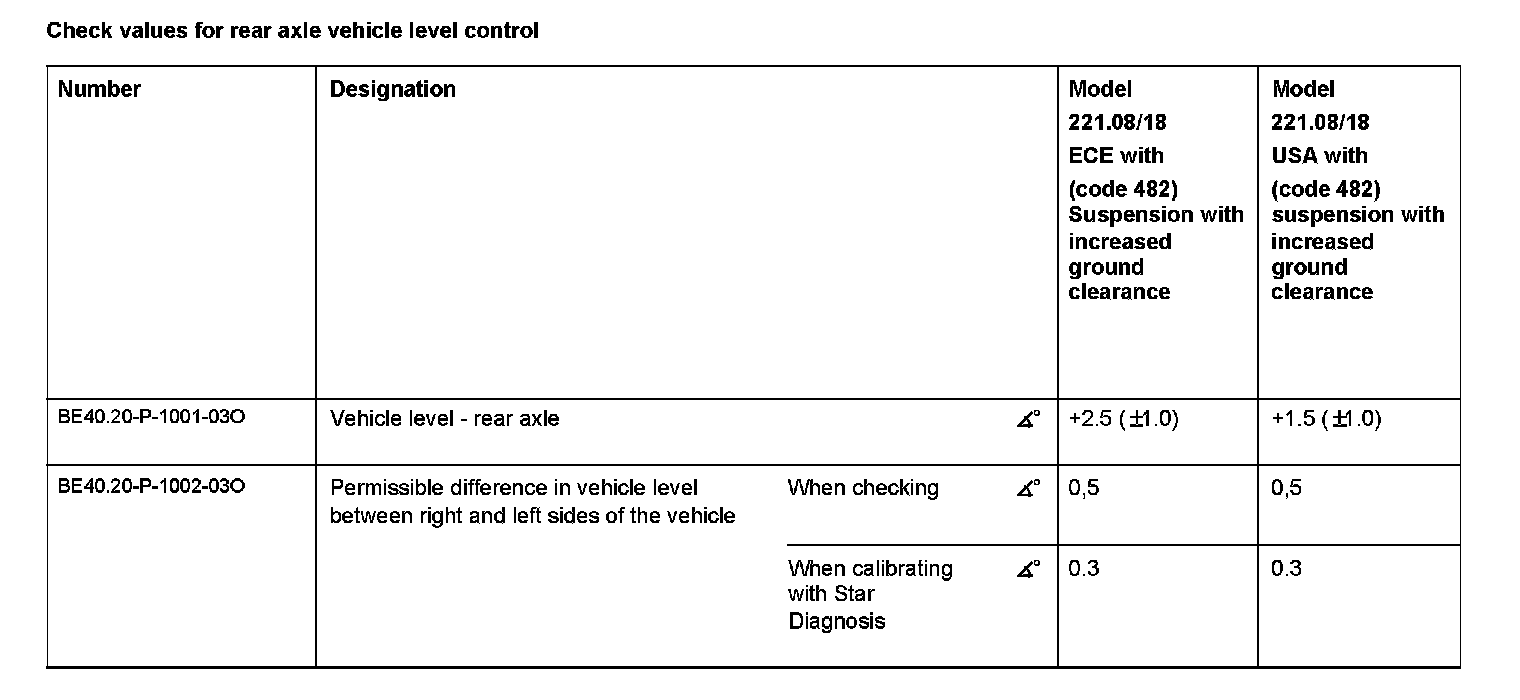

Check values for rear axle vehicle level control:

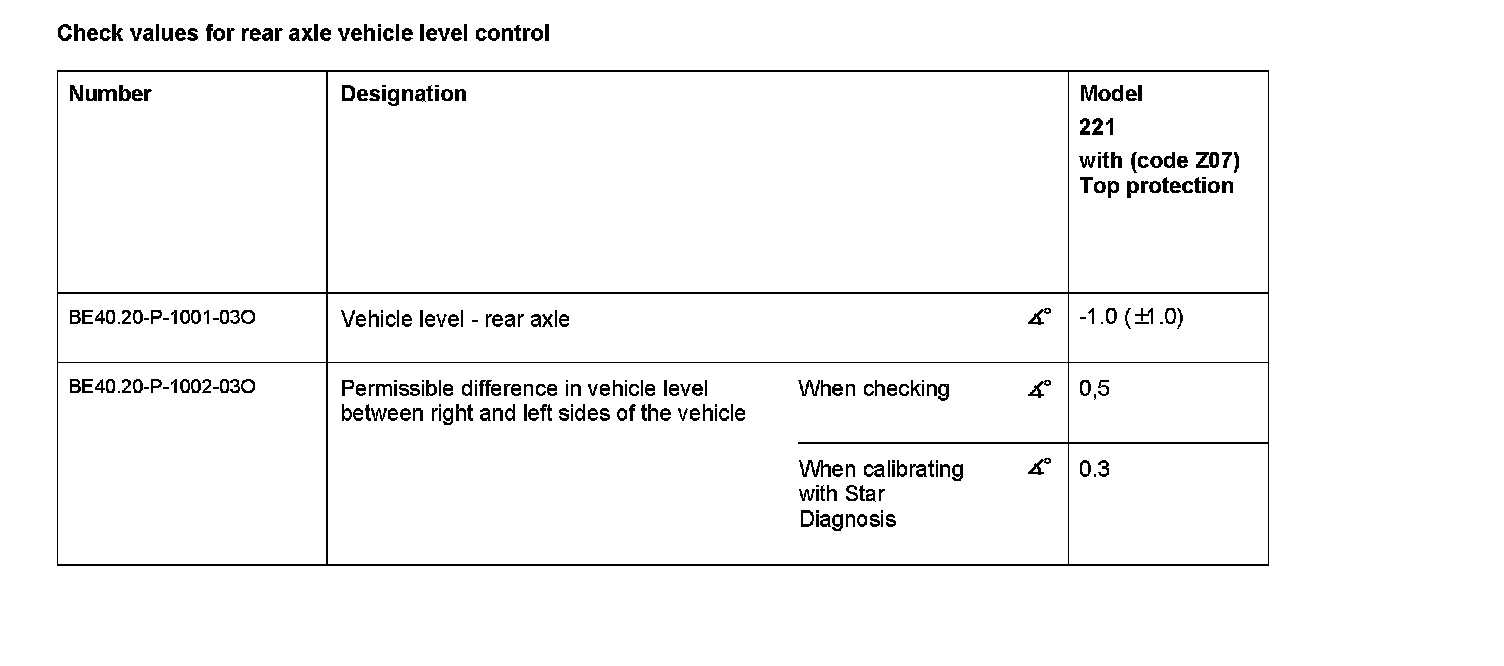

Check values for rear axle vehicle level control:

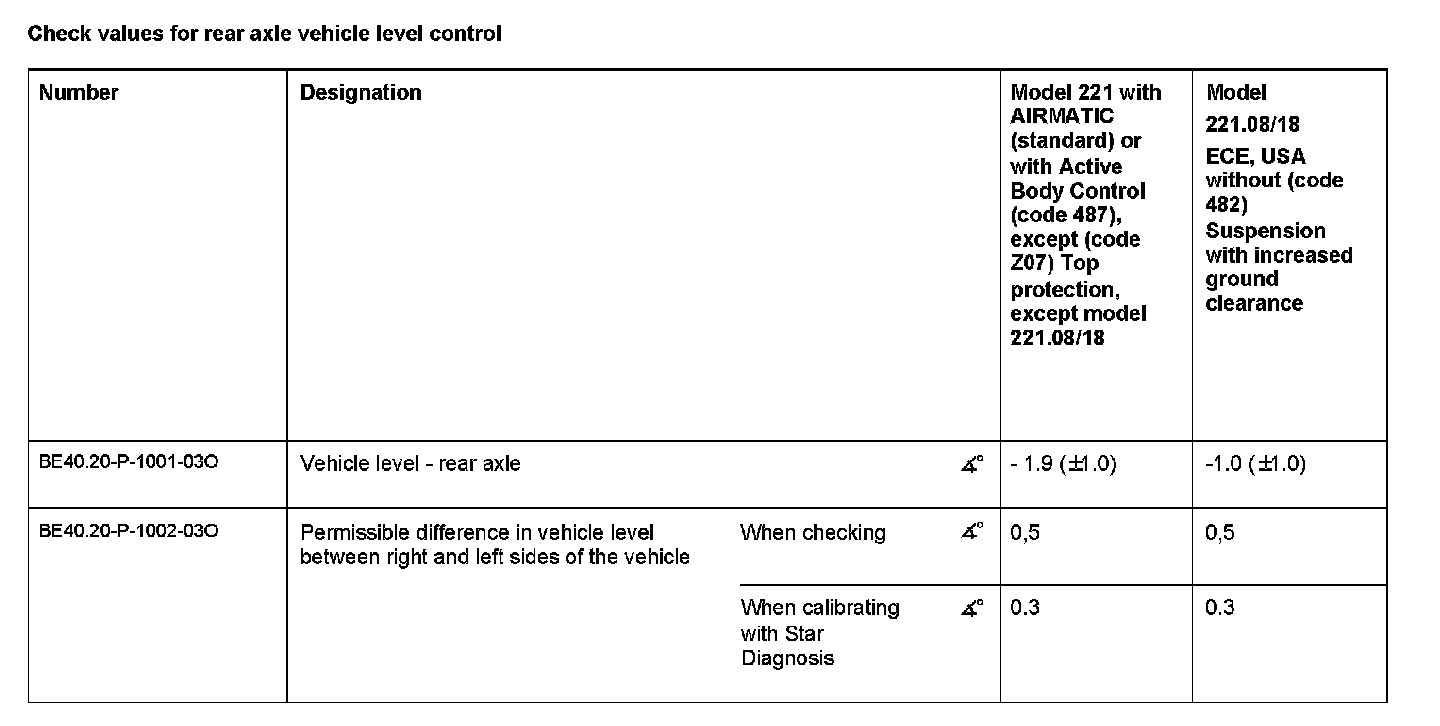

Check values for rear axle vehicle level control:

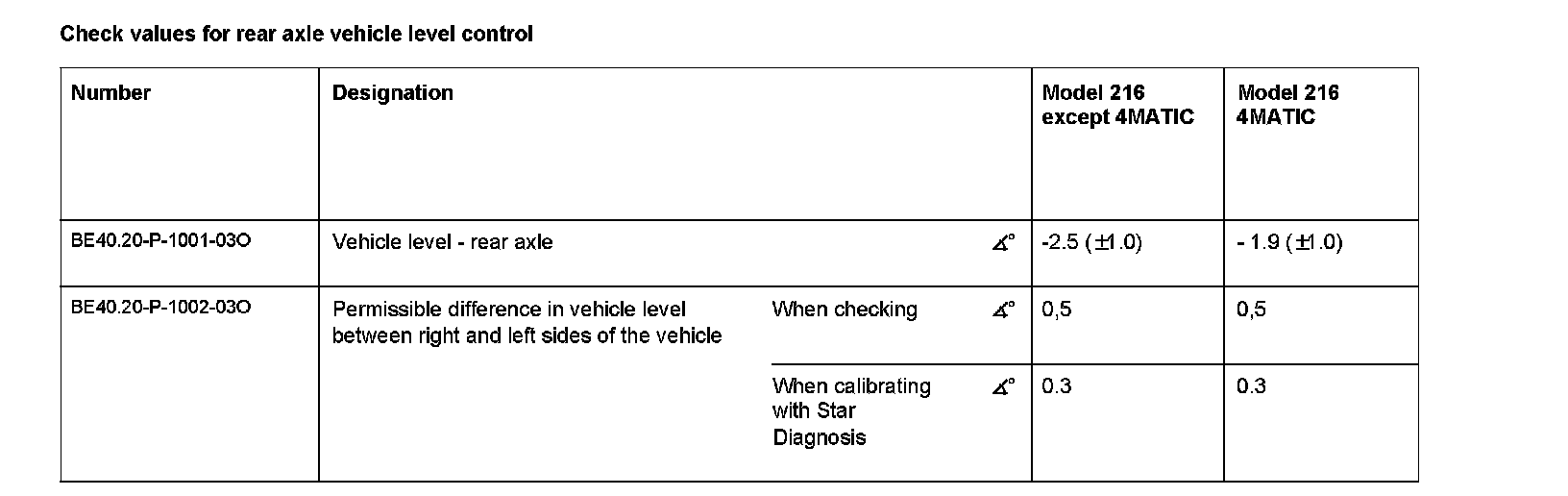

Check values for rear axle vehicle level control:
