Ignition Coil Pack: Service and Repair

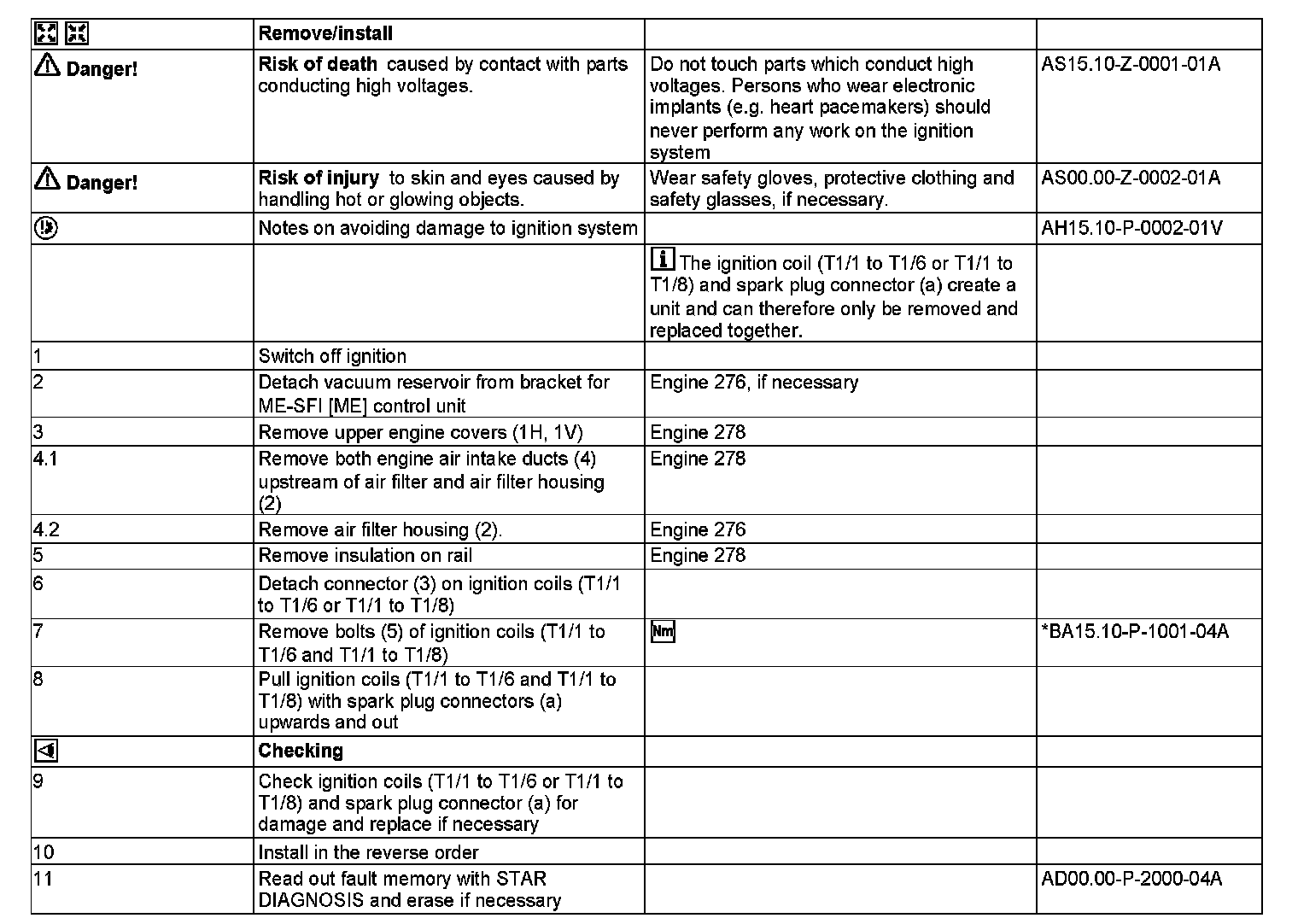

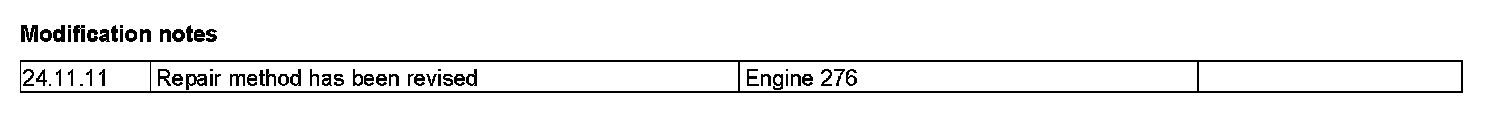

AR15.12-P-2003MM Remove/Install Ignition Coils
ENGINES 157, 278 in MODEL 216
ENGINES 157, 276, 278 in MODEL 221





Shown on engine 157

1H Rear section of engine cover
1V Front section of engine cover
2 Air cleaner housing
3 Connector
4 Engine air intake duct
5 Screw
a Spark plug connector

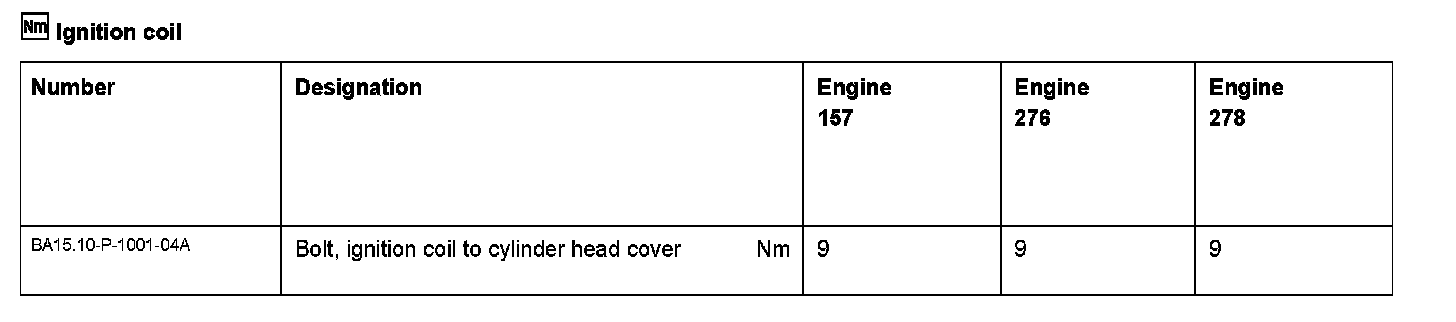

T1/1 Cylinder 1 ignition coil
T1/2 Cylinder 2 ignition coil
T1/3 Cylinder 3 ignition coil
T1/4 Cylinder 4 ignition coil
T1/5 Cylinder 5 ignition coil
T1/6 Cylinder 6 ignition coil
T1/7 Cylinder 7 ignition coil
T1/8 Cylinder 8 ignition coil
