Intercooler Duct: Service and Repair

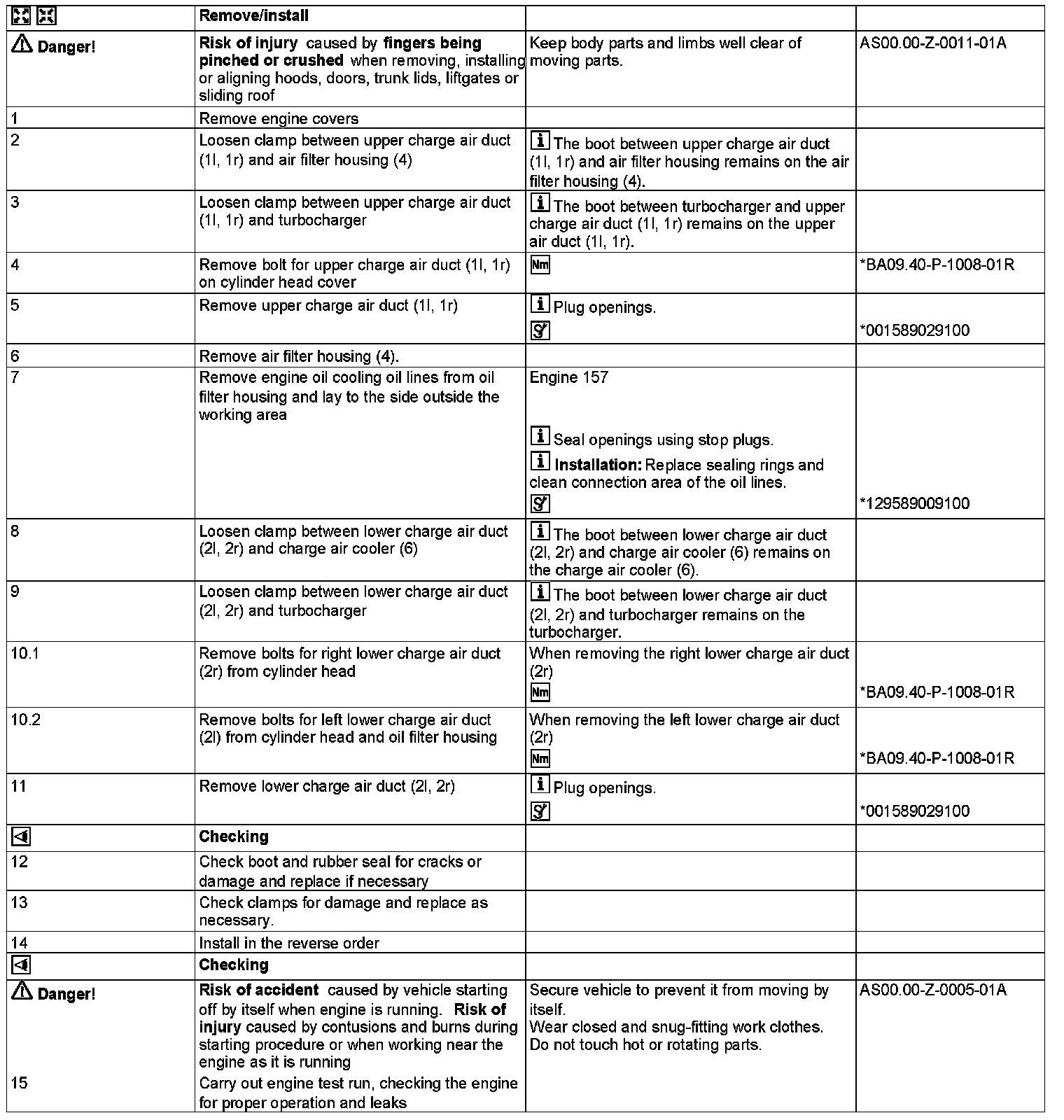

AR09.41-P-8620MMB Remove/install Charge Air Ducts
- ENGINES 157, 278 in MODEL 216, 221

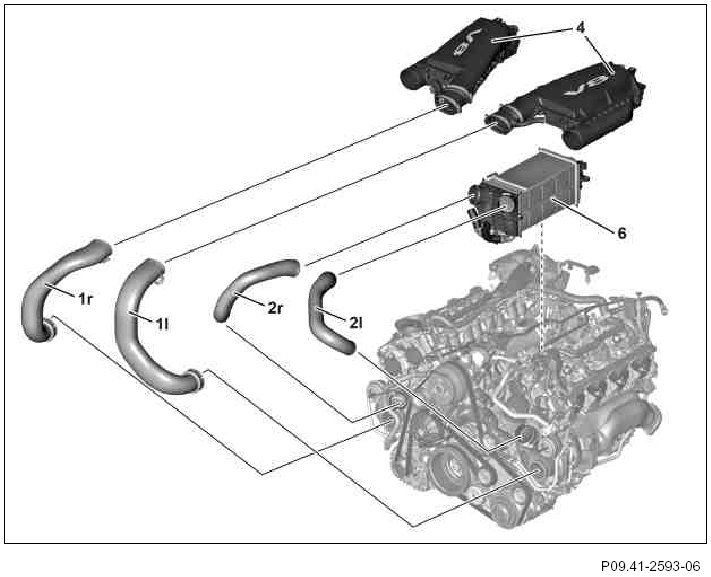

1l Upper charge air duct on the left
1r Upper charge air duct on the right
2l Lower charge air duct on the left
2r Lower charge air duct on the right
4 Air cleaner housing
6 Charge air cooler











129 589 00 91 00, Set of stop plugs







001 589 02 91 00, Set of protective covers
