GF54.15-P-0800LE Fuse and Relay Box, As-Built Configuration

GF54.15-P-0800LE Fuse and Relay Box, As-Built Configuration

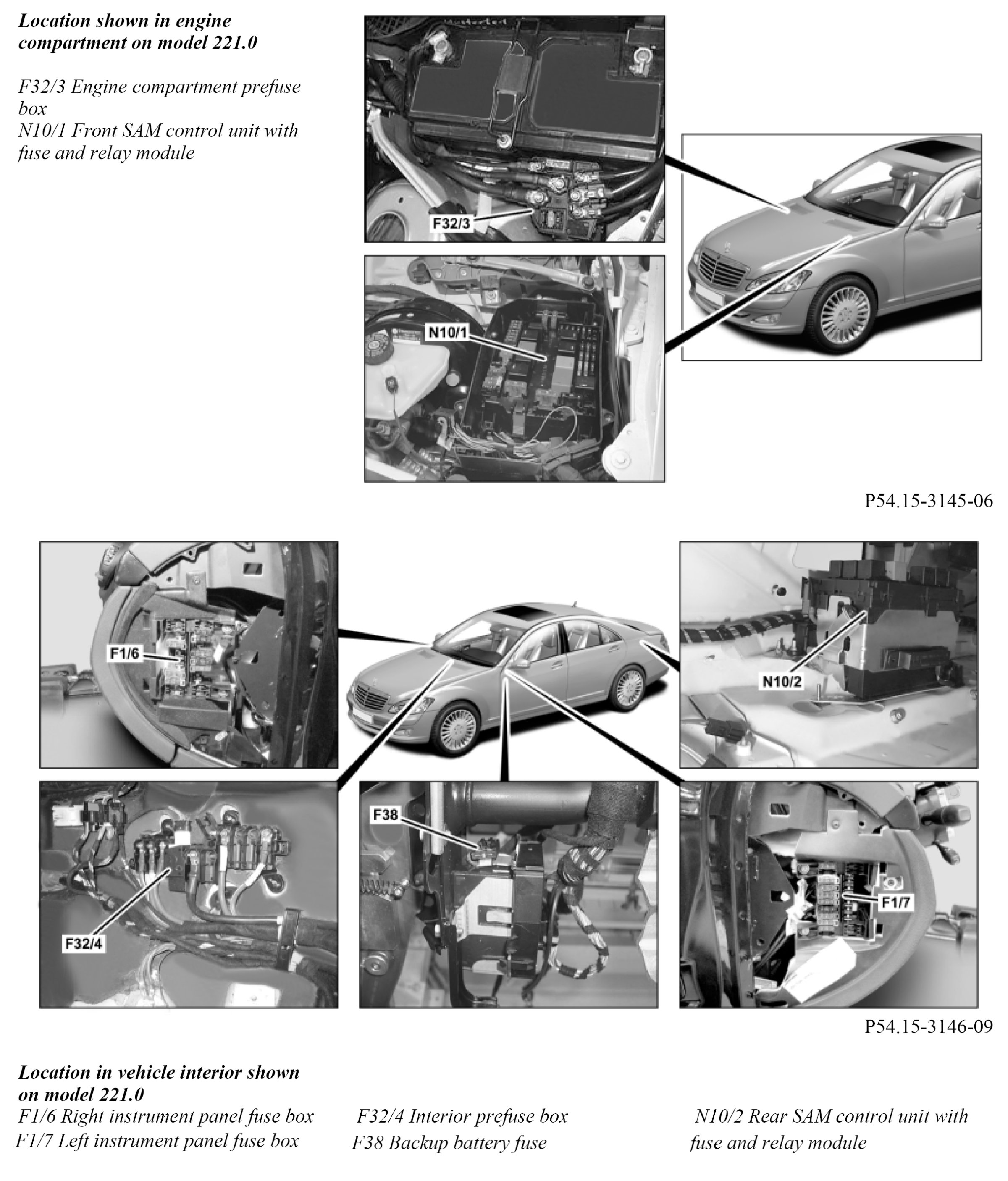

Component Location:

Note: The backup battery fuse serves protection between the additional battery (G1/7), EIS [EZS] control unit (N73) and front SAM control unit with fuse and relay module. The fuse rating is 5 amp(s).
