AR82.10-P-1201SC Remove/Install Bulbs Of Headlamp Unit
AR82.10-P-1201SC Remove/Install Bulbs Of Headlamp Unit
AR82.10-P-1201SC Remove/Install Bulbs Of
Headlamp
Unit

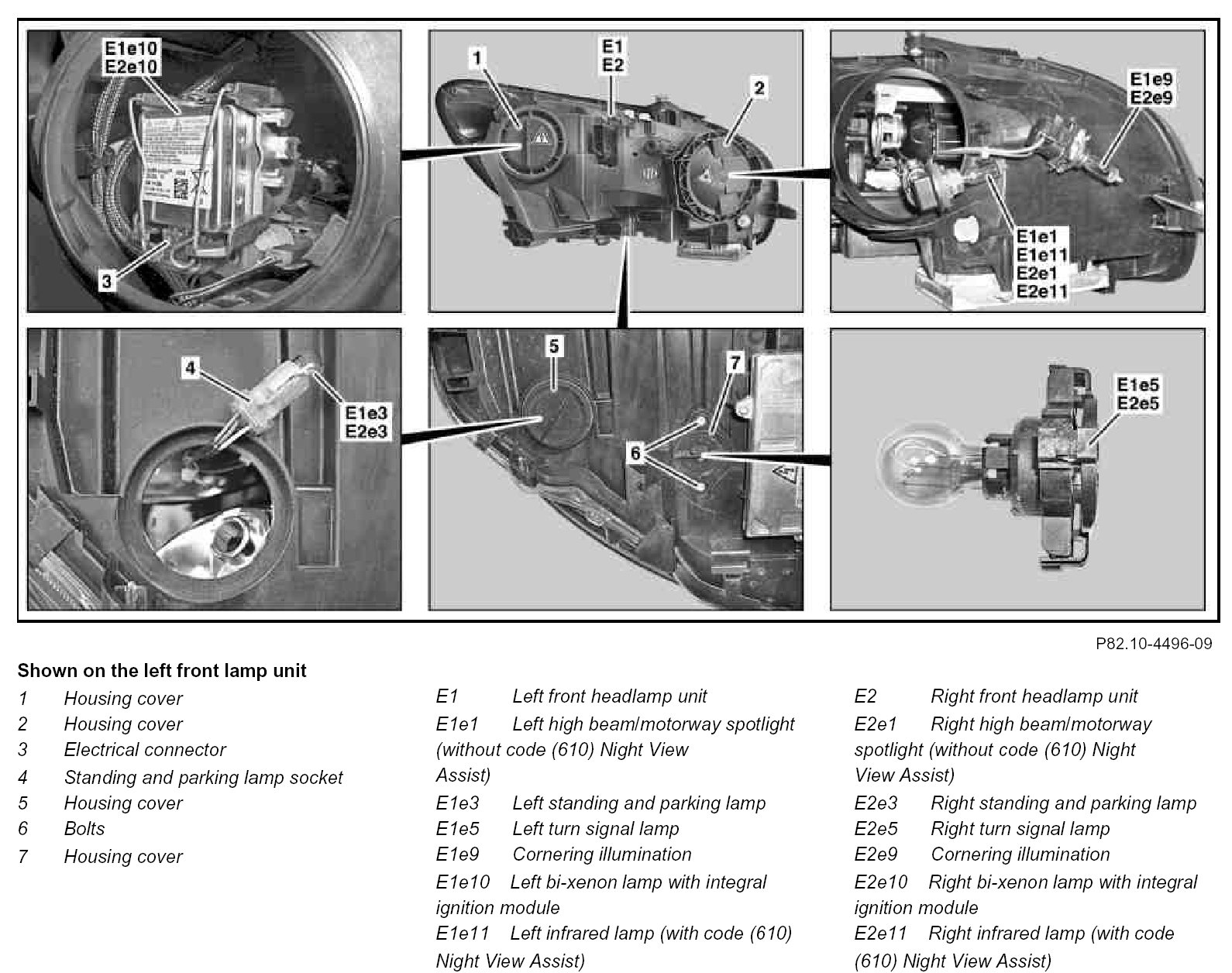

Component Identification:
Modification Notes:

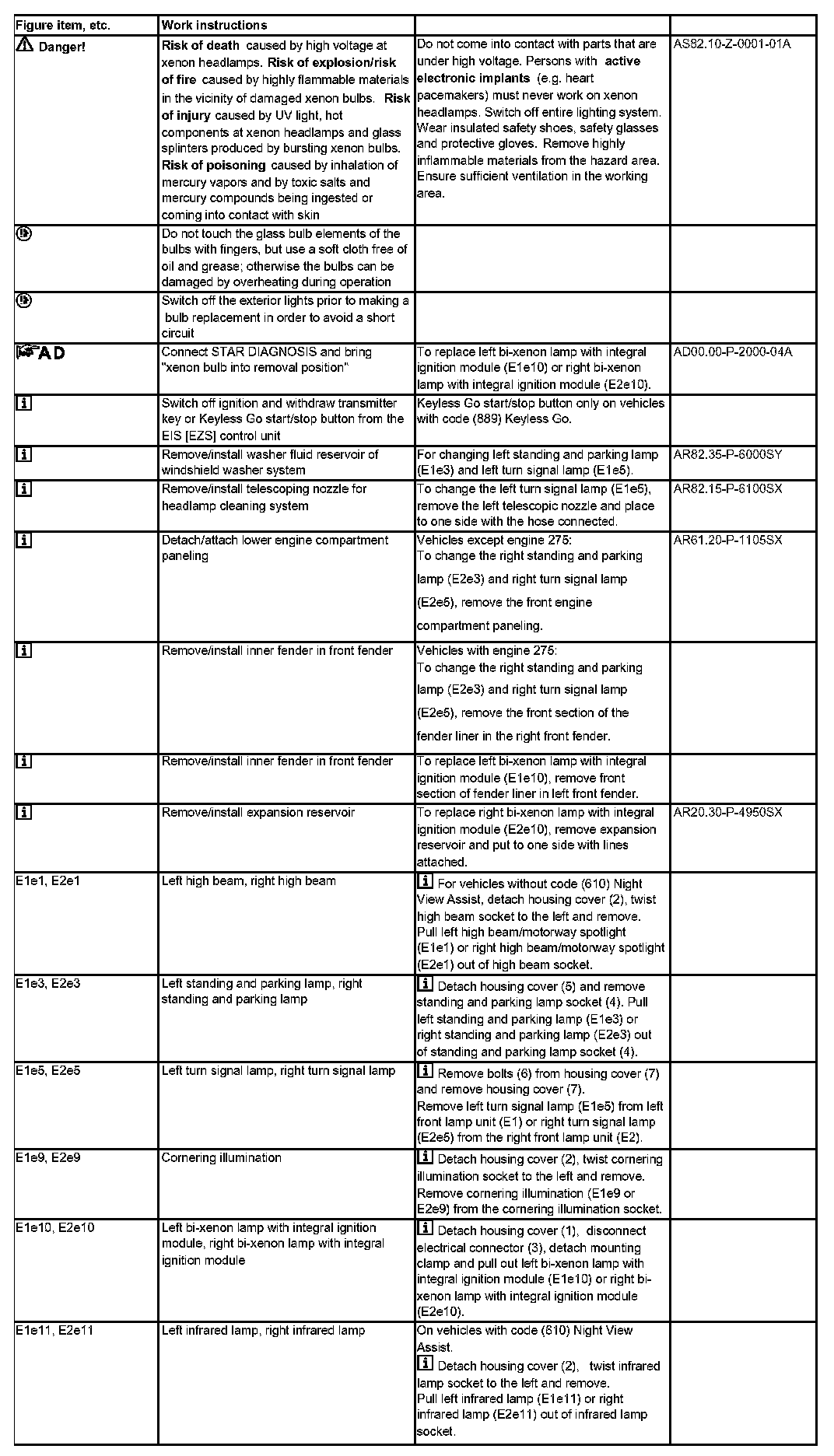

Steps E1e1 - E2e11:
