AP54.30-P-5452C Check Warning Lamps, Indicator Lamps and Interior Lights



AP54.30-P-5452C Check Warning Lamps, Indicator Lamps And Interior Lights

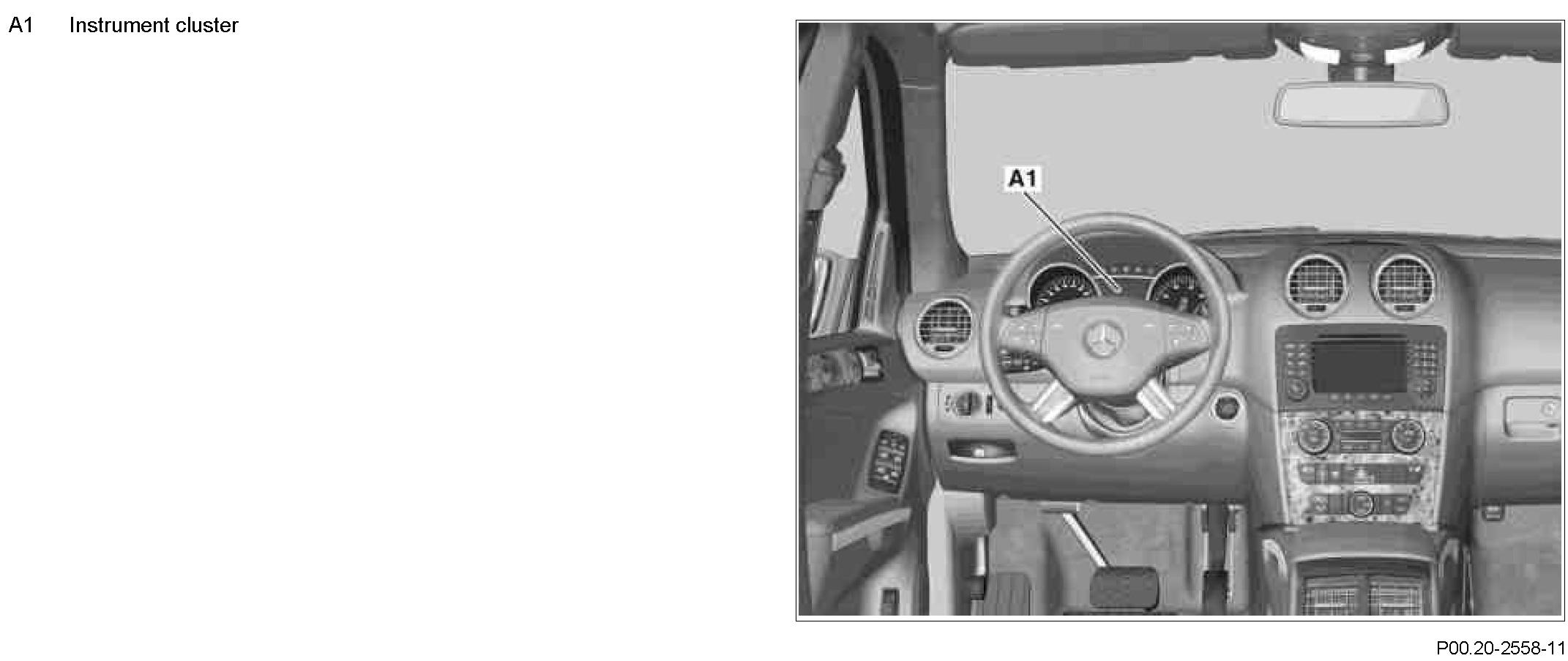

Component Identification:

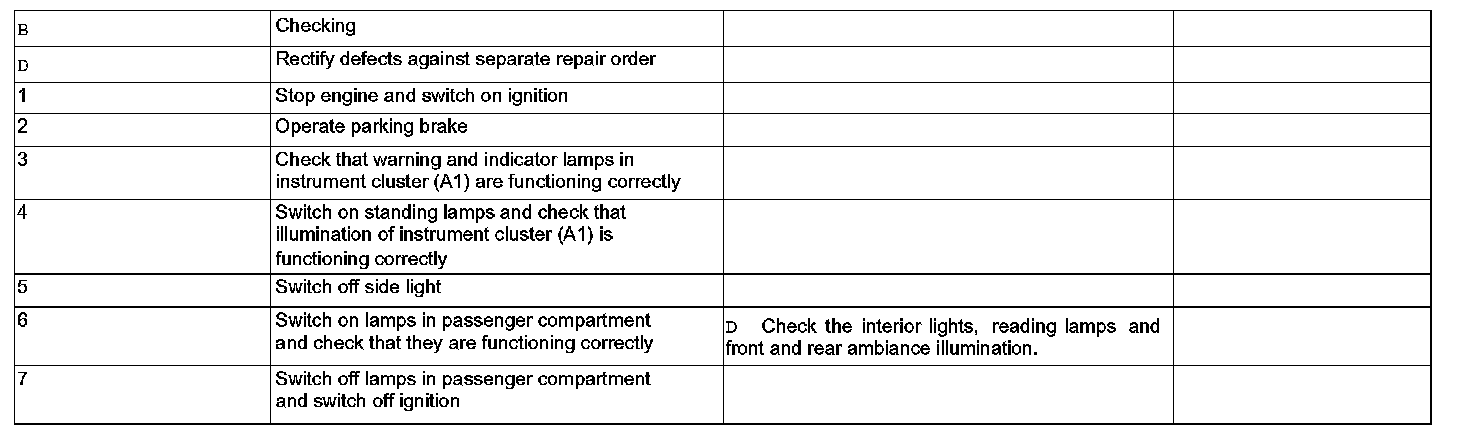

Steps 1 - 7:
