Control Assembly: Service and Repair
AR68.20-P-2314SC Remove/install Cover For Control And Operating Unit

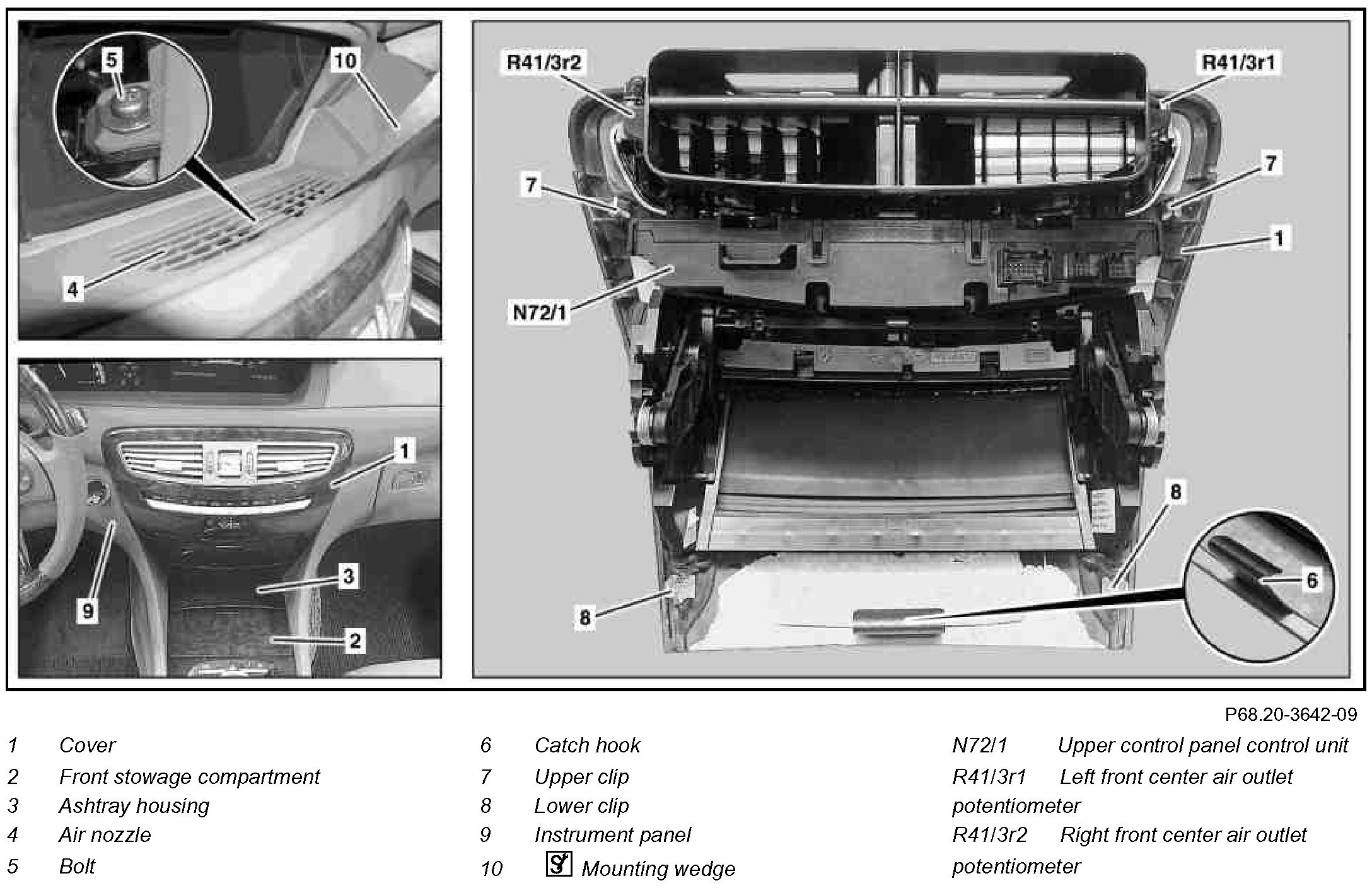

Component Identification:

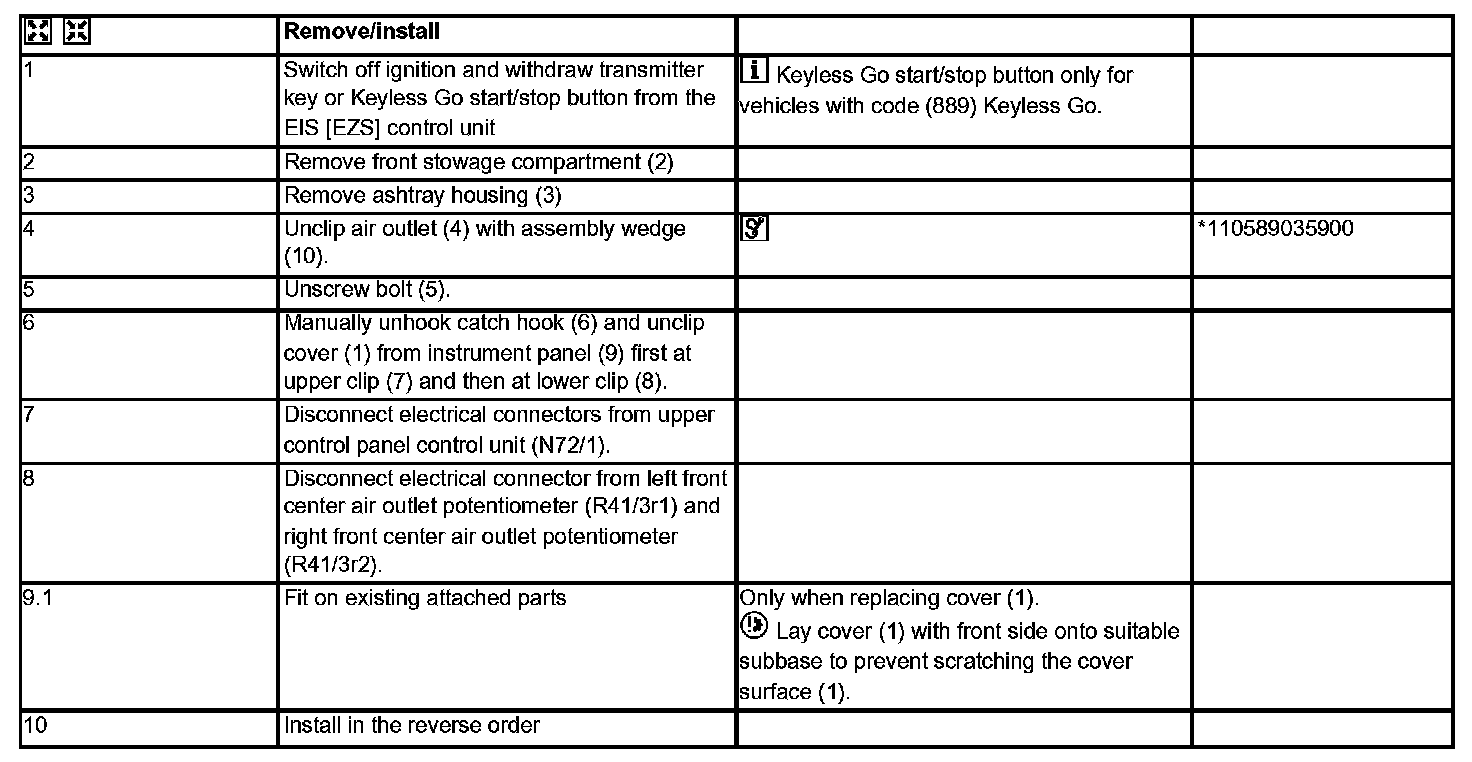

Steps 1-10:

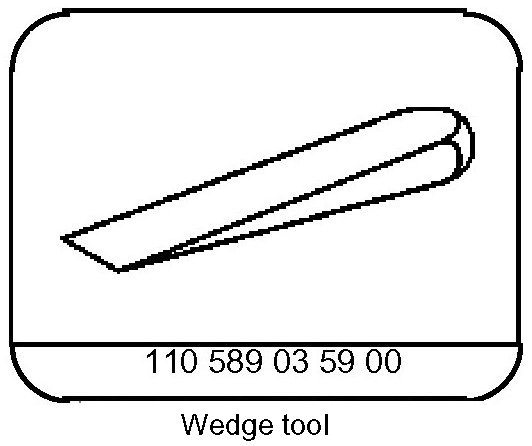

Special Tool:
