AR83.00-P-1000SX Remove/Install Combination Filter
AR83.00-P-1000SX Remove/Install Combination Filter
AR83.00-P-1000SX Remove/Install Combination Filter

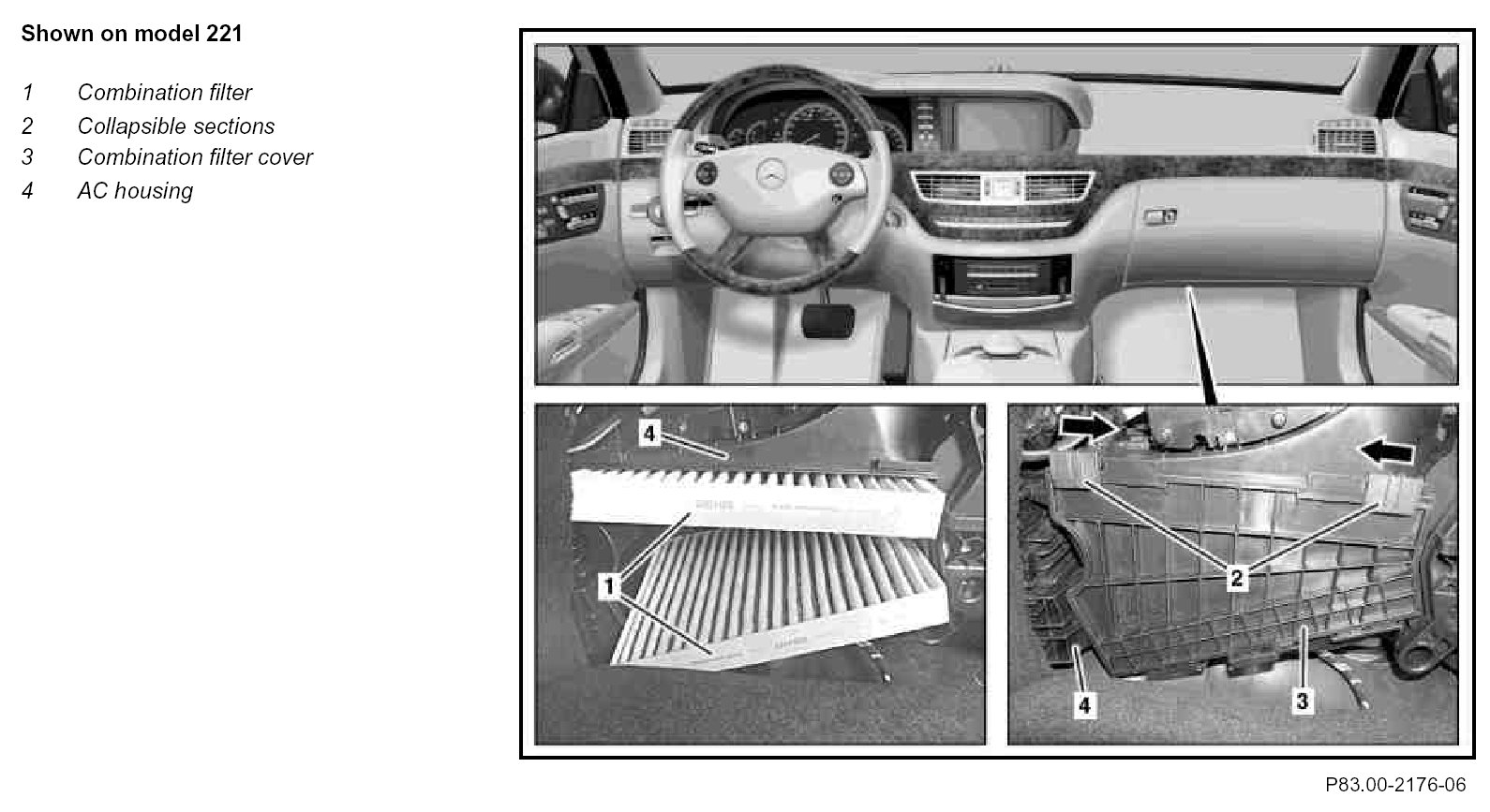

Component Identification:

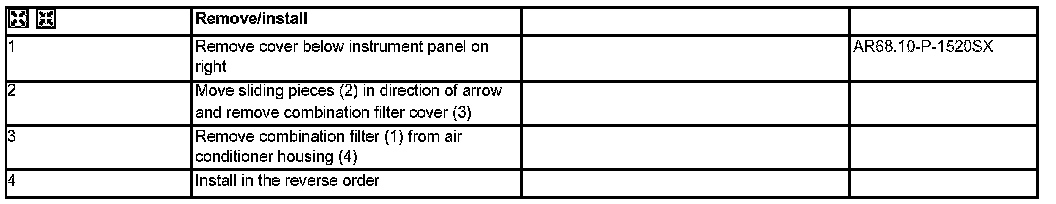

Steps 1 - 4:
