AP83.00-P-8384SX Replace Combination Filter



AP83.00-P-8384SX Replace Combination Filter

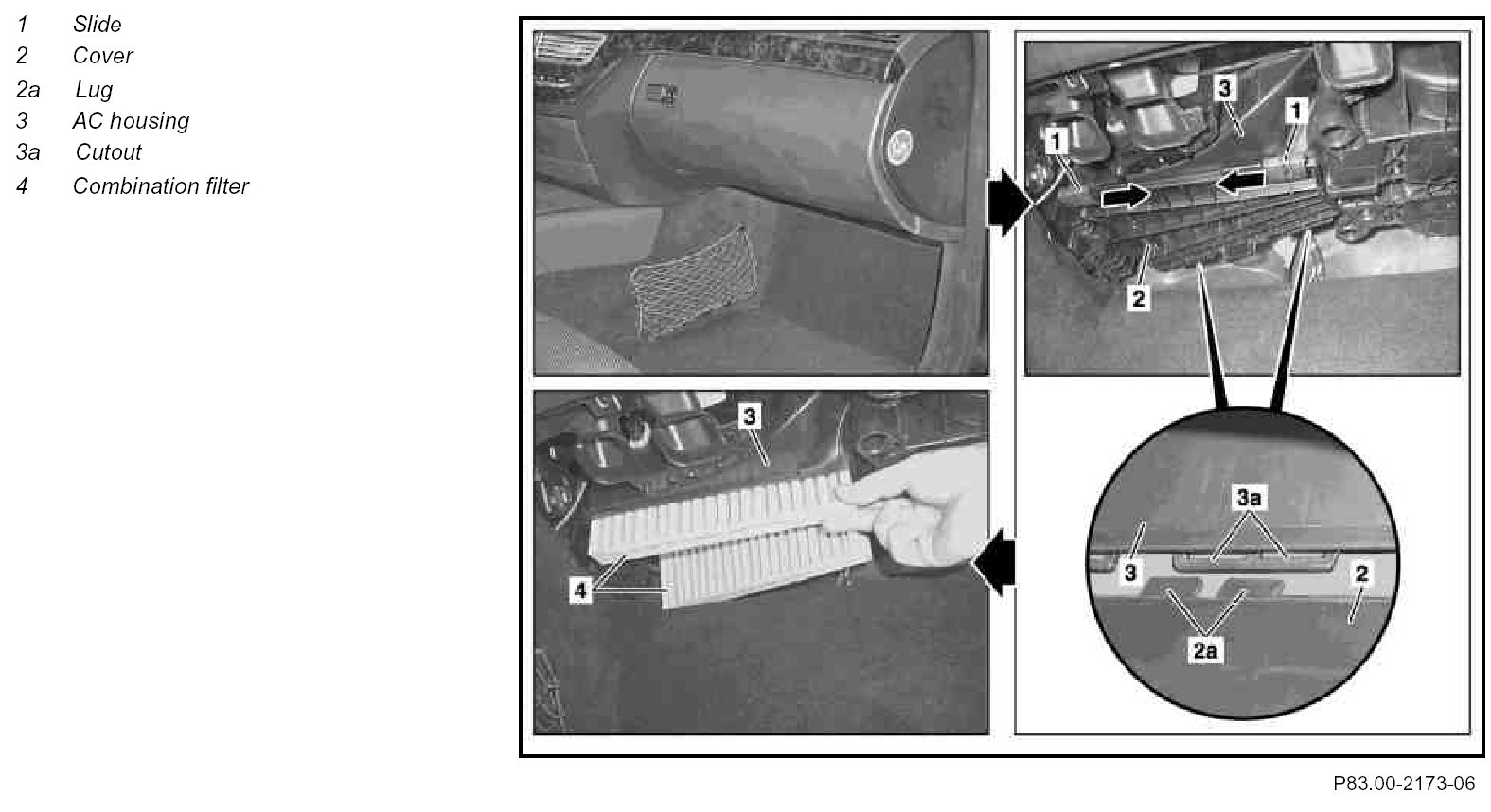

Component Identification:

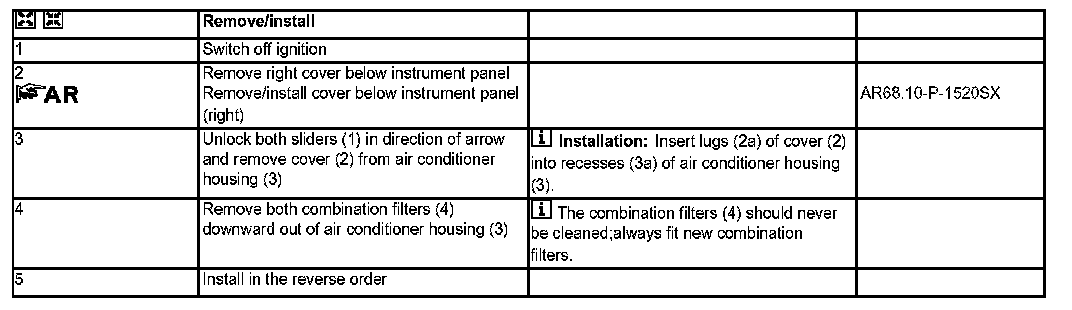

Steps 1 - 5:
