Rear Crankshaft Main Bearing Seal: Service and Repair

AR03.20-P-3063MM Replace Rear Crankshaft Radial Sealing Ring

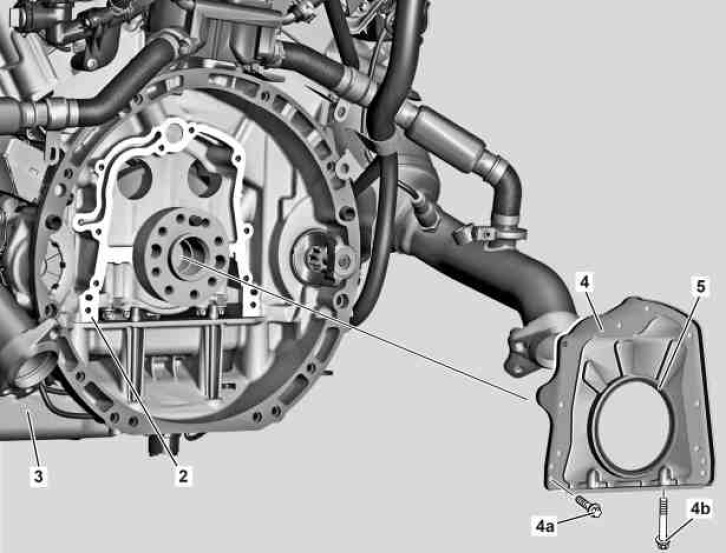

Shown on engine 273.961

2 Cylinder crankcase
3 Oil pan
4 End cover
4a Screw
4b Screw
5 Crankshaft radial seal

















273 589 00 43 00
Insertion tool
