Drive Belts, Mounts, Brackets and Accessories: Service and Repair

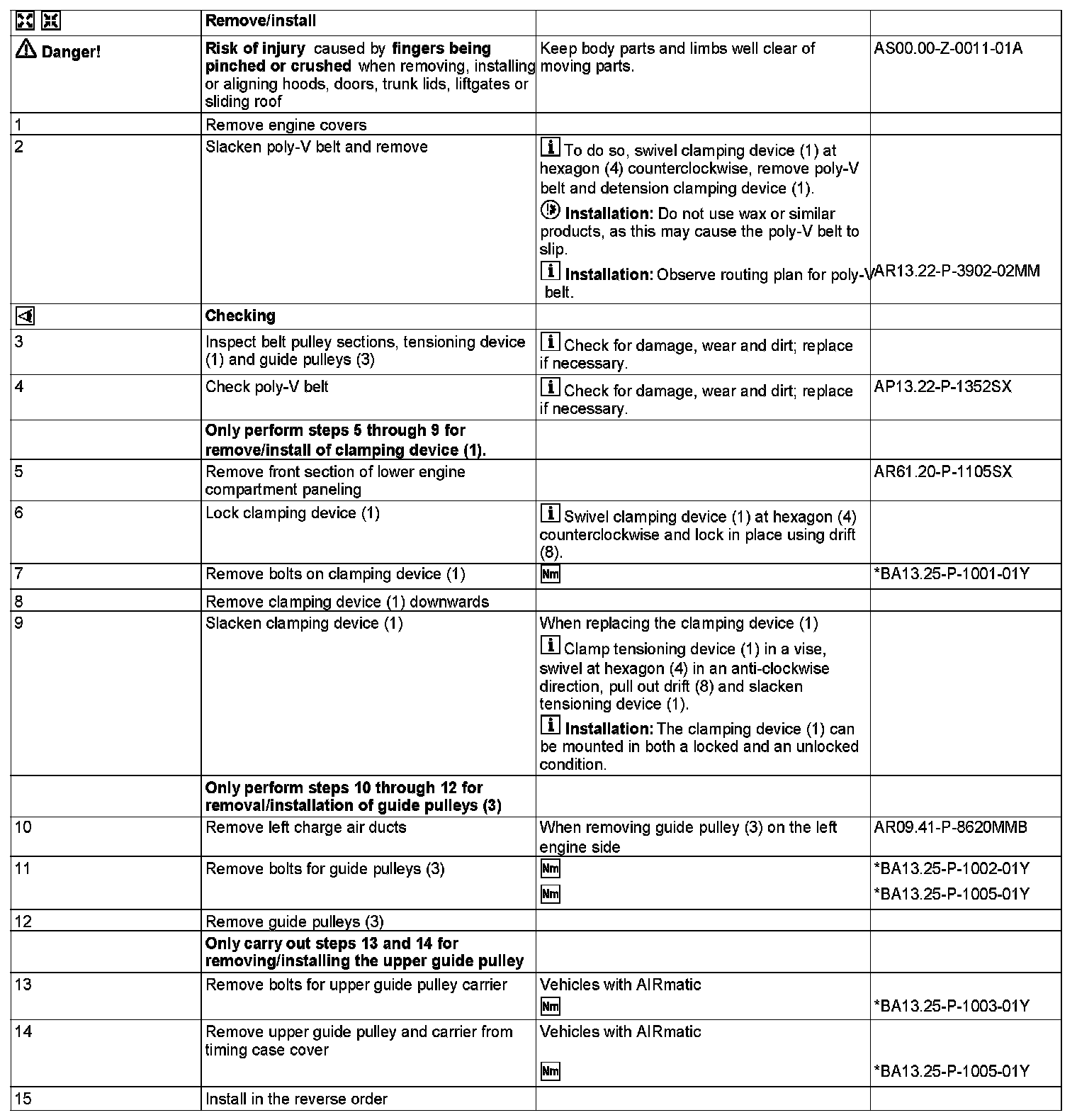

AR13.20-P-0001MMB Remove/install Belt Drive Components
- ENGINES 157, 278 in MODEL 216, 221

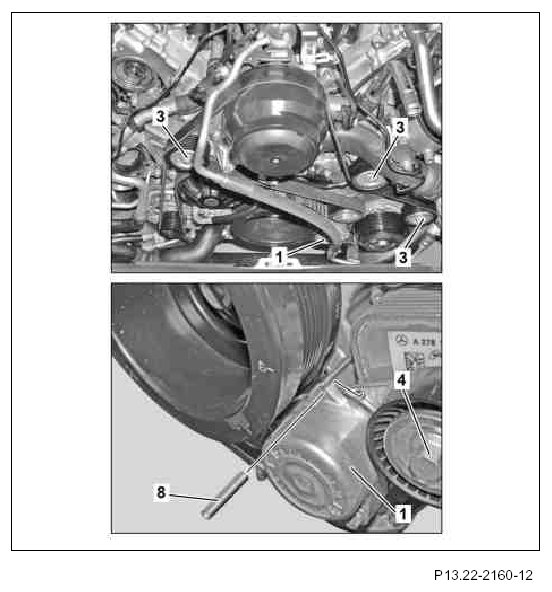

Shown on vehicle with code (487) Active Body Control (ABC)







1 Tensioning device
3 Guide pulleys
4 Hexagon
8 Drift
