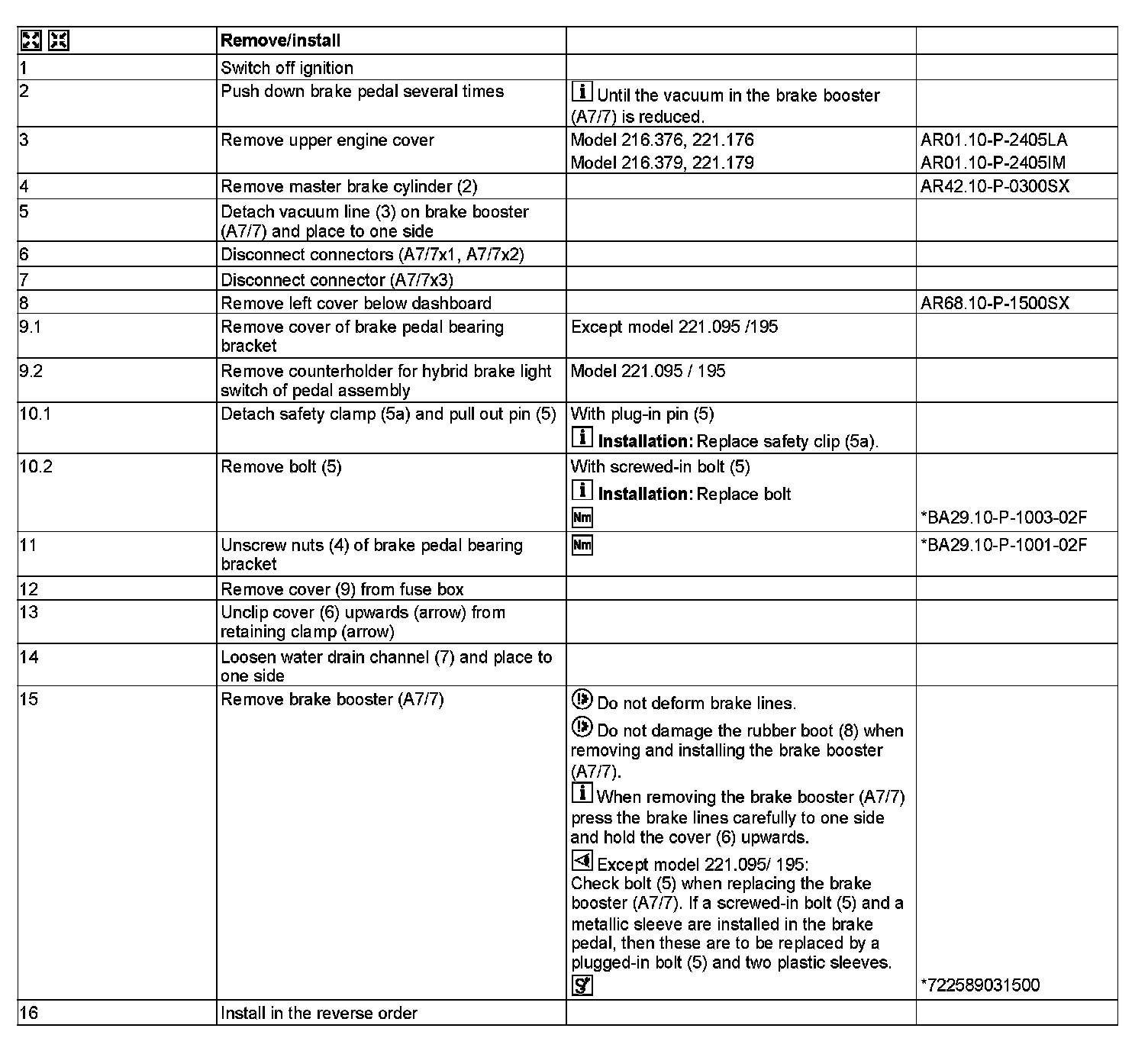

AR43.10-P-0350SX Remove/Install Brake Booster

AR43.10-P-0350SX Remove/Install Brake Booster
MODEL 216.### 1#
MODEL 221.### 1#

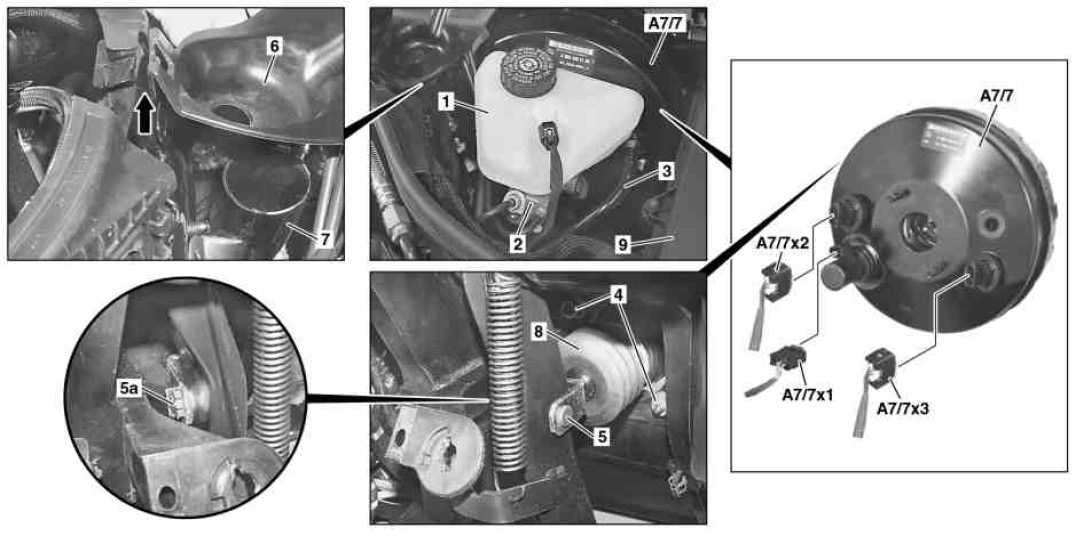

1 Brake fluid expansion reservoir
2 Master brake cylinder
3 Vacuum line
4 Nuts
5 Pin
5a Securing clamp
6 Radiator tank cover
7 Water drain duct
8 Rubber boot
9 Cover

A7/7 BAS brake booster
A7/7x1 Diaphragm travel sensor connector
A7/7x2 Release switch and solenoid valve connector
A7/7x3 BAS travel differential sensor connector














722 589 03 15 00
Drift
