Home >> Mercedes Benz >> 2011 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Brake Hose/Line >> Specifications

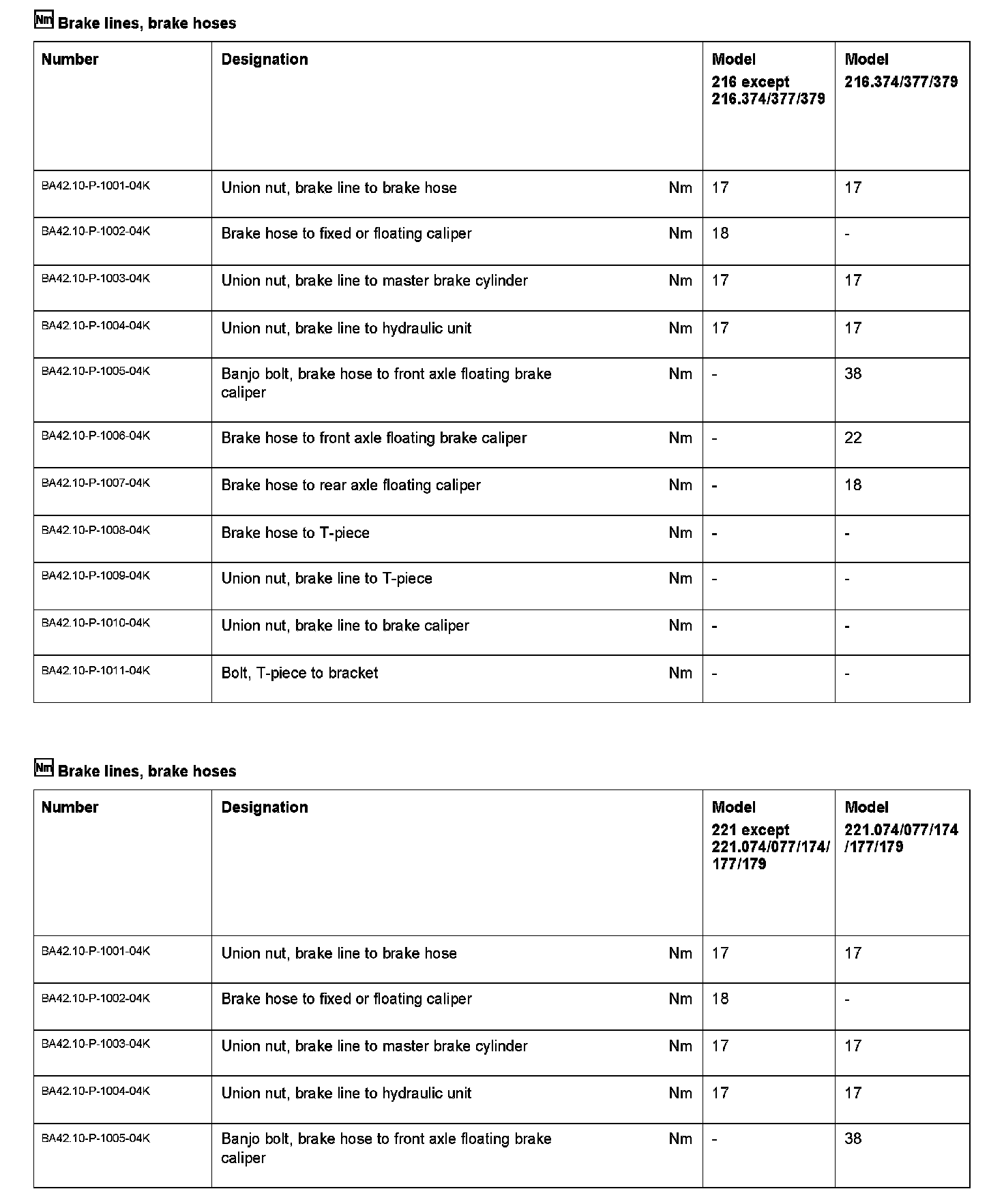

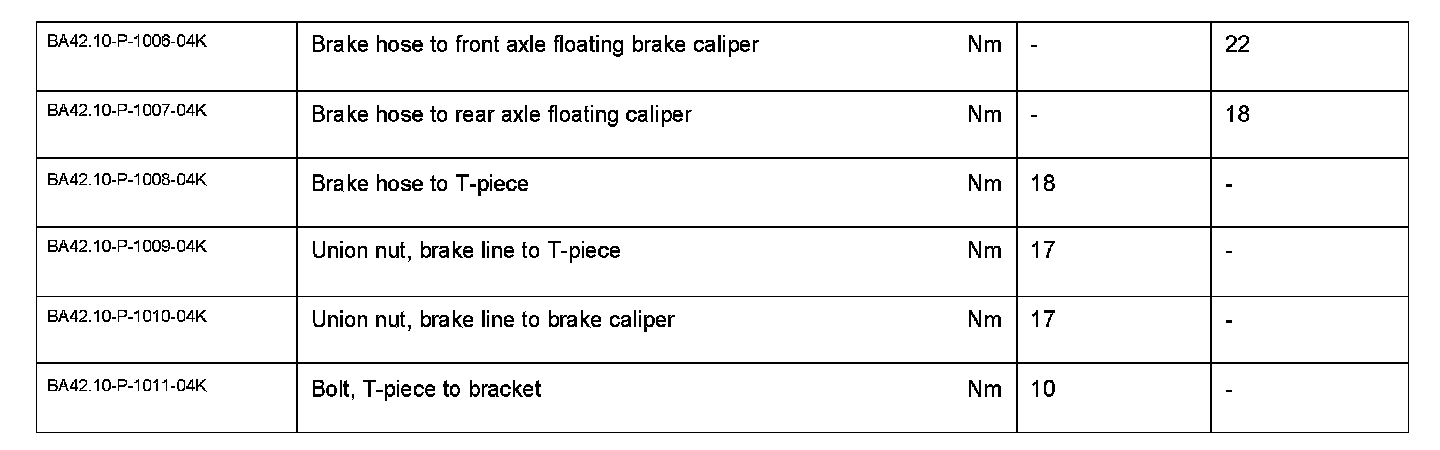

Brake Hose/Line: Specifications



BA42.10-P-1000-04K Brake Lines, Brake Hoses
Model 216, 221
