AR42.10-P-0013SX Replace Brake Hoses

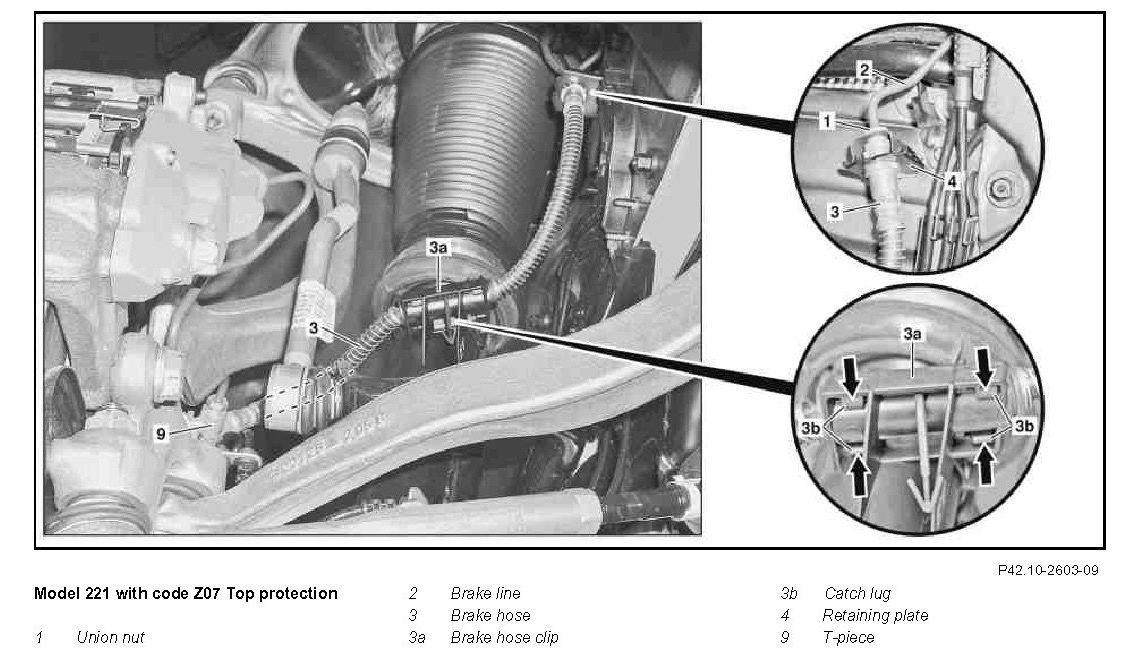

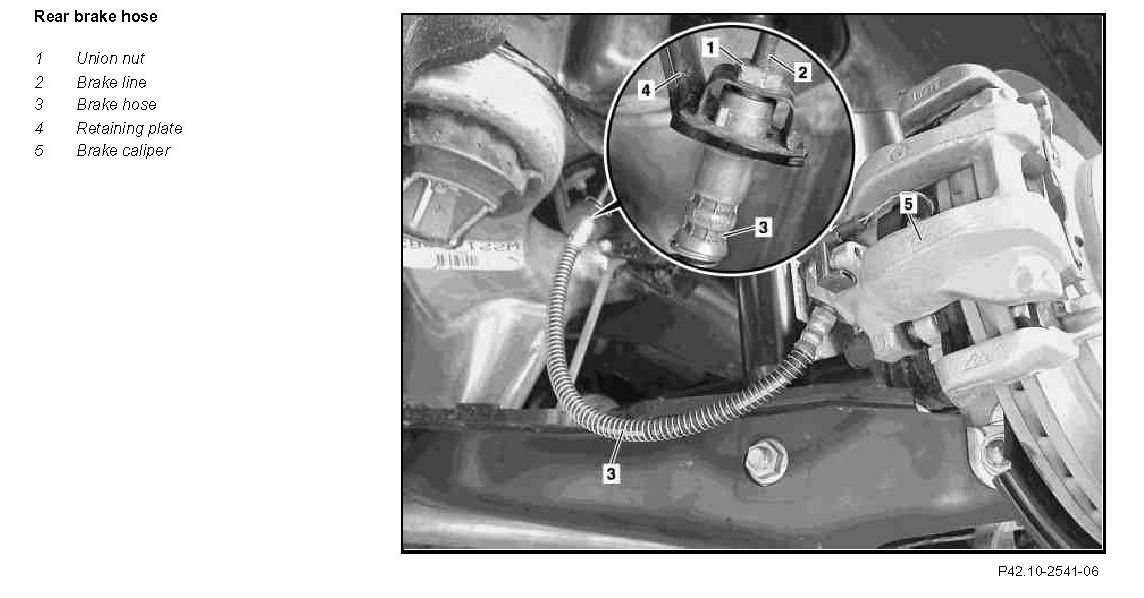

Component Identification:

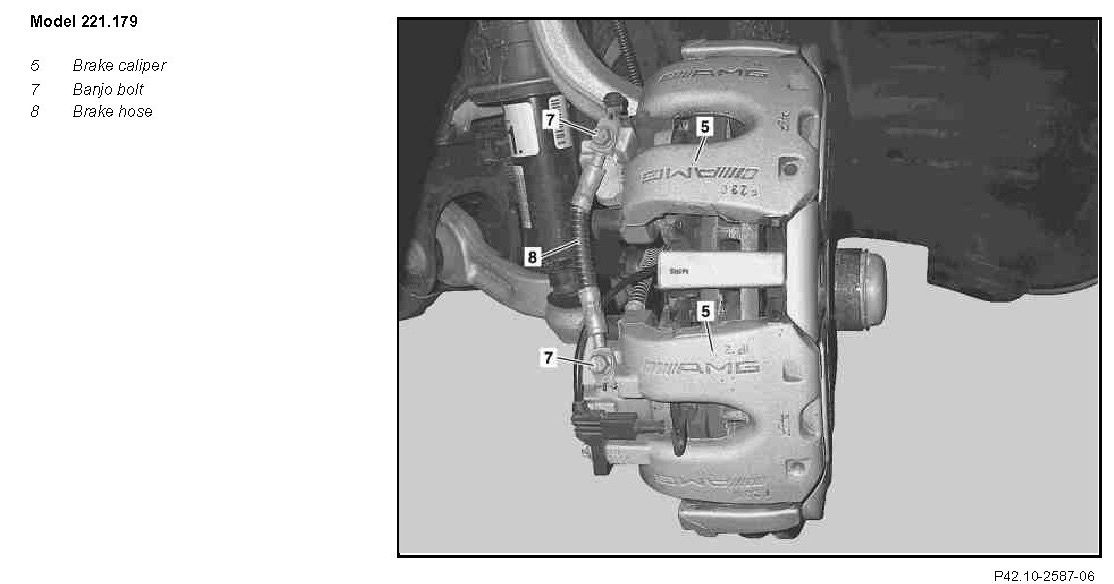

Component Identification:

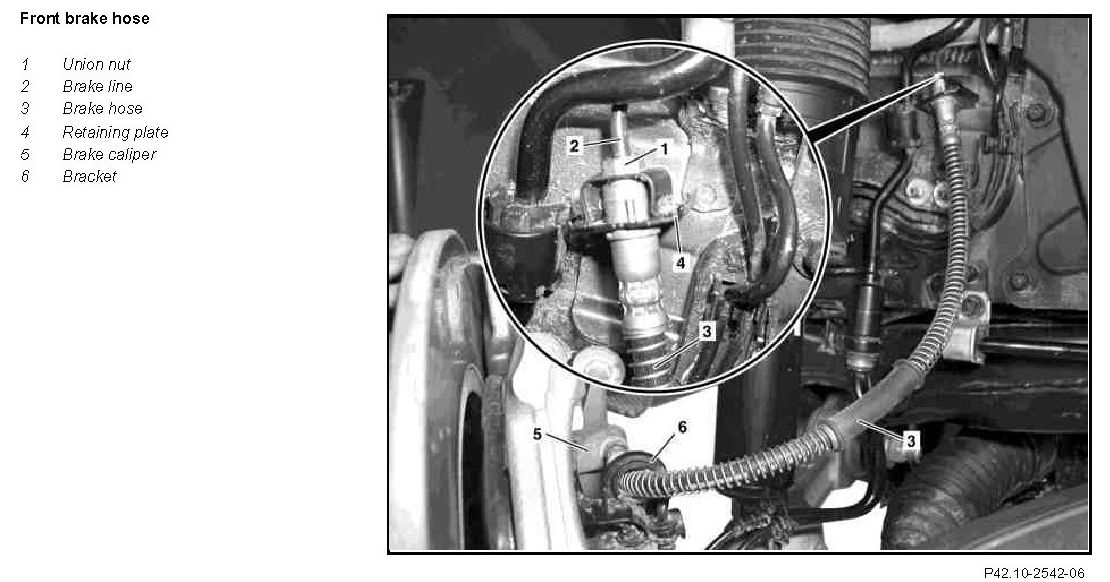

Component Identification:

Component Identification:

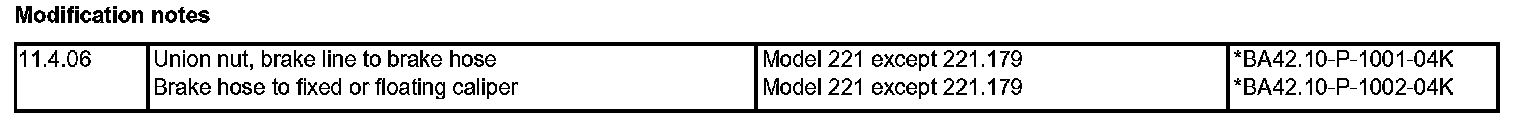

Modification notes:

Remove/install:

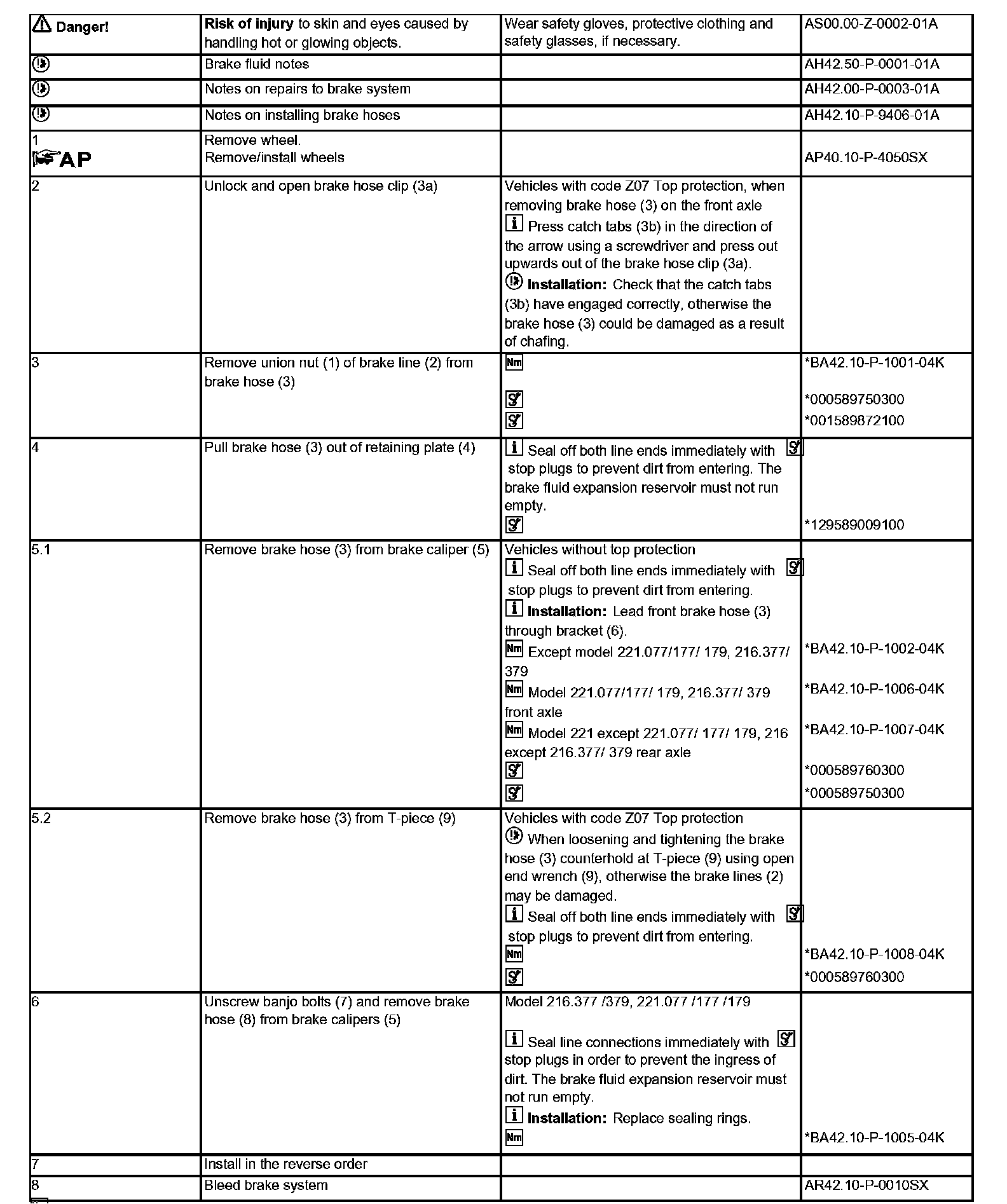

Remove/install Steps 1-8:

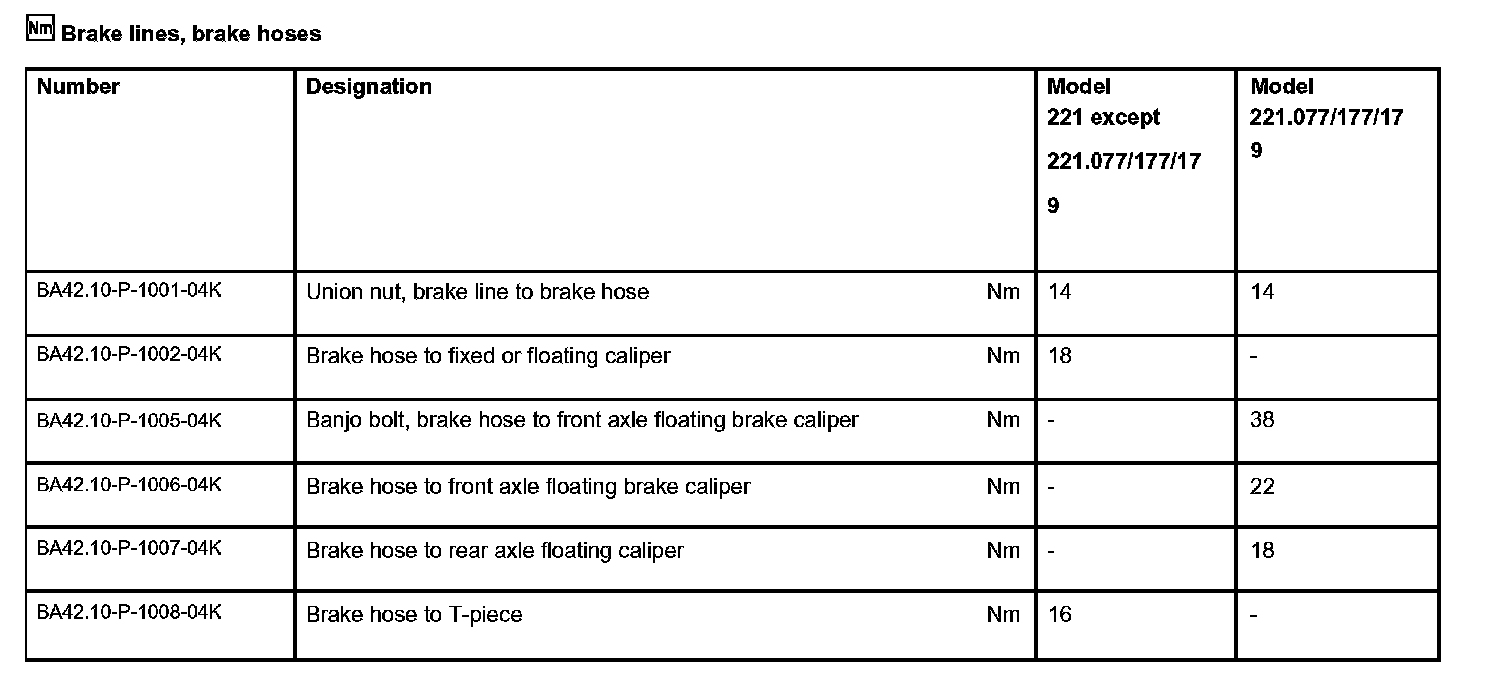

Brake lines, brake hoses:

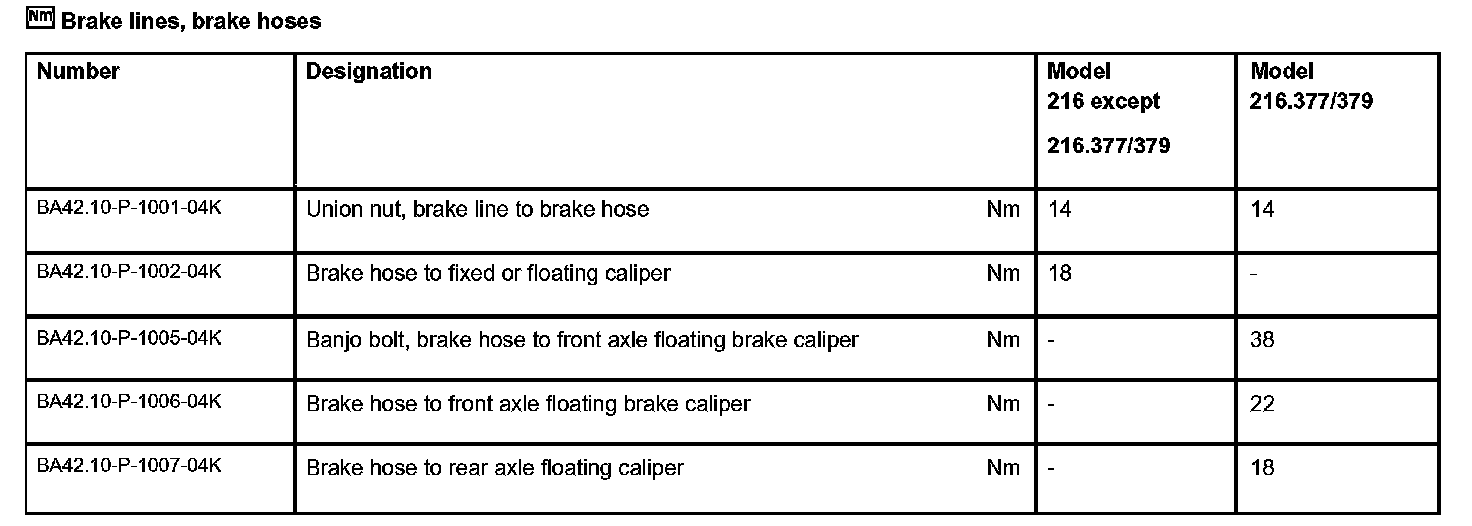

Brake lines, brake hoses:

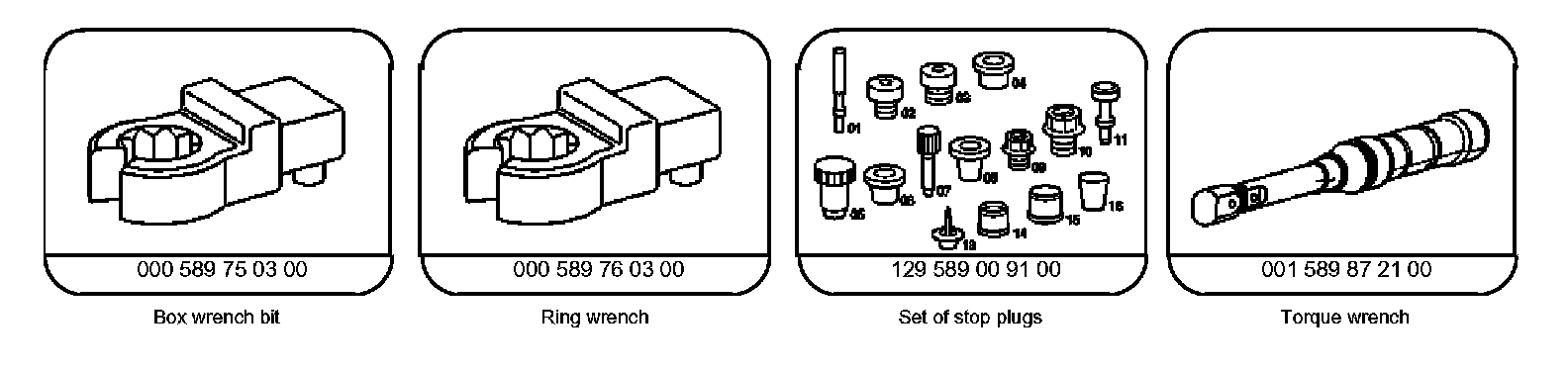

Special Tools:
