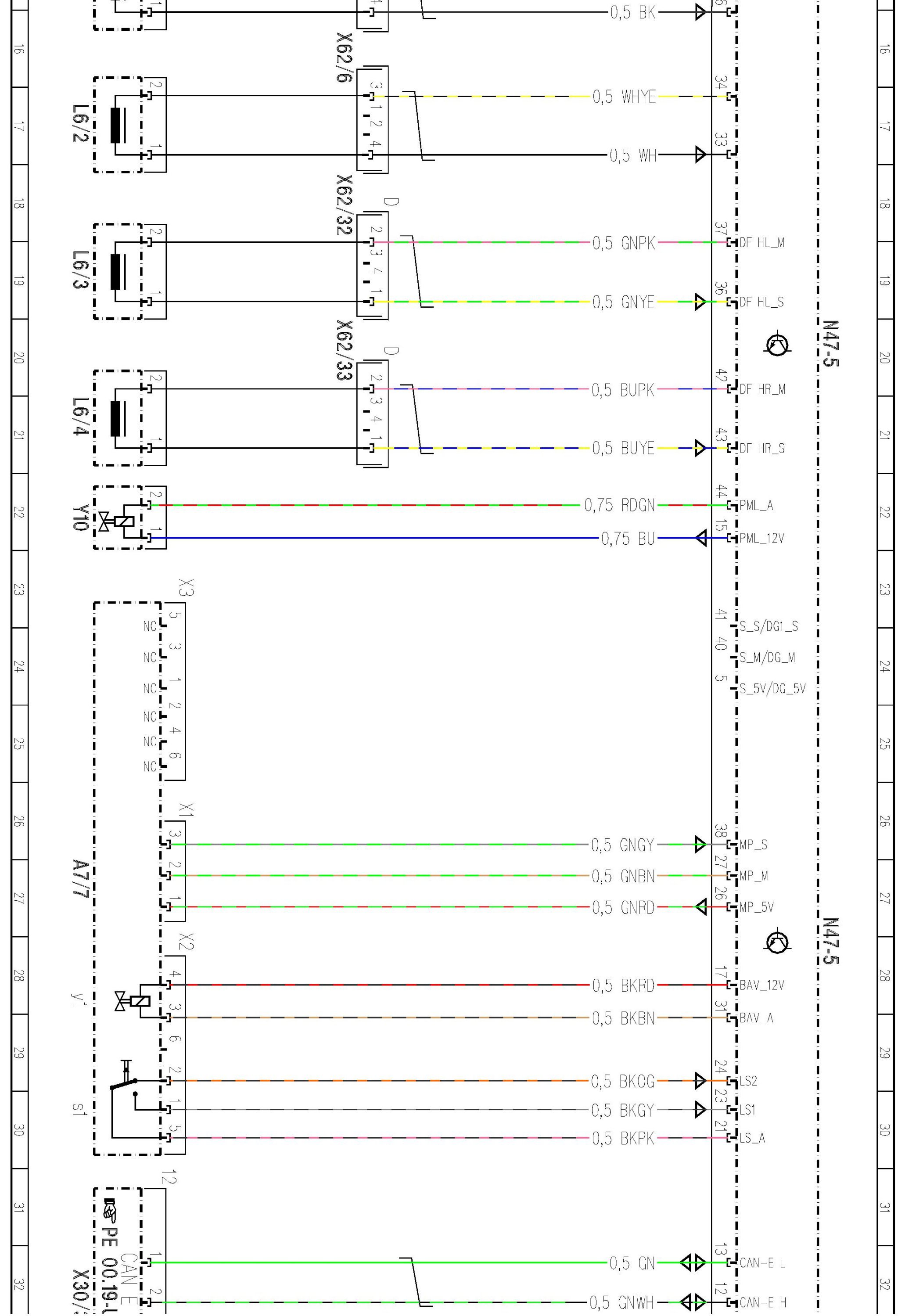

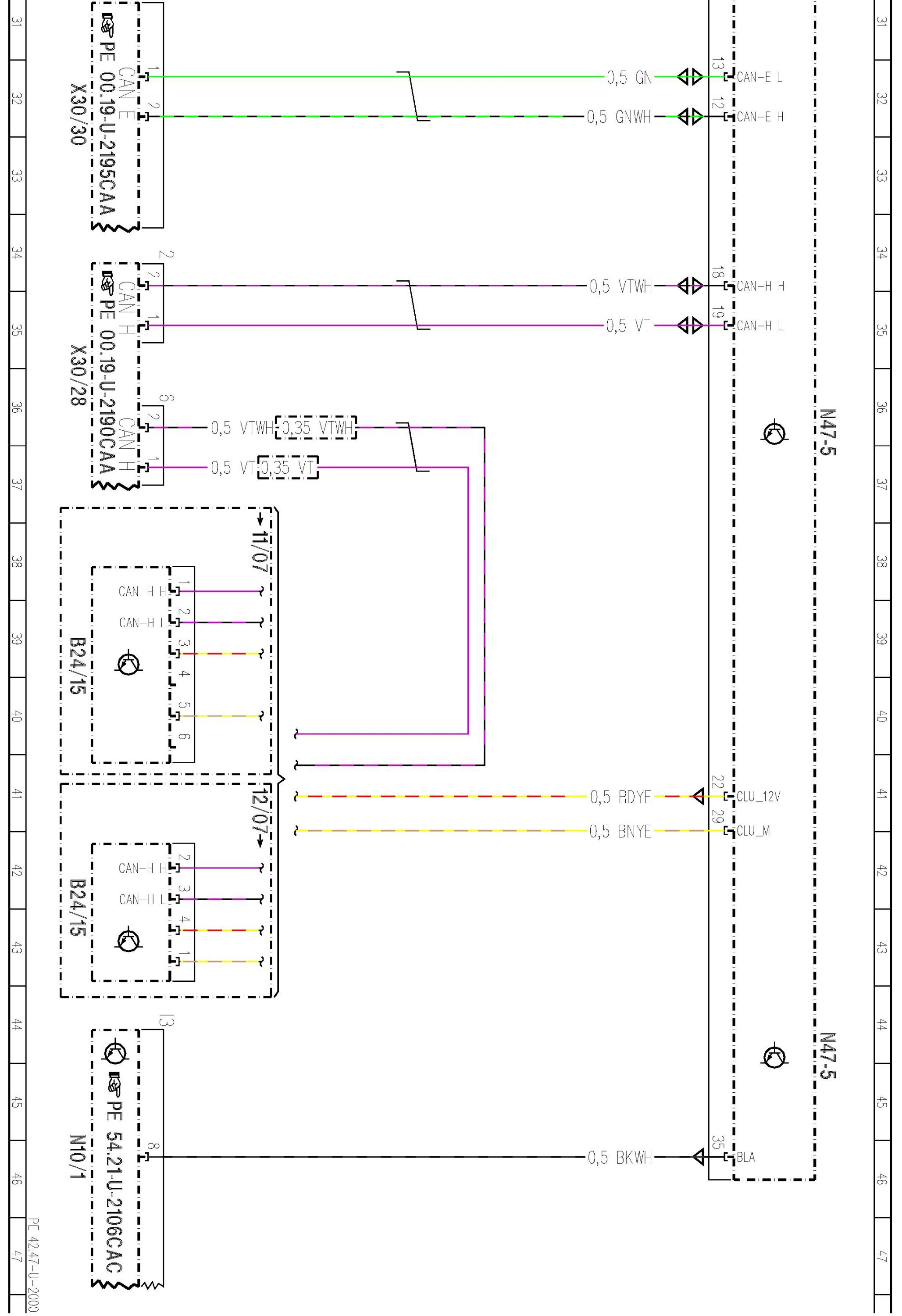

PE42.47-U-2000CAA Adaptive Brake (ABR) System

PE42.47-U-2000CAA Adaptive Brake (ABR) System

MODEL 216
- with CODE (472) Electronic Stability Program (ESP)
- up to Model Year 2011
- Control unit A7/3 and N47-5

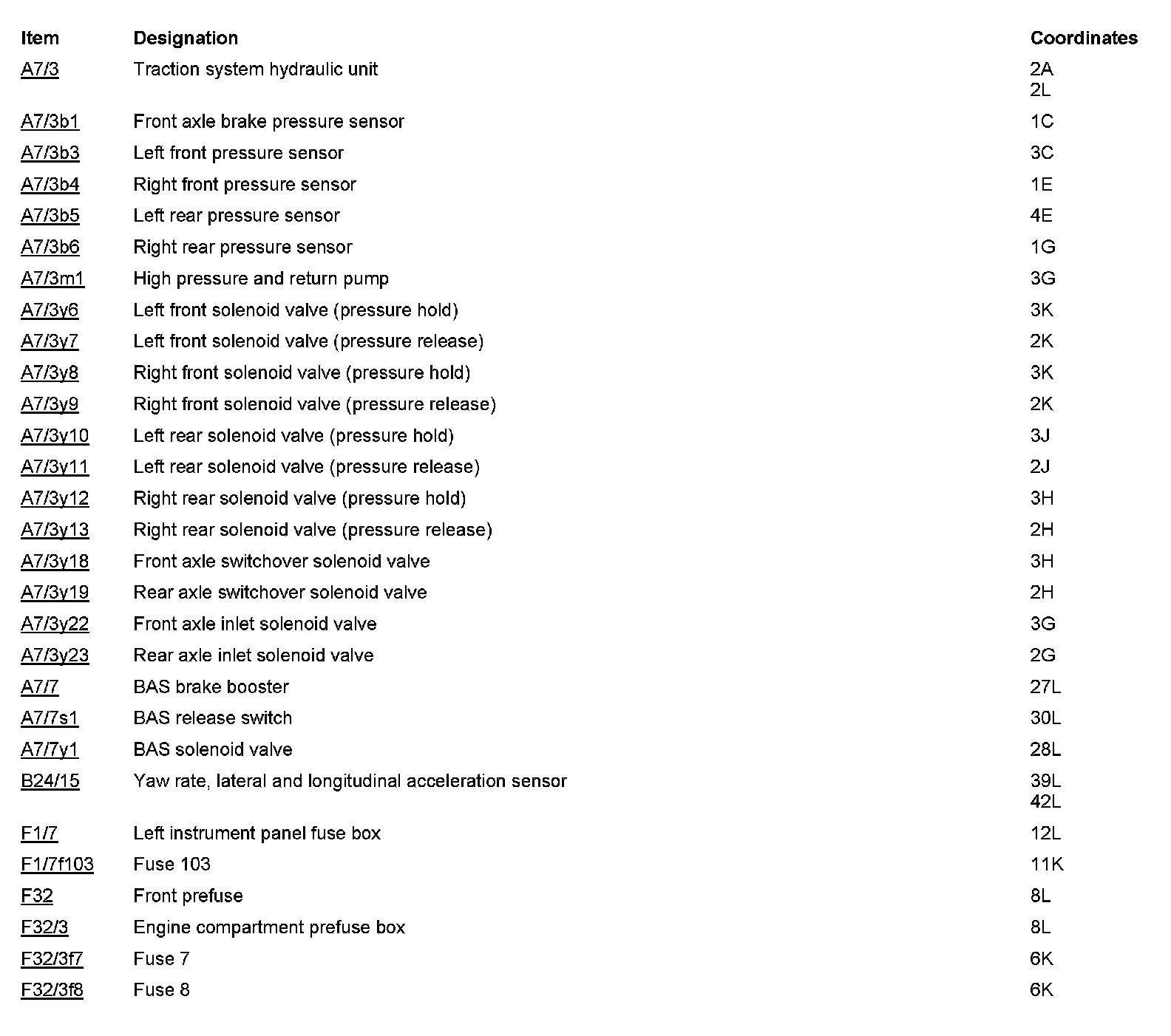

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
