AR91.18-P-1850SC Remove and Install Cover on Rear Seat Cushion
AR91.18-P-1850SC Remove and Install Cover on Rear Seat Cushion
AR91.18-P-1850SC Remove And Install Cover On Rear Seat Cushion

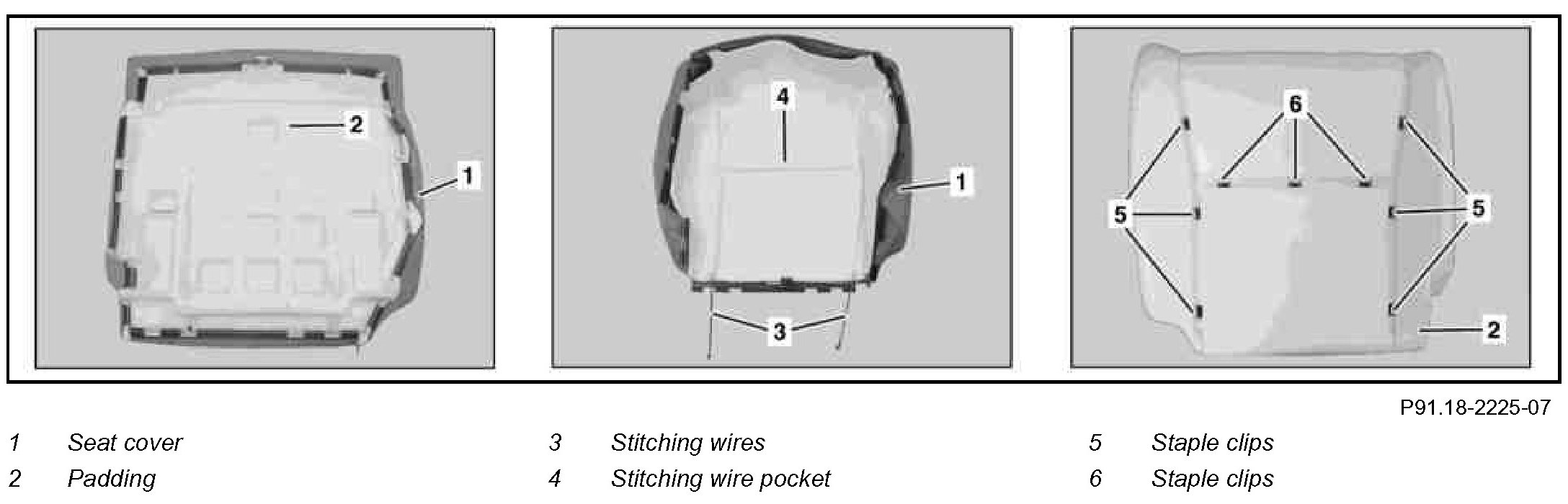

Component Identification:

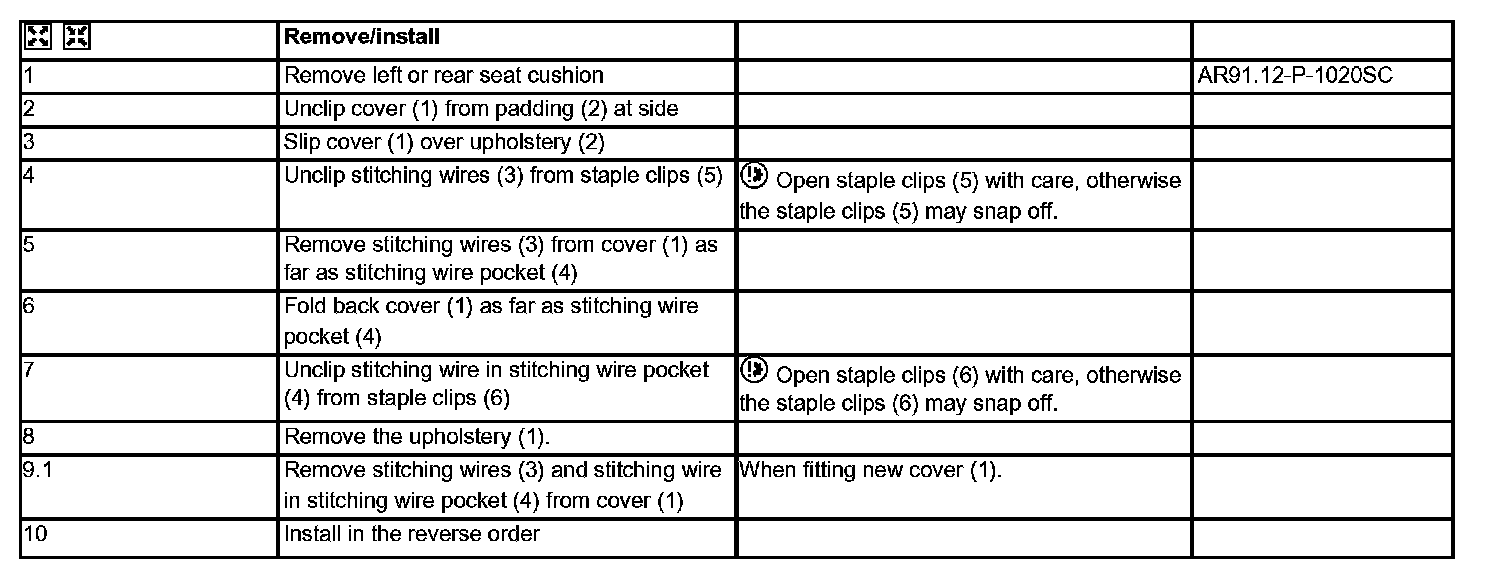

Steps 1-10:
