AR91.10-P-1090SC Remove/Install Front Seat Backrest Upholstery



AR91.10-P-1090SC Remove/install Front Seat Backrest Upholstery

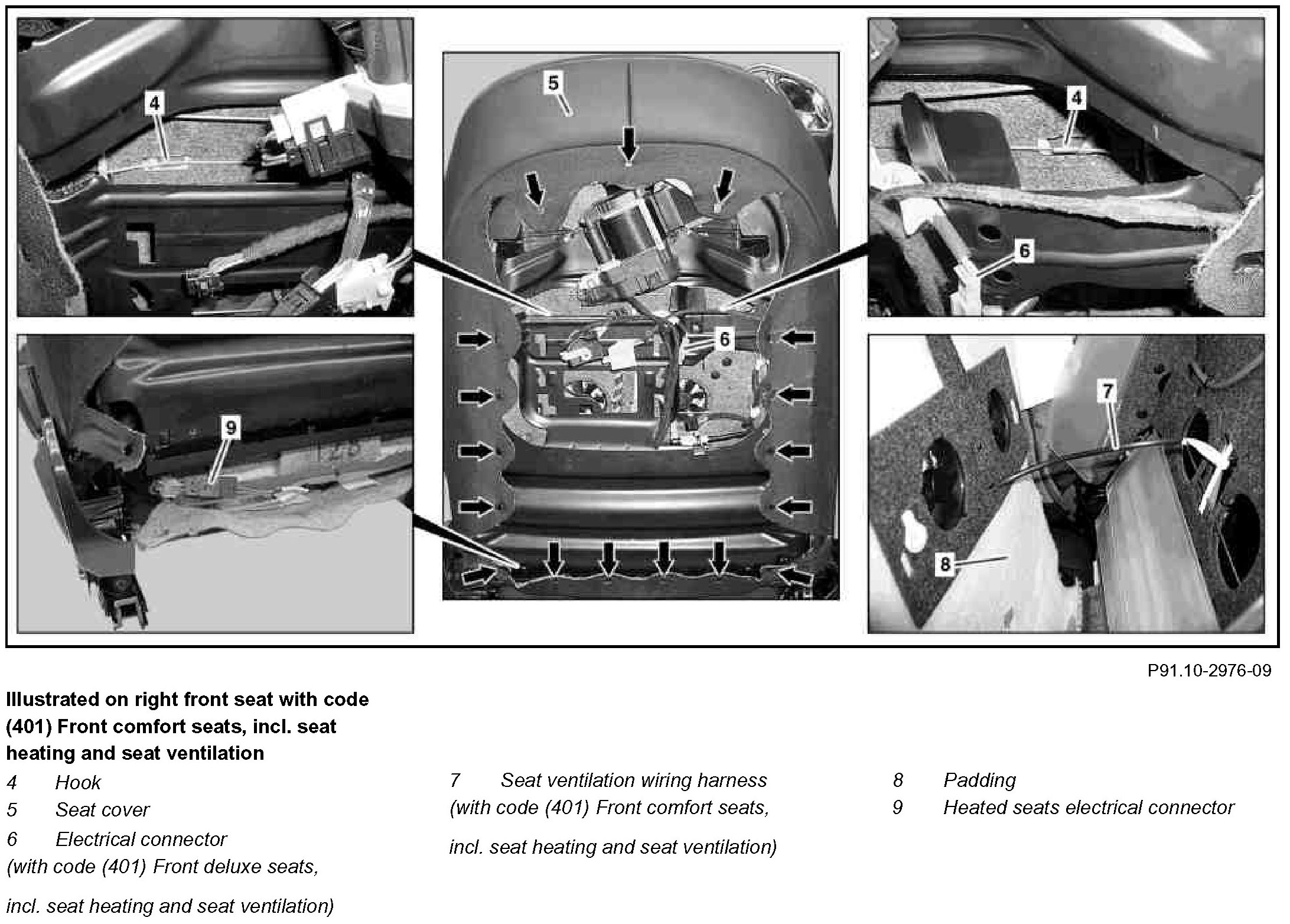

Component Identification:

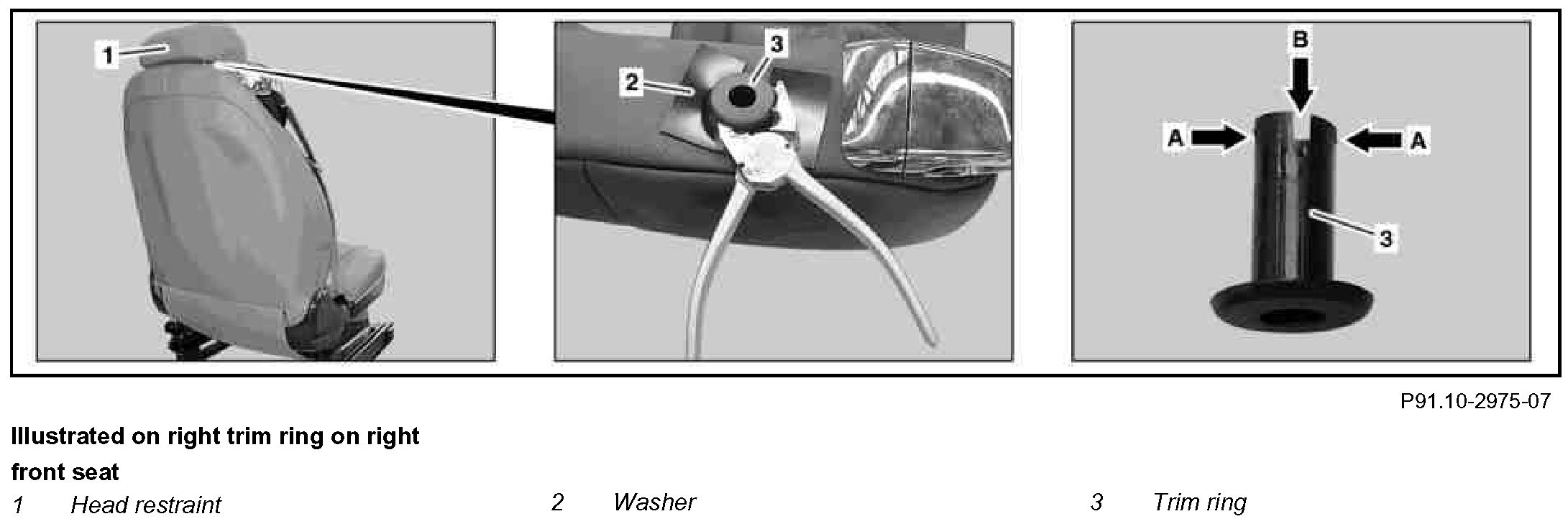

Component Identification:

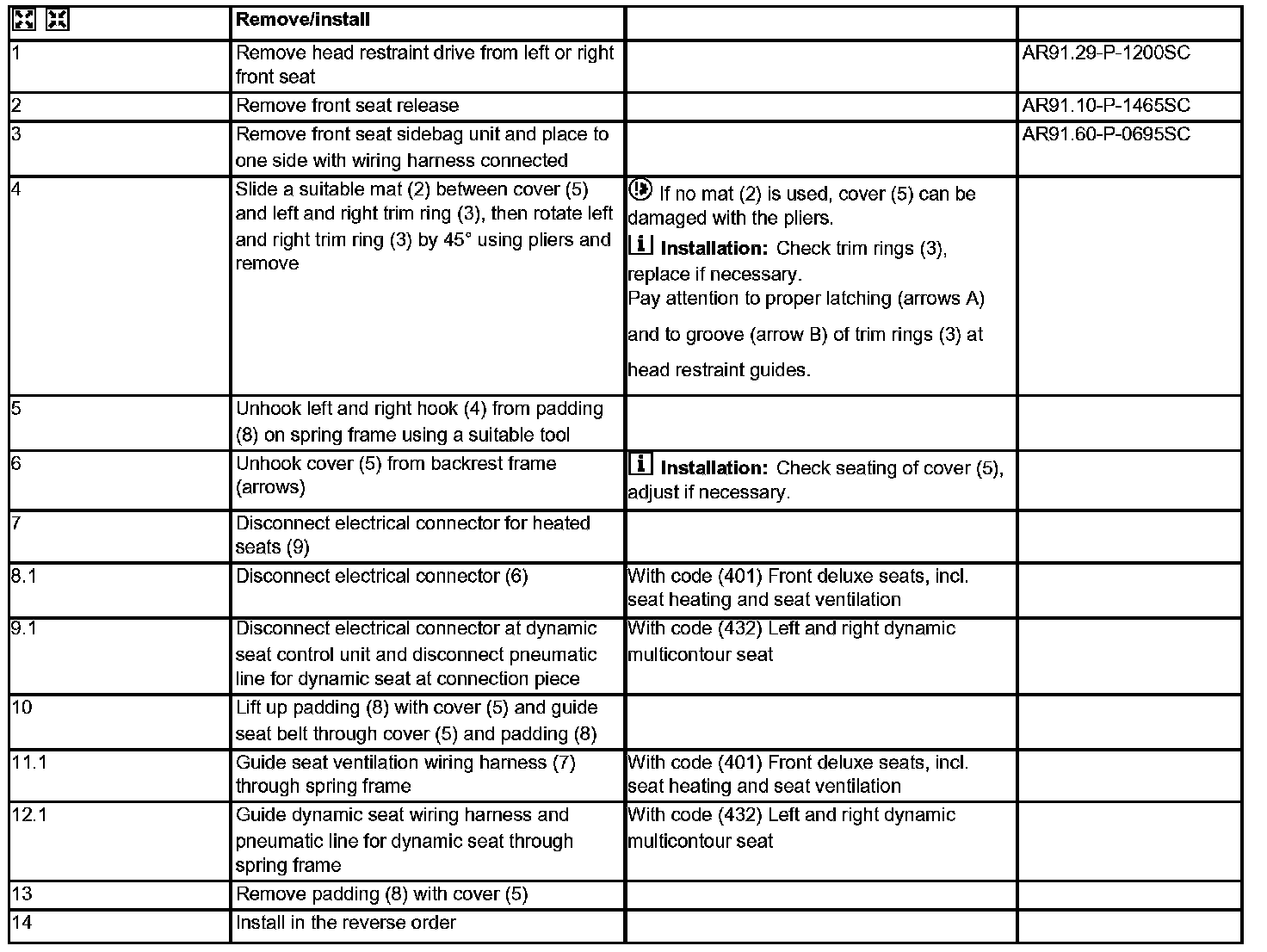

Steps 1-14:
