AR91.29-P-1422SCS Remove/Install Seat Cushion Motor For Front Seat



AR91.29-P-1422SCS Remove/install Seat Cushion Motor For Front Seat
- Seat cushion fore/aft motor

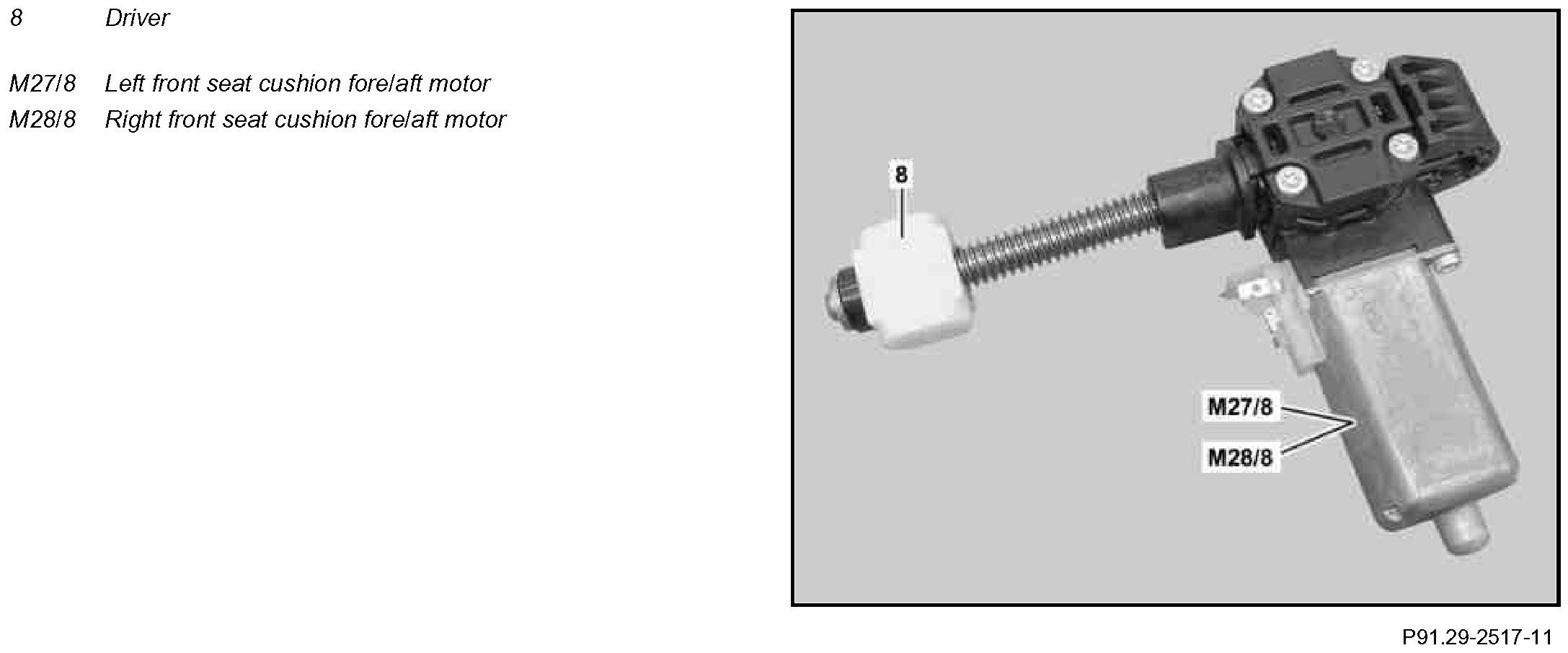

Component Identification:

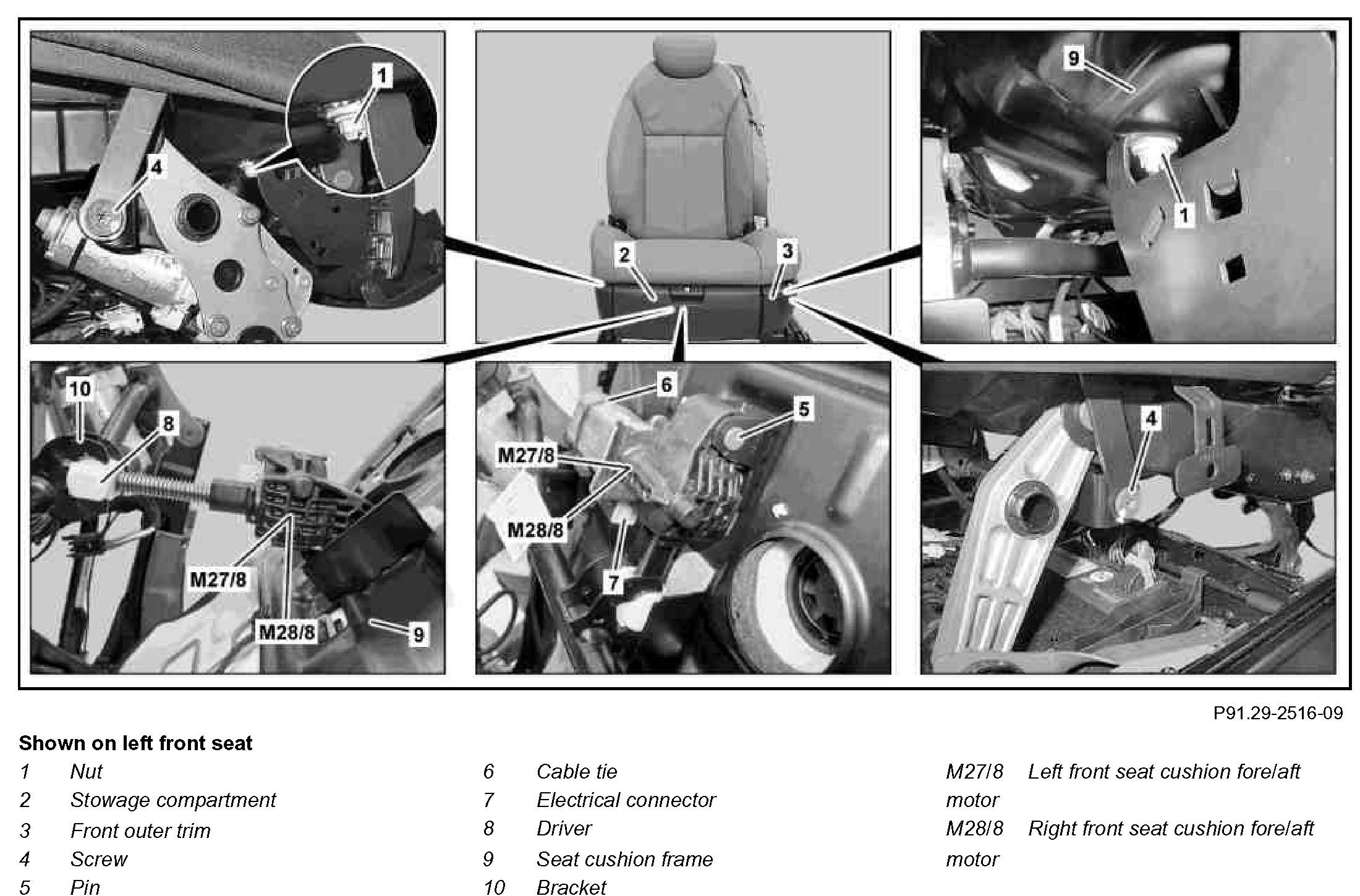

Component Identification:

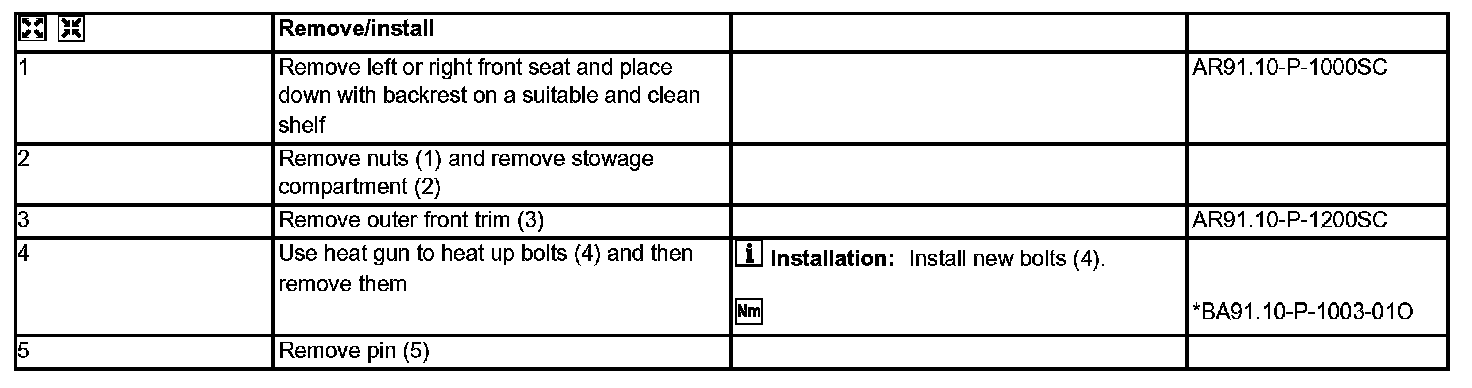

Steps 1-5:

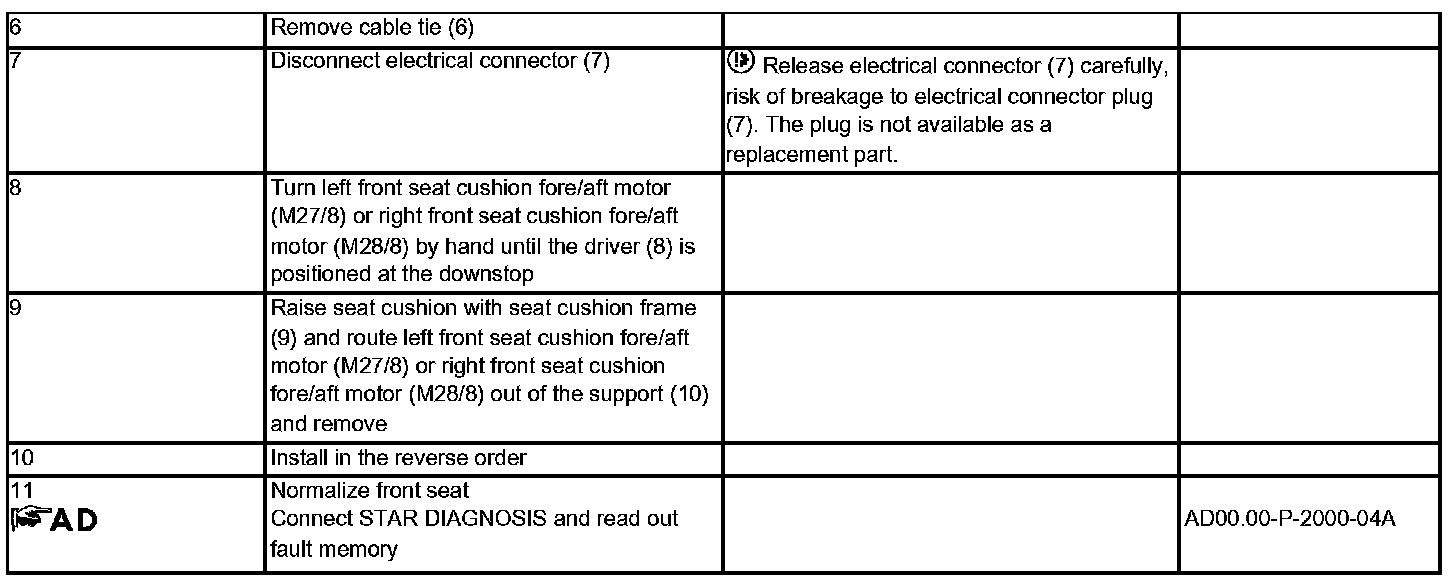

Steps 6-11:

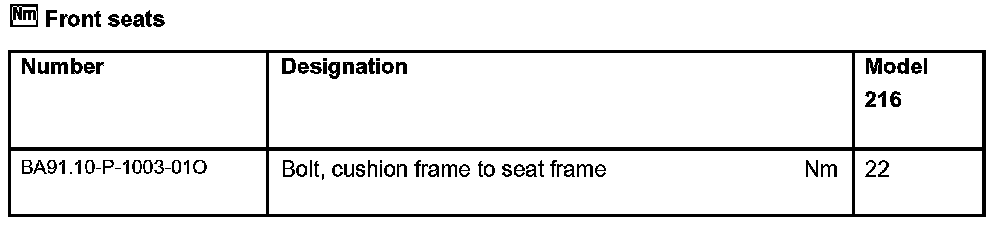

Front Seats:
